System Map: Left View

3
1
2
4
1 6
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices. Make sure
you install the Firewire IEEE 1394 driver (see page
Model A
5
4
Model B
3 2
7-in-1 Card Reader
Mini-IEEE 1394 Port
4 - 6).
5
System Map: Left View 1 - 13
Quick Start Guide
Figure 1 - 5

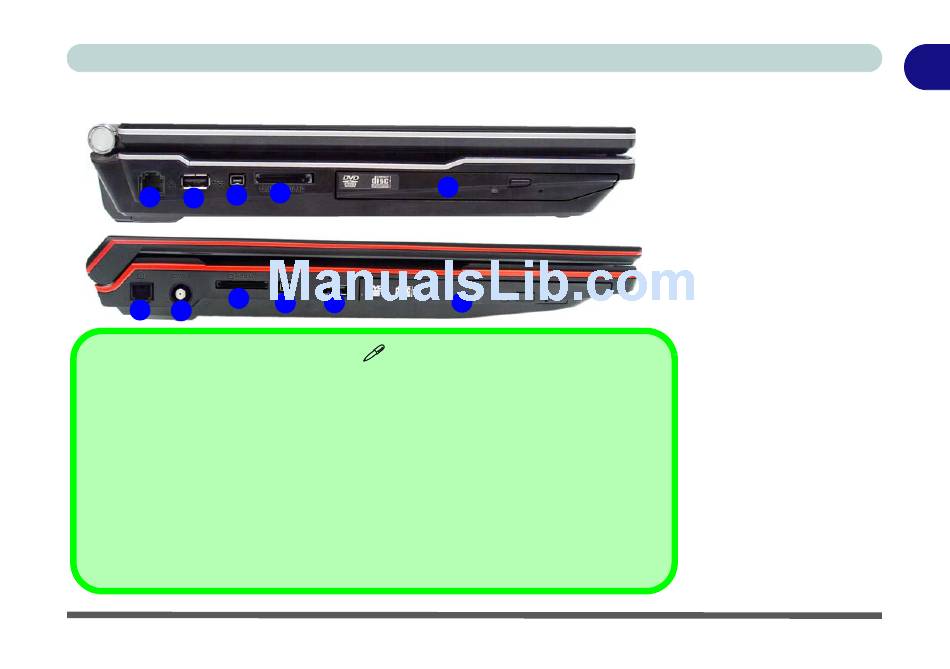

Left View
1. RJ-11 Modem Jack
2. USB 2.0 Port
3. Mini-IEEE 1394
Port
4. 7-in-1 Card Reader
5. Optical Device
Drive Bay (for DVD
Device)
6. Cable (CATV)
*
Antenna Jack
*Enabled with Optional TV
Tuner Only
1
