Disassembly

Removing the System Memory (RAM)

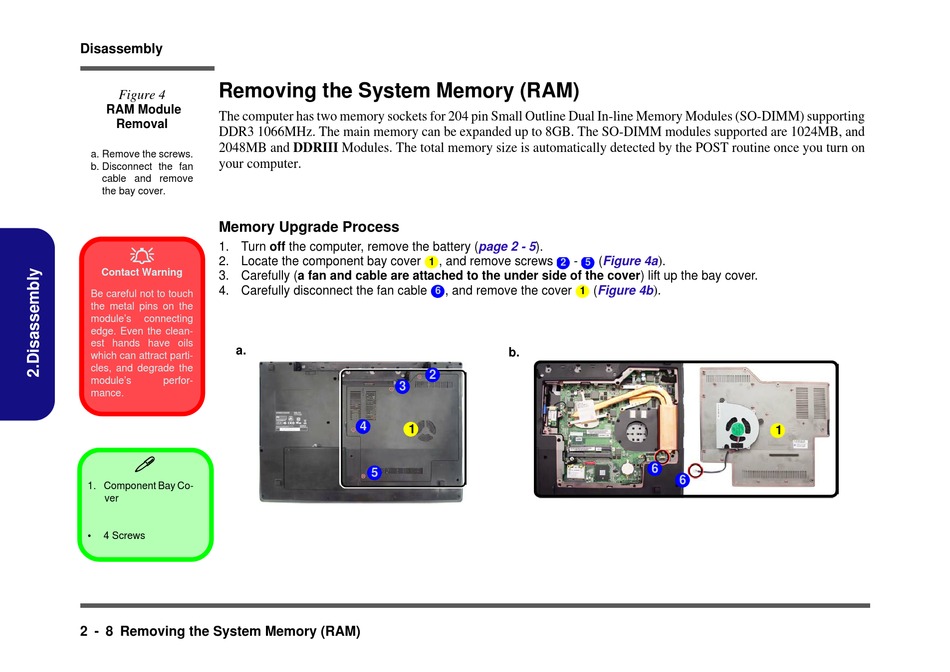

Figure 4
RAM Module
The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
Removal
DDR3 1066MHz. The main memory can be expanded up to 8GB. The SO-DIMM modules supported are 1024MB, and
2048MB and DDRIII Modules. The total memory size is automatically detected by the POST routine once you turn on
a. Remove the screws.
your computer.
b. Disconnect the fan
cable and remove
the bay cover.
Memory Upgrade Process
1. Turn off the computer, remove the battery

2. Locate the component bay cover
Contact Warning
3. Carefully (a fan and cable are attached to the under side of the cover) lift up the bay cover.
4. Carefully disconnect the fan cable
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
a.
which can attract parti-
cles, and degrade the
module's perfor-
mance.

1. Component Bay Co-
ver
• 4 Screws
2 - 8 Removing the System Memory (RAM)
(page 2 - 5).
, and remove screws
1
, and remove the cover
6
b.
2
3
4
1
5
)
- (Figure 4a .
2 5
(Figure 4b ).
1
6
6
1
