Disassembly

Removing the Optical (CD/DVD) Device

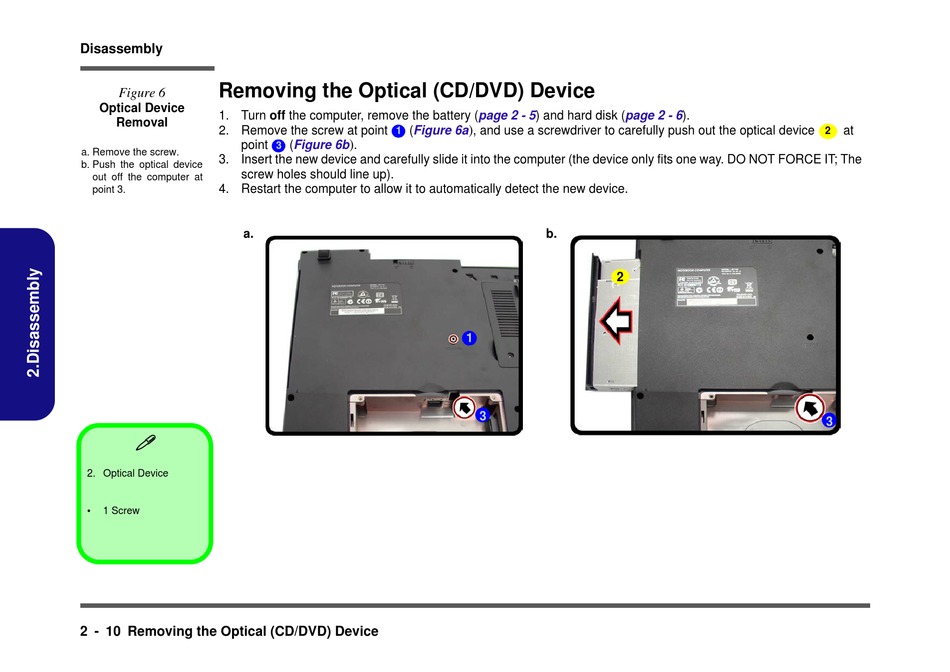

Figure 6
Optical Device
1. Turn off the computer, remove the battery
Removal
2. Remove the screw at point
point
a. Remove the screw.
3. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
b. Push the optical device
screw holes should line up).
out off the computer at
4. Restart the computer to allow it to automatically detect the new device.
point 3.
