EUROCOM B7110 Service Manual page 37

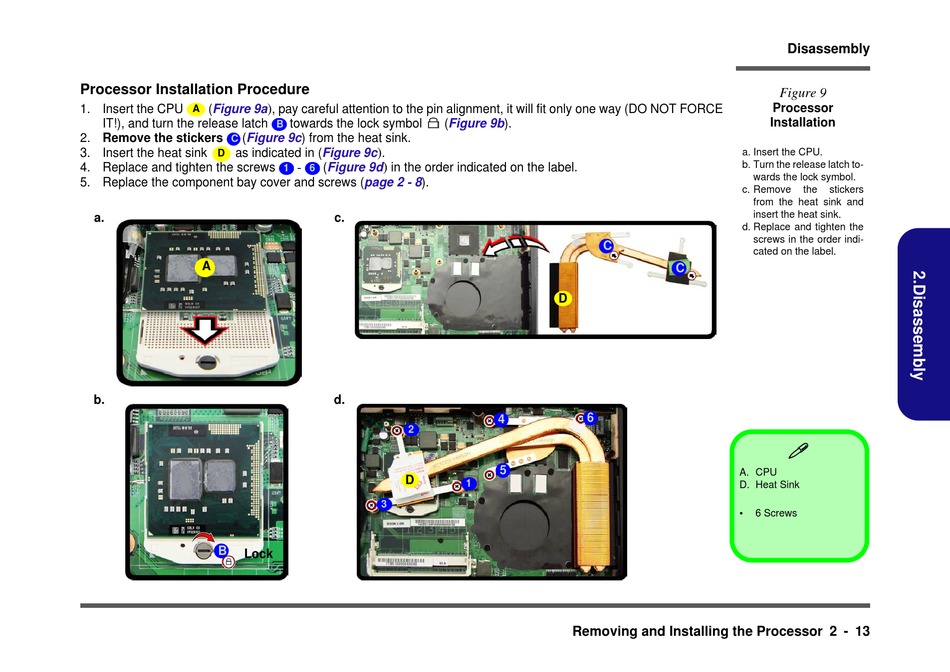

Processor Installation Procedure
1. Insert the CPU (Figure 9a
A
IT!), and turn the release latch
2. Remove the stickers (Figure
C
3. Insert the heat sink as indicated in
D
4. Replace and tighten the screws
5. Replace the component bay cover and screws
a.
A
b.
B
Lock
) , pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE
towards the lock symbol (Figure
B
9c) from the heat sink.
(Figure 9c ) .
- (Figure 9d ) in the order indicated on the label
1 6
(page 2 - 8).
c.
d.
2
D
3
9b).
.
C
D
6
4
5
1
Removing and Installing the Processor 2 - 13
Disassembly
Figure 9
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the stickers
from the heat sink and
insert the heat sink.
d. Replace and tighten the
screws in the order indi-
cated on the label.
C

A. CPU
D. Heat Sink
• 6 Screws
