EUROCOM B7110 Service Manual page 36

Disassembly

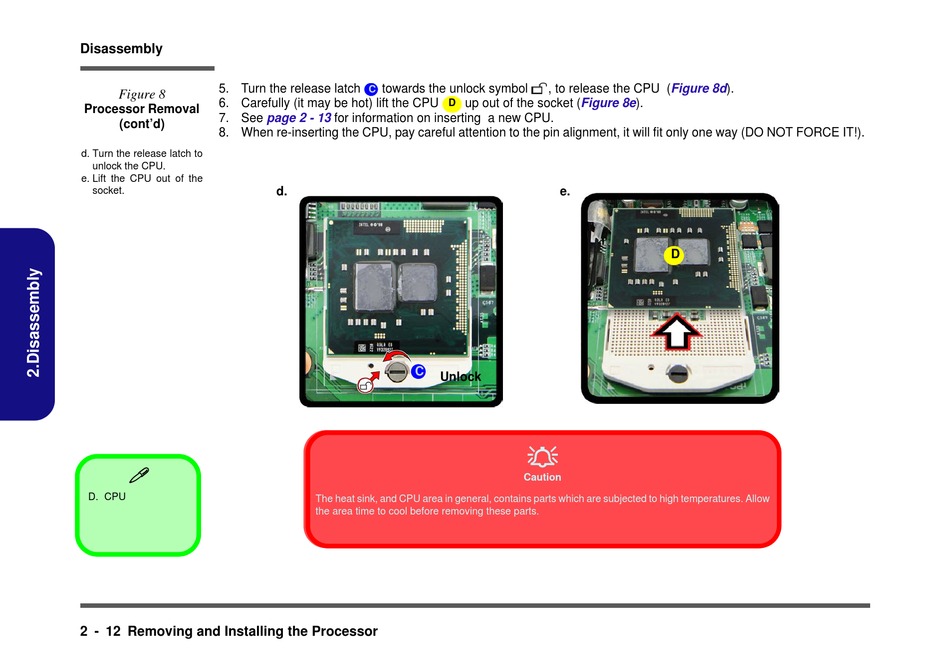

5. Turn the release latch
Figure 8
6. Carefully (it may be hot) lift the CPU
Processor Removal
7. See
(cont'd)
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.

D. CPU
2 - 12 Removing and Installing the Processor
towards the unlock symbol
C
page 2 - 13 for information on inserting a new CPU.
d.
C
Unlock
The heat sink, and CPU area in general, contains parts which are subjected to high temperatures. Allow
the area time to cool before removing these parts.
, to release the CPU
D up out of the socket (Figure 8e).
e.

Caution
(Figure 8d).
D
