3. Remove the hard disk bay cover
4. Grip the mylar cover and slide the hard disk in the direction of arrow
5. Lift the hard disk out of the bay
5
6. Remove the screws - and the adhesive mylar cover
7 10
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
b.
3
c.
4
(Figure 3b ).
3
6
(Figure 3d ) .
6
from the hard disk
11
d.
6
5
).
(Figure 3c
4
5 (Figure 3e ) .
e.
10
9
11
7
5

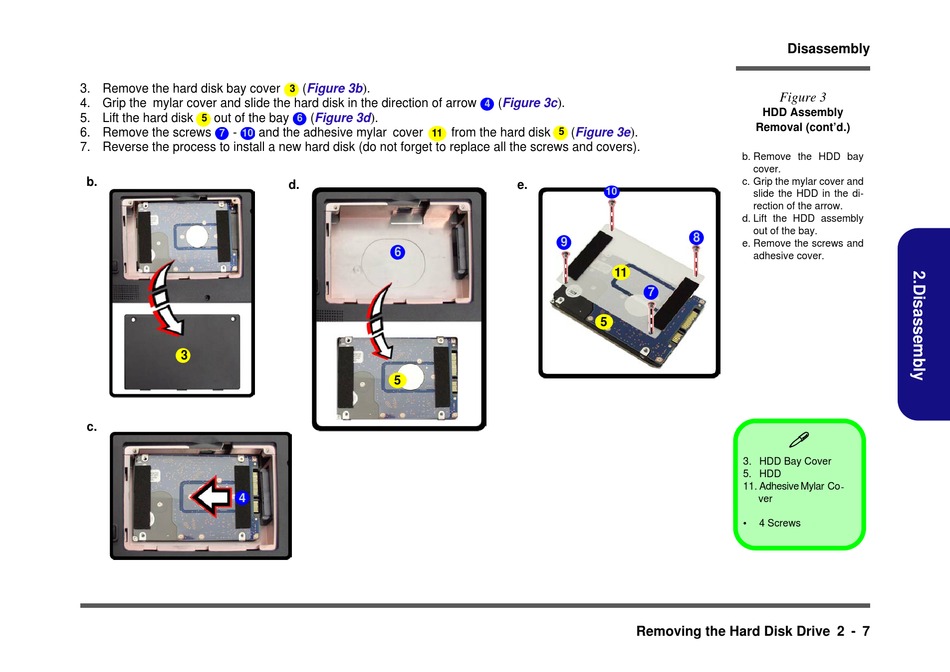

Removing the Hard Disk Drive 2 - 7
Disassembly
Figure 3
HDD Assembly
Removal (cont'd.)
b. Remove the HDD bay
cover.
c. Grip the mylar cover and
slide the HDD in the di-
rection of the arrow.
d. Lift the HDD assembly
out of the bay.
8
e. Remove the screws and
adhesive cover.

3. HDD Bay Cover
5. HDD
11. Adhesive Mylar Co-
ver
• 4 Screws
