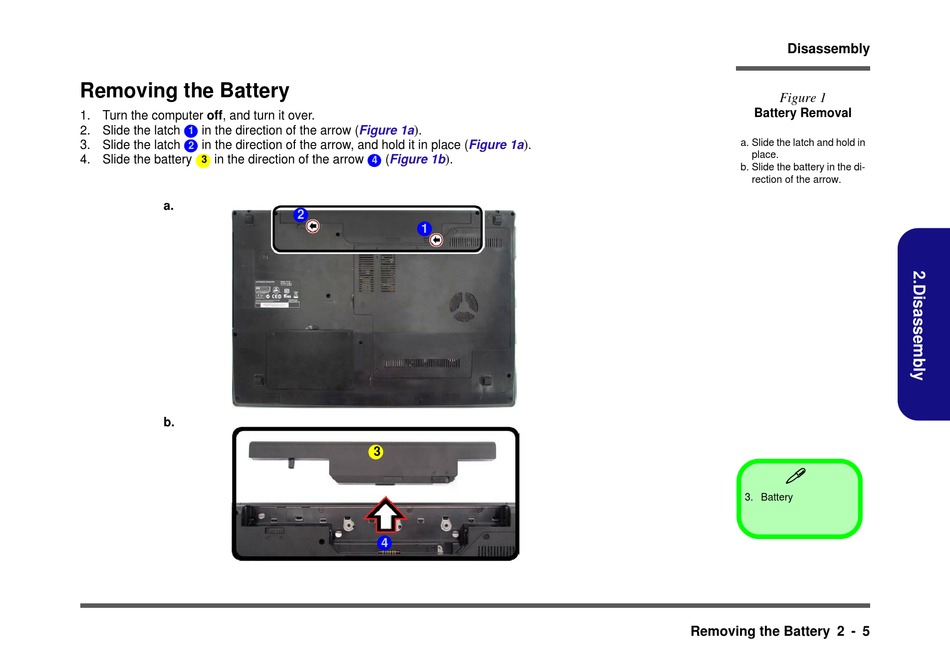

Removing the Battery

1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow
1
3. Slide the latch in the direction of the arrow, and hold it in place
2
4. Slide the battery in the direction of the arrow
3
6
a.
b.
)
(Figure 1a .
(Figure 1a
(Figure 1b ) .
4
2
1
3
4
) .
Removing the Battery 2 - 5
Disassembly
Figure 1
Battery Removal
a. Slide the latch and hold in
place.
b. Slide the battery in the di-
rection of the arrow.

3. Battery
