B7110 K/B Switch Board - EUROCOM B7110 Service Manual

B7110 K/B Switch Board

KJ_KB3
85201-24051
4
K_KB-SI0
5
K_KB-SI1
6
K_KB-SI2
8
K_KB-SI3
11
K_KB-SI4
12
K_KB-SI5
K_KB-SI6 14
15
K_KB-SI7
1
K_KB-SO0
2
K_KB-SO1
3
K_KB-SO2
7
K_KB-SO3
9
K_KB-SO4
10
K_KB-SO5
13
K_KB-SO6
16
K_KB-SO7
17
K_KB-SO8
18
K_KB-SO9
19
K_KB-SO10
20
K_KB-SO11
K_KB-SO12 21
22
K_KB-SO13
23
K_KB-SO14
24
K_KB-SO15
KH1 KH2 KH3
H4_0D2_0 H4_0D2_0 H6_0D2_3
KH4 KH5 KH6
H6_0D2_3 H6_0D2_3 H6_0D2_3
KJ_KB4
85201-24051
4
K_KB-SI0
5
K_KB-SI1
6
K_KB-SI2
8
K_KB-SI3
11
K_KB-SI4
12
K_KB-SI5
K_KB-SI6 14
15
K_KB-SI7
1
K_KB-SO0
2
K_KB-SO1
3
K_KB-SO2
7
K_KB-SO3
9
K_KB-SO4
10
K_KB-SO5
13
K_KB-SO6
16
K_KB-SO7
17
K_KB-SO8
18
K_KB-SO9
19
K_KB-SO10
20
K_KB-SO11
K_KB-SO12 21
22
K_KB-SO13
23
K_KB-SO14
24
K_KB-SO15
B7110 K/B Switch Board B - 53

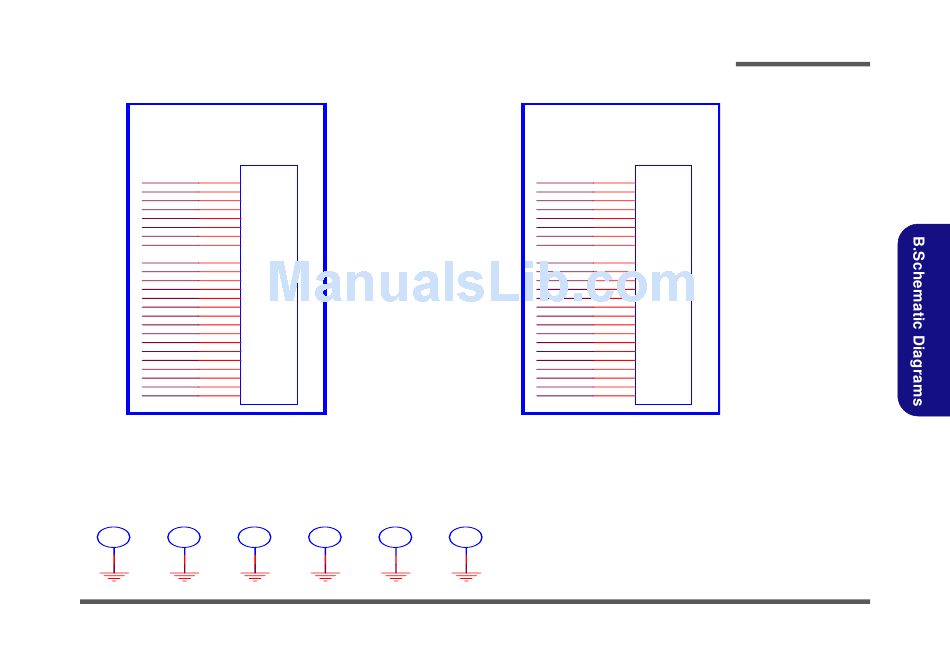

Schematic Diagrams
Sheet 52 of 53
B7110 K/B Switch
Board
