Mainboard Overview - Bottom (Connectors)

1
2
8
7
6
4 5
3
Mainboard Overview - Bottom (Connectors) 1 - 11
Introduction

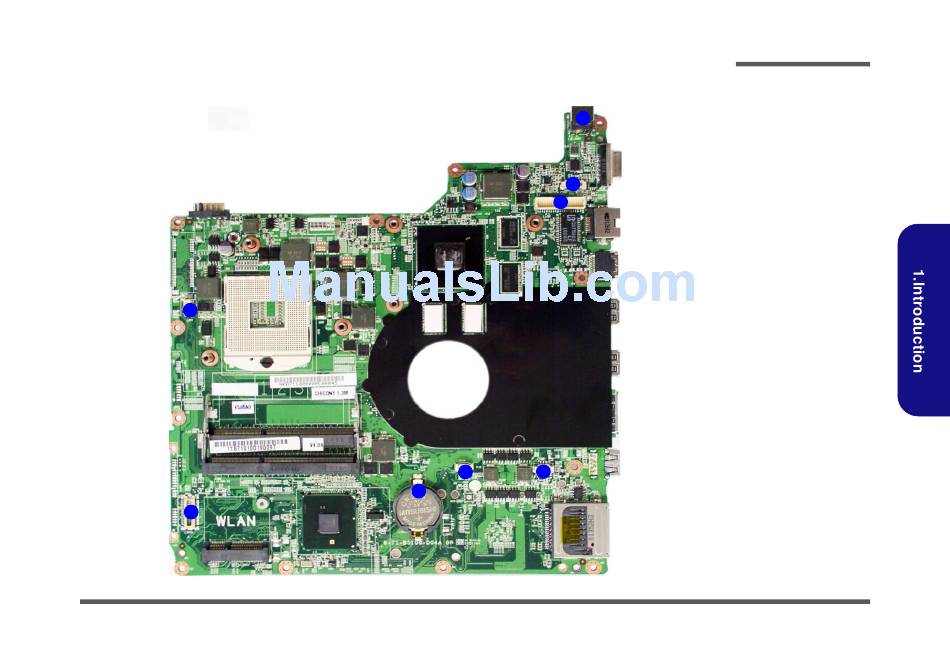

Figure 10
Mainboard Bottom
Connectors
1. Bluetooth Cable

Connector

2. HDD & ODD
Connector
3. CMOS Battery
Connector
4. Speaker Cable
Connector
5. CPU Fan Cable
Connector
6. LCD Cable
Connector
7. CCD Cable
Connector
8. DC-In Jack
