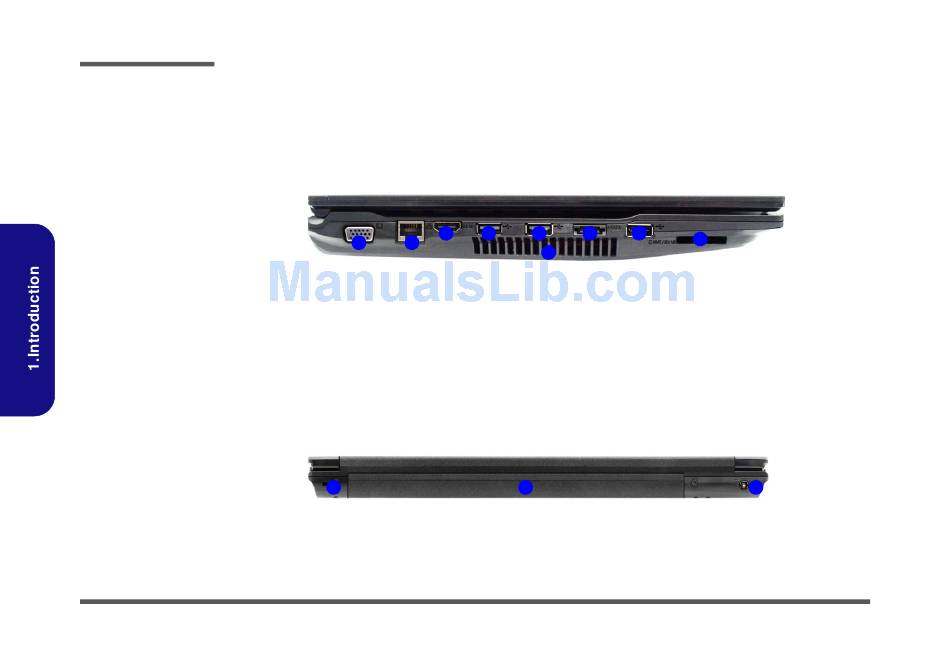

External Locator - Left Side & Rear View
Figure 4
Left Side View
1. External Monitor
Port
/
2. RJ-45 LAN Jack
3. HDMI-Out Port
4. 2 * USB 2.0 Ports
5. Vent
6. eSATA Port
7. USB 3.0 Port or
USB 2.0 Port
(Note: It depends
on your purchase
confirguration)
8. 9-in-1 Card
Reader
Figure 5
Rear View
1. Security Lock Slot
2. Battery
3. DC-In Jack
1 - 6 External Locator - Left Side & Rear View
