Talkback

Comms : Talkback
Tbk>MonD
Tbk>MonC
Talkback to
Mon A, B,
C, or D
Tbk>MonB
Tbk>MonA
Talkback to
Mon A, B,
Tbk>Mons
C, and D
Main
Panel
Talk Lsn OscSlt
Displays Talkback, Listenback,
or Oscillator/Slate Panels
Monitors
Tbk1 and Tbk2 (if Tbk2 On is lit) can be routed to Mon A–D by pressing the
Tbk>MonX keys on the left of the Comms:Talkback Panel. These keys are momentary
unless Tbk Ltch is active, in which case they can be toggled on/off each time they are
pressed. More than one monitor can be active by pressing multiple keys and all can be
active by pressing the Tbk>Mons key.
Talkback is not routed to the Control Room speakers but the Main CR speaker and the
monitors receiving talkback are dimmed by the level set for the DIM key (see Dim and
Cut on page 59).
Set the Tbk1 level by activating the Tbk1 xx.x key and using the +/- soft keys to adjust
the level. Use the same process for Tbk2.
Tbk1 -5.00
Tbk1 and
Tbk2 levels
Tbk2 -10.0
Tbk2 On Tbk2 On/Off
Tbk Ltch Tbk Latch
Off = Tbk>Mon keys
are momentary .
On = Tbk>Mon keys
latch and stay on
Aux
Info
Displays Talkback : Aux Panel
to set talkback to Aux buses
+

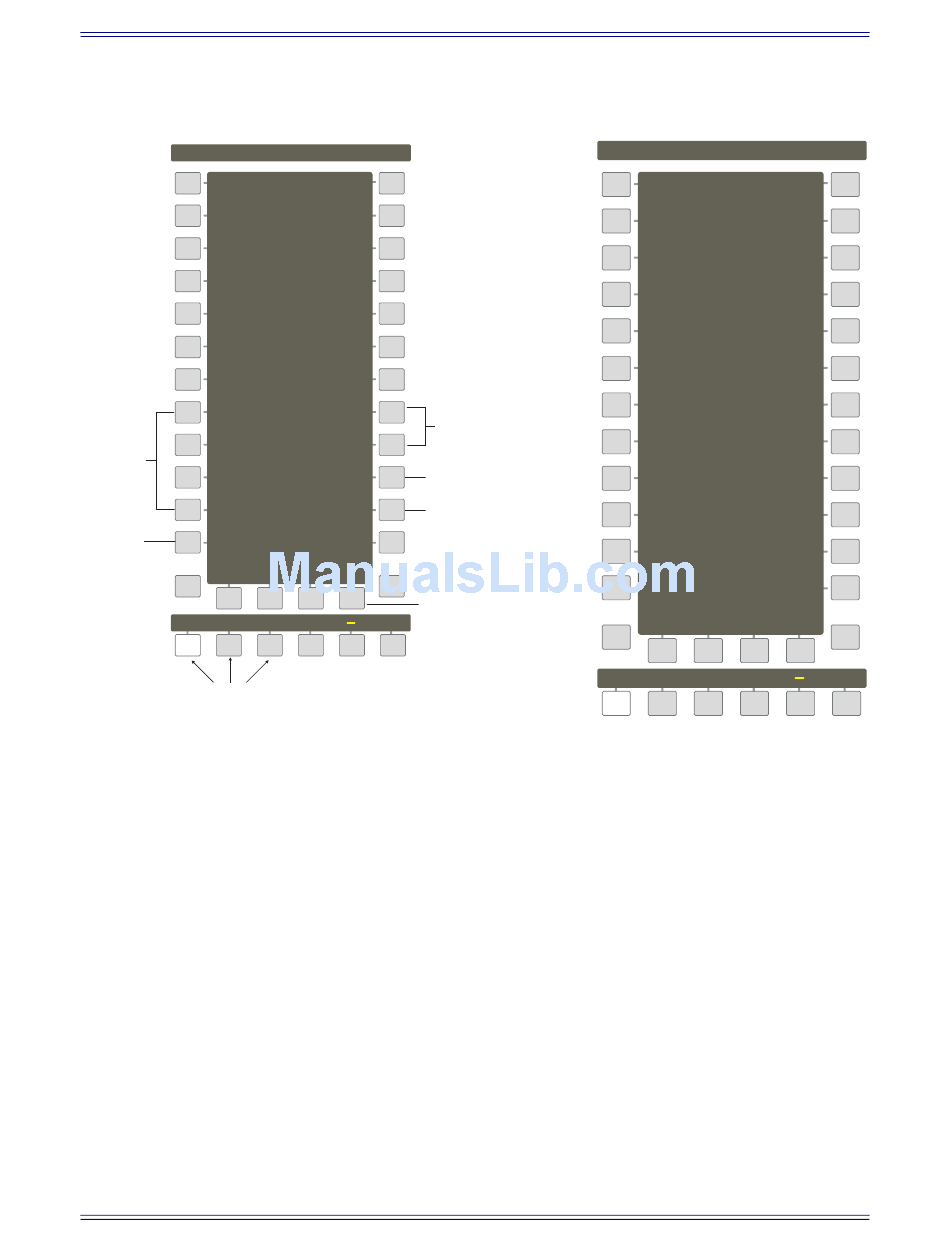

Figure 5-5 Comms:Talkback Panels
