System 5-B Digital Audio Mixing System Operation Manual
5.1.1

Monitor Source Selection

The sources for Mon A–D and Control Room outputs are selected using the Panel
Viewer. Press the Mon A–D or CR Source buttons to display available sources
(Figure 5-3 shows the Mon D Source Panel).
VTR 1
Mon D
Sour c e
CD
Mon C
Sour c e
VTR 2
Mon B
Sour c e
Mix 2
Mon A
Sour c e
Solo
L4
Solo
L3
Ctrl
L2
L1
Comms
T2
Ctrl
T1
CR
LR phase
Output
L R
C Sl Sr B X Y
085
Mix 1
CR
Sour c e
Main
Spkrs
Alt1
Spkrs
Control Room
Alt2
Spkrs
Dim Cut
CR
Insert
Comms T alk Listen Slate / Osc
Use the keys on the bottom of the Panel to select the type of source: External (CD, VTR,
etc.), Aux Sends, or Main Sections. The current source type key lights and available
sources within that type appear in the Panel. Press a key along the sides of the Panel to
select a source. The active source key lights and the name appears in the LCD display
above the Mon A–D Source button.

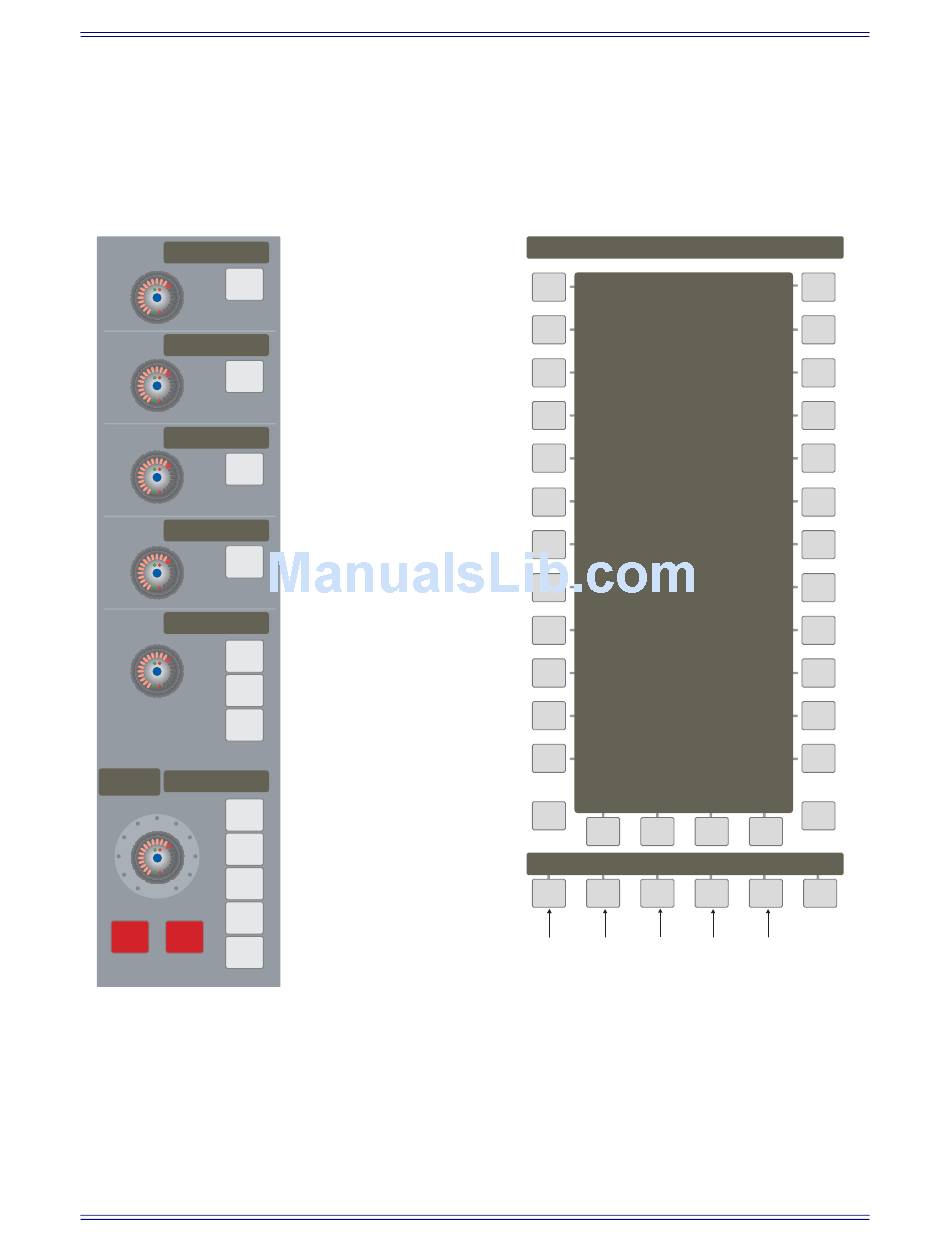

Figure 5-3 Monitor Controls and MonD Source Panel
MonD Source : Ext
Stereo 1
Stereo 2
DAT 1
DAT 2
DVD
Satell
Page
Main
Panel
Ext Aux
External External Aux
Sections
Sources Sends
57
CM401 Master Section
8 Track 1
8 Track 2
Receive
VTR 1
VTR 2
CD
Info
Σ
Mix FlwCR
Mix
Follow Sum
Control Sources
Room
Selection
