System 5-B Digital Audio Mixing System Operation Manual
3. Select Mic1-1–Mic1-12 from the Mic-Line column by clicking and dragging
through the cells.
These entries are highlighted in green in Figure 4-10. These sources appear in
the Sources column of the Selected: window below. If there were more than
24 sources, additional tabs would appear to the right of the 1–24 tab.
Select the Destinations
PatchNet allows connections to be made from:
• one source to one destination;
• an equal number of sources to destinations;
• one source to multiple destinations.
Multiple sources cannot be routed to one destination.

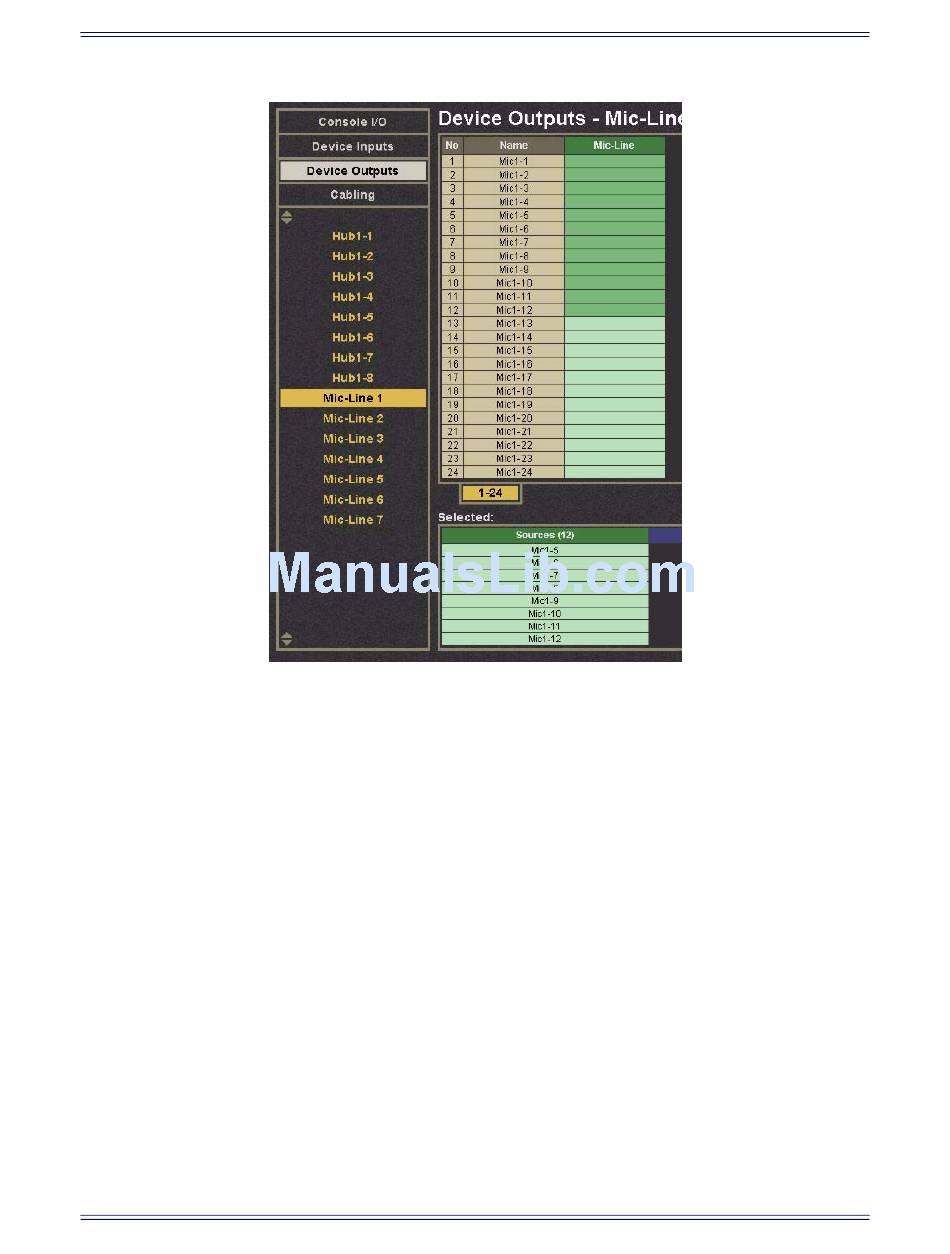

Figure 4-10 Device Outputs window
43
eMix Application
