Main Bus Routing

There are 16 Main Bus sections comprised of individual busses in a defined pan format.
For example, one section with a stereo format uses two busses, another section with a
5.1 format uses six busses. See Busses on page 48 for main section setup. The CM401
master section has bus master functions (see Chapter 7: Busses and Bus Masters).
Route a Channel to a Main Section
Main Sections
H
Assign
Section H
G
Assign
Section G
F
Assign
Section F
E
Assign
Section E
D
Assign
Section D
C
Assign
Section C
B
Assign
Section B
A
Assign
Section A
cfg
Copy
Expand Section
Expand Section
Expand Section
Expand Section
Expand Section
Expand Section
Expand Section
Expand Section
Paste

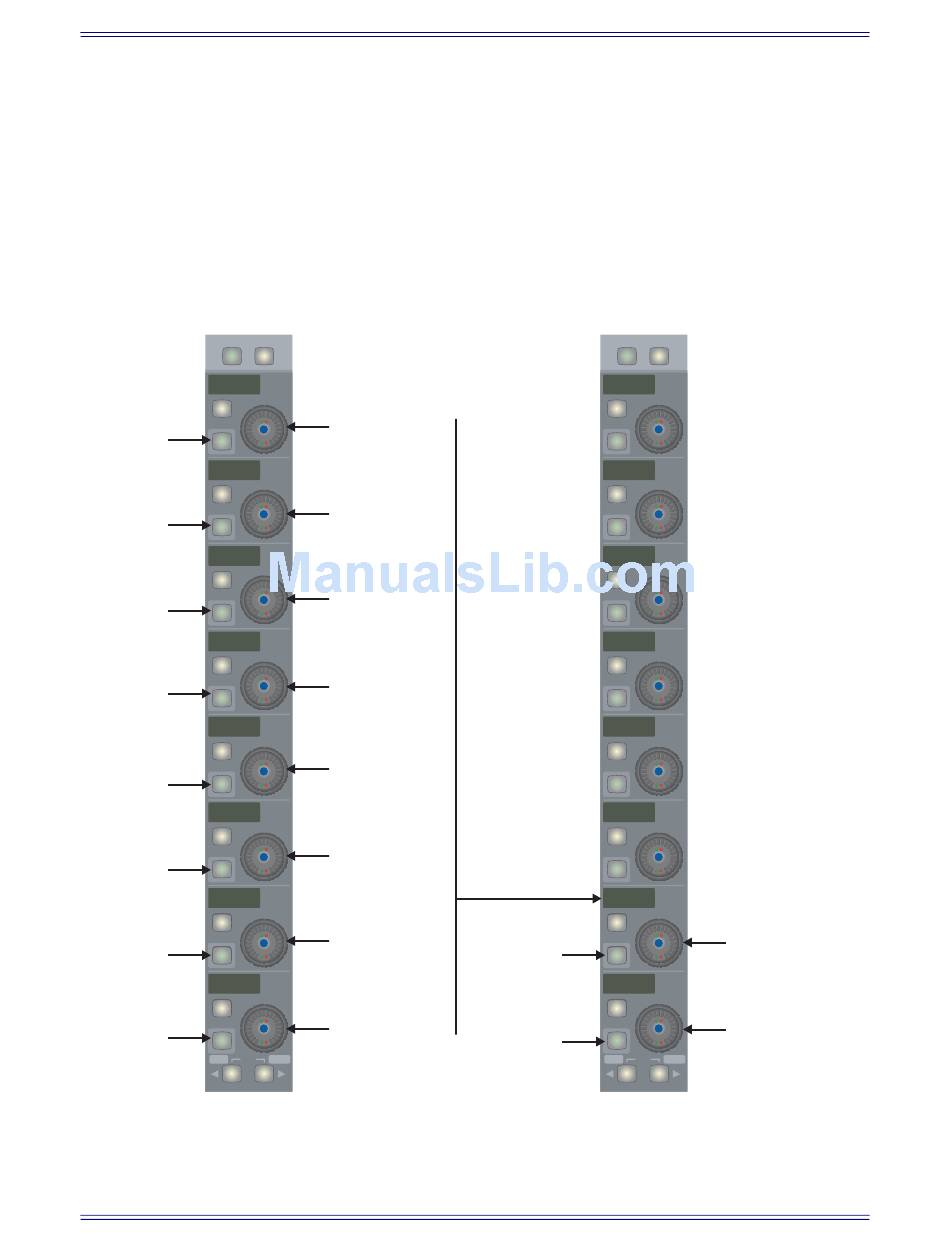

Figure 8-19 Main Section Routing Knobset
Main Busses
R S t
Assign R
L S t
Assign L
cfg
Copy
119
Channels and Strips
To Main Sections
To Main Sections
Paste
