System 5-B Digital Audio Mixing System Operation Manual
Clear
Selects individual
sections from this
Main Bus
Turns Main
Bus on/off

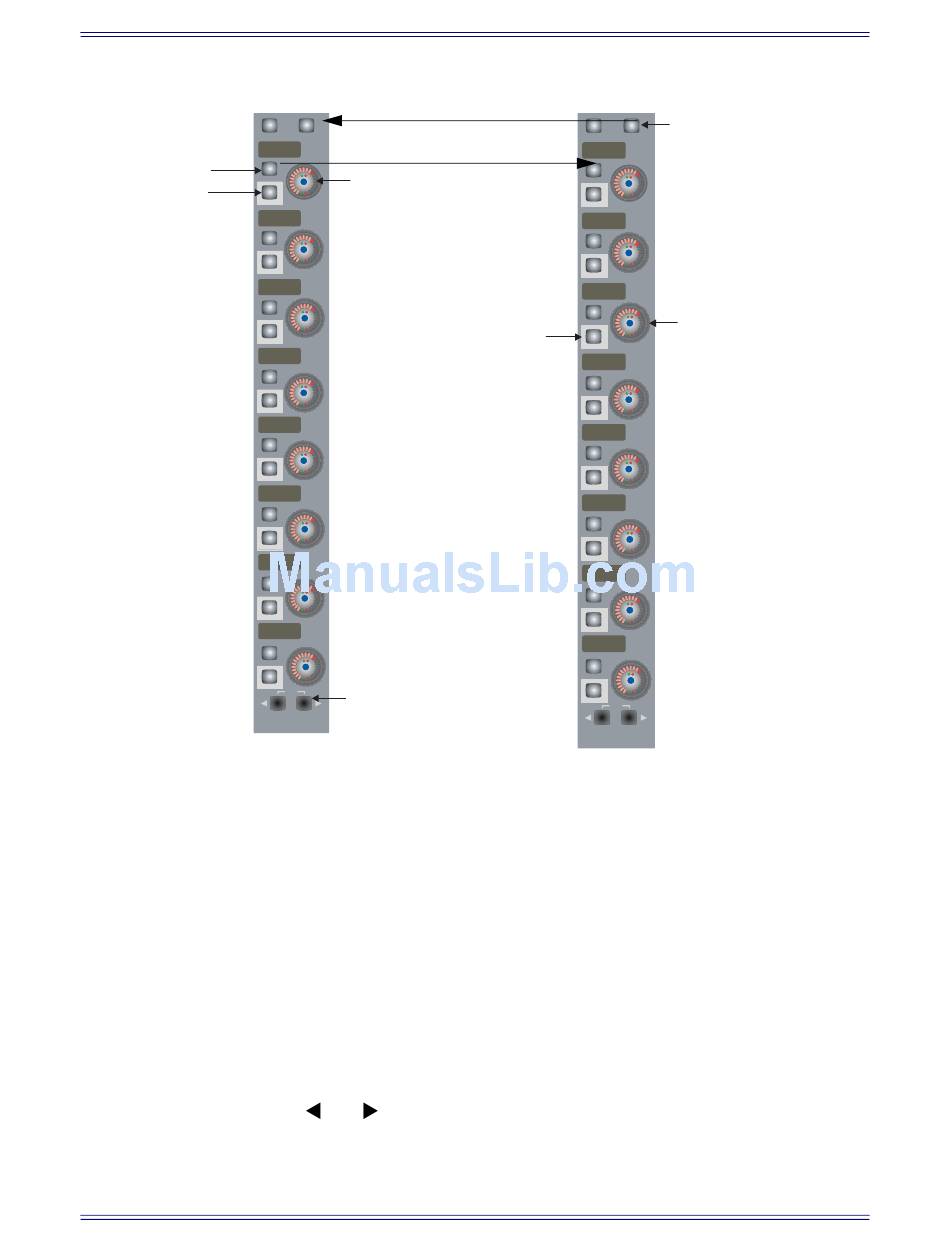

Figure 7-2 Main Bus Master (left) and Individual Bus (right) Displays
The left side of Figure 7-2 shows the Main Bus Master display after pressing the Main
Mstrs button (or the top-right knobset function key next to Clear). The important func-
tions are summarized below:
• Press the upper of the two buttons to the left of each knob to display the indi-
vidual busses for that Main section.
• Adjust the knob to control the overall level of that Main section.
• Press a knob to display individual section meters on the TFT screen.
• Press the lower of the two buttons to the left of each knob to turn that Main sec-
tion On/Off. All individual bus parameters are retained if the Bus is turned on
after being off.
• Use the
eight sections.
H
Adjusts Mix Bus
section level
G
F
E
D
C
B
A
cfg
Page Key
displays additional
Main bus Sections
(if more than 8)
and buttons to display additional pages if there are more than
Clear
Bm51
Turns bus
on/off
Sr48
Sl48
R 51
C 51
L 51
cfg
84
Busses and Bus Masters
Press this button
or the Main Mstrs
button to return
to Main Masters page
Adjusts the
bus level
