System 5-B Digital Audio Mixing System Operation Manual
6.1
Channel Select Panel
C 1
C 2
ON
ON
solo
solo
C 9
C 1 0
ON
ON
solo
solo
C 1 7
C 1 8
ON
ON
solo
solo
C 2 5
C 2 6
ON
ON
solo
solo
Number
Group
Master
The Channel Select Panel provides easy access to any channel or Control Group in the
System 5-B configuration. It defaults to displaying the first 32 channels, each with a
four-character LCD display, ON/Solo, and Channel Select keys.
•
The Page keys display additional channels in groups of 32. If the Scroll key is
lit, the Page keys display one new row of channels (eight) instead of 32.
•
The right key beneath each channel's LCD display assigns that channel or Con-
trol Group to the Center Strip, replacing the channel in the active layer (Swap
or Main). This key functions identically to a CM408 Strip's Wave key.
•
The Number key toggles between displaying the channel or Control Group
number (key is lit) and the name (key not lit).
•
The Group key toggles between displaying channels (key not lit) and Control
Groups (key is lit).
The global ON and Solo keys on the bottom of the panel determine whether the left key
on each channel's controls performs an On/Off or Solo function. The ON and Solo keys
cannot be lit simultaneously and intercancel:
•
If ON is lit, the key turns the Control Group or Channel On/Off.
•
If Solo is lit, the key Solos the Control Group or Channel.
•
If both are unlit, the key has no effect.
NOTE: The Wave key at the far right of the Channel Select Panel is not functional.
C 3
C 4
ON
ON
solo
solo
C 1 1
C 1 2
ON
ON
solo
solo
C 1 9
C 2 0
ON
ON
solo
solo
C 2 7
C 2 8
ON
ON
solo
solo
solo
ON
Strip
Copy
Paste

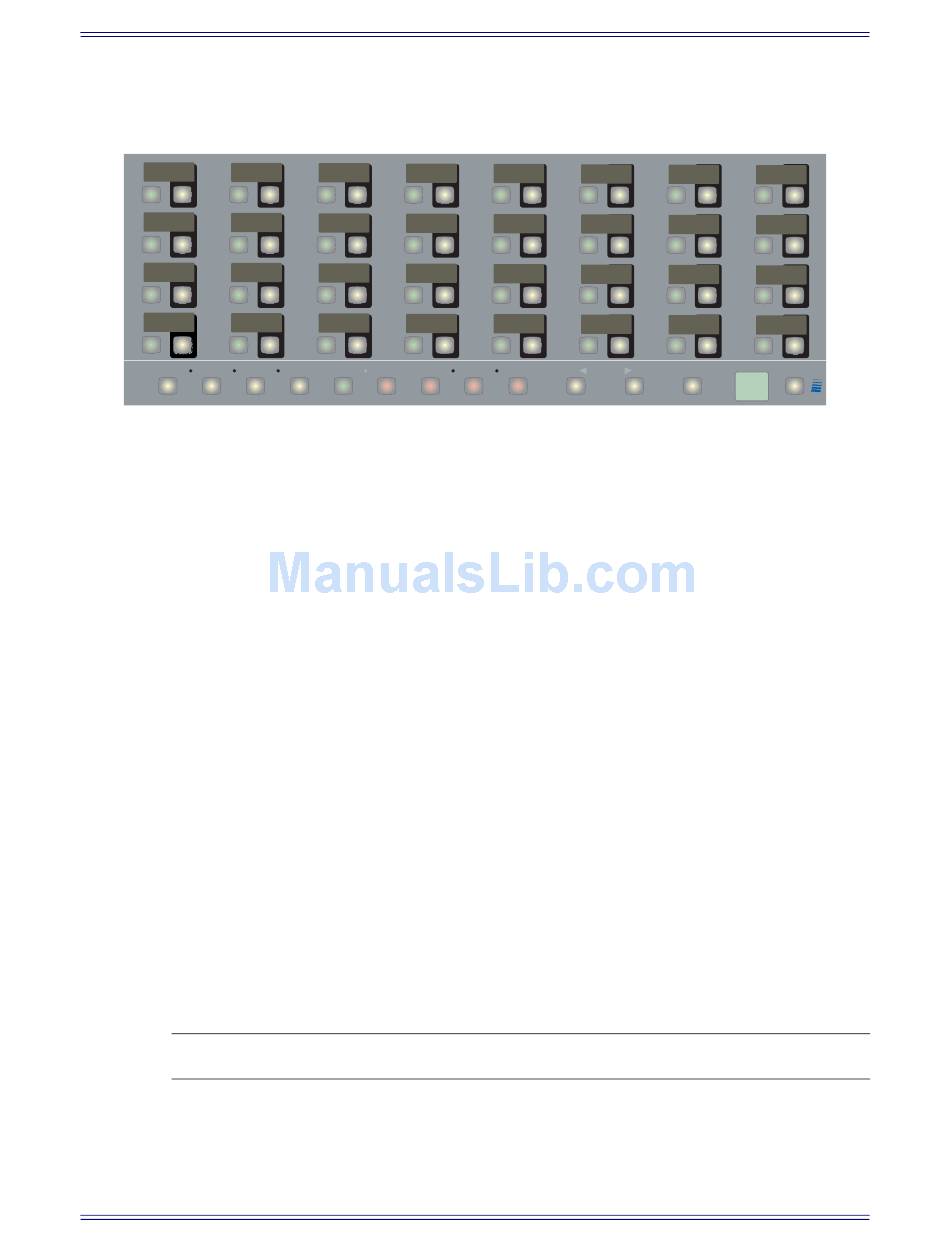

Figure 6-2 Channel Select Panel
77
C 5
C 6
ON
ON
ON
solo
solo
solo
C 1 3
C 1 4
ON
ON
ON
solo
solo
solo
C 2 1
C 2 2
ON
ON
ON
solo
solo
solo
C 2 9
C 3 0
ON
ON
ON
solo
solo
solo
Page
Clear
CM402 Center Section
C 7
C 8
ON
solo
C 1 5
C 1 6
ON
solo
C 2 3
C 2 4
ON
solo
C 3 1
C 3 2
ON
solo
Scroll
swap
mstrs
