System 5-B Digital Audio Mixing System Operation Manual
5.1
Monitoring
The System 5-B monitor system accommodates multi format outputs up to 7.1 chan-
nels. There are seven monitor outputs (Figure 5-2):
Control Room:
Main - 7.1 max
Alt1 - 5.1 max
Alt2 - stereo
Studio:
Monitor A - 7.1 max
Monitor B - stereo
Monitor C - stereo
Monitor D - stereo
Mon A, B, C, and D are used for SLS/Cue feeds.
Externals
Source selection for the monitor output can either intercancel (only one source to a
monitor output), or sum (multiple sources). The Control Room monitor outputs can be
folded down from their multichannel formats (see Folddown on page 51).
NOTE: Group bus outputs are normally monitored on the Strips but can be routed us-
ing external inputs and PatchNet if they require direct monitoring.
Mix Stems
Aux Snd s
Stem
Stem
Rtn
Monitor Selector

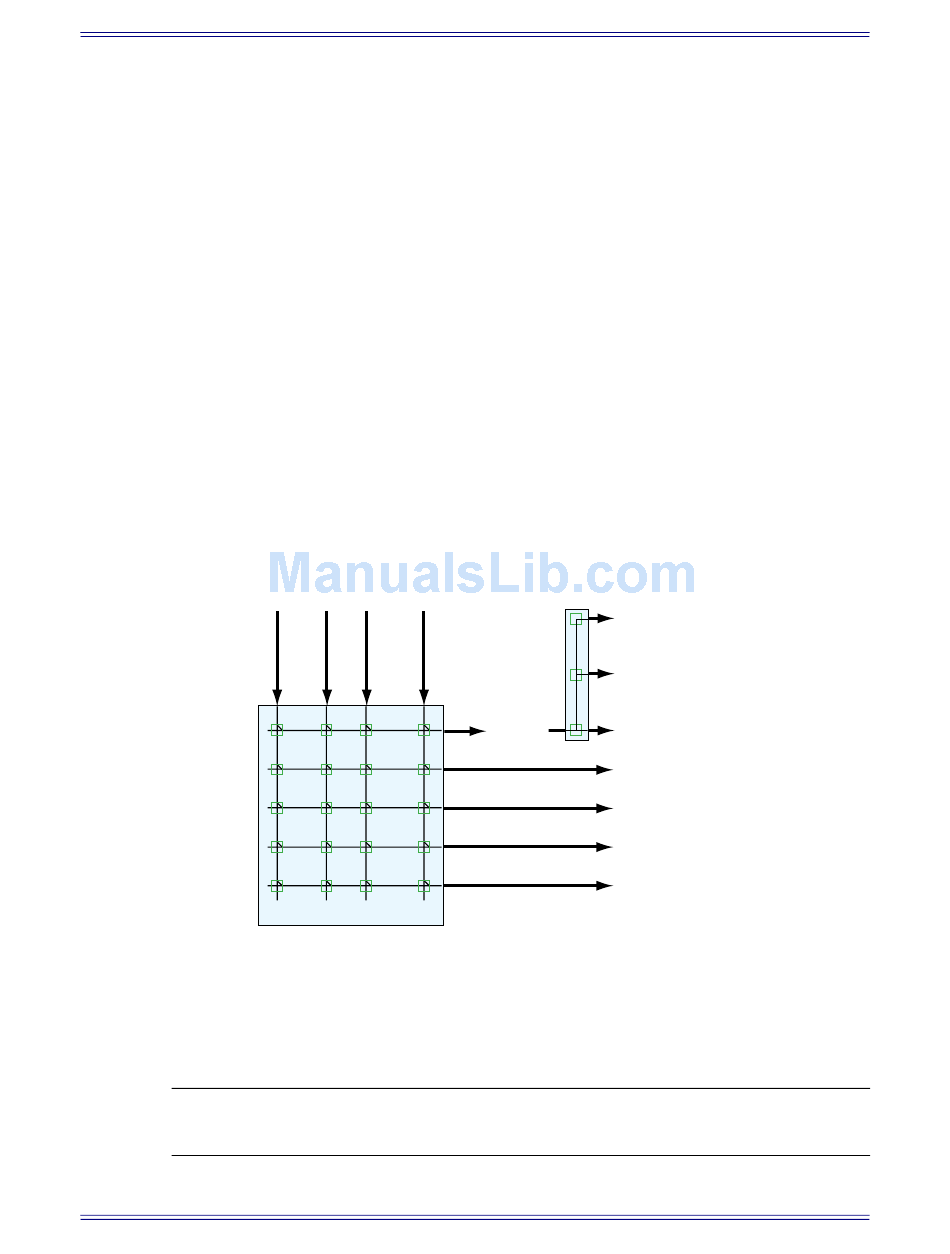

Figure 5-2 Monitoring Matrix
56
Main
8 Out (max 7.1)
Al t 1
6 Out (Max 5.1)
CR
Al t 2
Monitors
Stereo
8 Out (max 7.1)
Mon A
8 Out (max 7.1)
Mon B
Stereo
Mon C
Stereo
Mon D
Stereo
CM401 Master Section
