System 5-B Digital Audio Mixing System Operation Manual
8.4

Channel Process Order and Patch Points

The seven process functions can be placed in any order to suit different applications.
The default order is Delay, Metering, Insert, EQ, Filters, Dynamics, and Fader. The ten
patch points are A Input, B Input, Insert Send/Return, Pre-fader Output, Post-fader
Channel Output, Dynamics Key Input, Dynamics Side-Chain Link In/Out and Mix Mi-
nus Output (see Figure 8-15). All patching can be done from PatchNet (see Chapter 4:
eMix Application). The A, B, and Key channel inputs can be assigned from the Strip.
A
Trim & Phase
Input Select
Function
Function
Function
Function
Function
Function
Function
Function
To display the configuration controls for processor order and patch points:
1. Press the Input function key to assign the Input controls to the knobs.
2. Press both cfg
patching and processor order on the knobset.
The cfg keys flash in configuration mode.
3.
Use the
B
Channel Inputs
Any
Order
Delay
2 of 8
1 of 7
Meter
2 of 7
Insert
3 of 7
EQ
4 of 7
Filters
5 of 7
Key
DYN
Link
6 of 7
7 of 7
Fader
& Mute

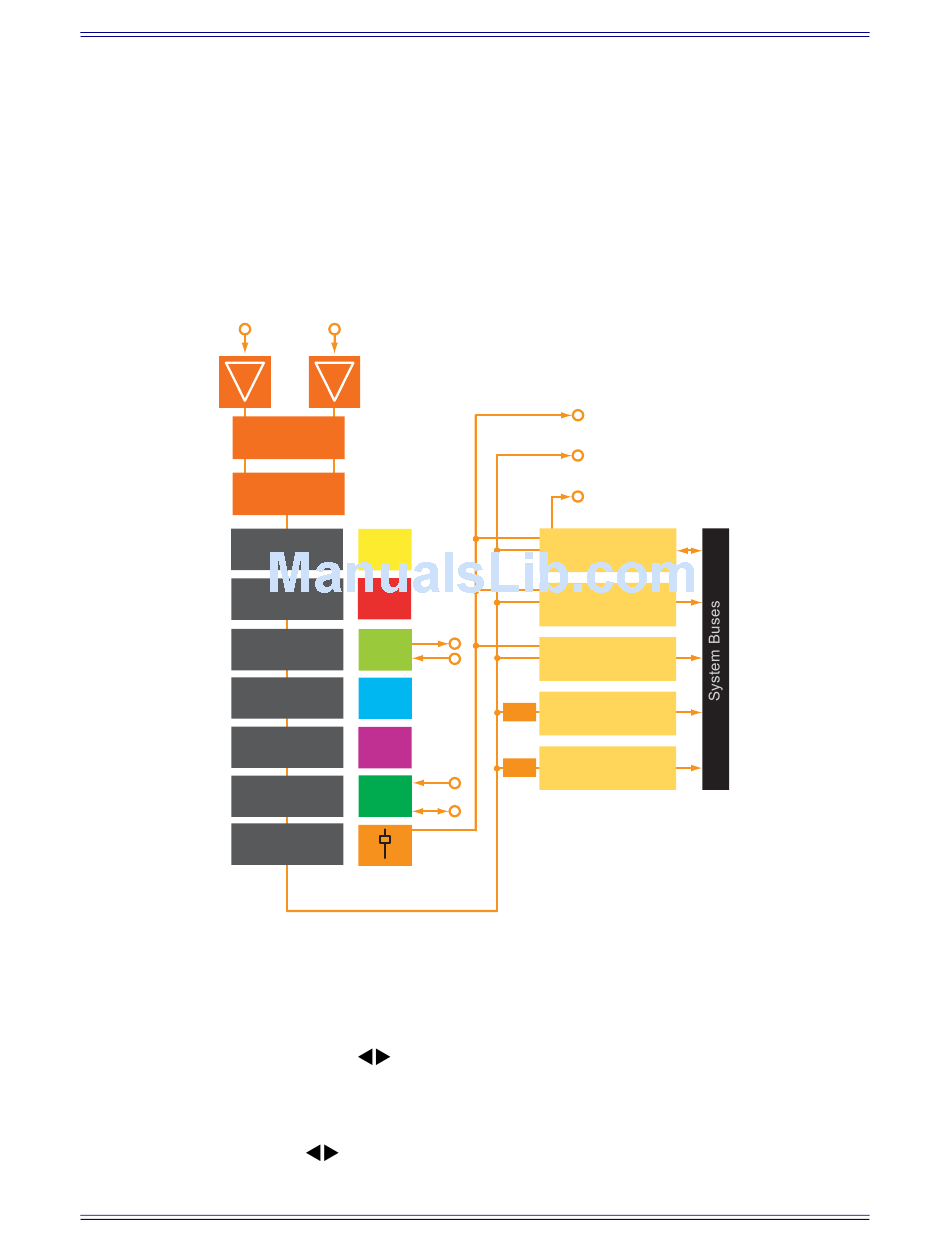

Figure 8-15 Channel processor order and patch points
keys simultaneously to display the configuration pages for
keys individually to display the two configuration pages.
.
Pre-Fader
Output
Channel Output
Mix Minus Output
Mix Minus
Processing
Solo
PFL/AFL
Aux
Sends
Group Busses
Pan
Matrix/Clean Feeds
Main Busses
Pan
Program/Sub Groups
114
Channels and Strips
