New Title Dialog - Euphonix System 5B Operation Manual

System 5-B Digital Audio Mixing System Operation Manual
Create a New Title
1. Click the Drives tab to see a list of available Drives.
2. Select the desired Drive and click the Projects tab or double-click the Drive.
The Projects Window appears with a list of Projects on that Drive.
3. Select a Project and click the Titles tab or double-click the Project.
The Titles Window appears with all Titles in that Project.
4. Click the New button along the right side of the Titles window.
The New Title dialog appears.
5. Name the new Title and select one of the Creation Options radio buttons:
• Save the current title and mix data into the new title: Uses the current state
of the console for the new Title (like Save As).
• Reset Console with Default Title settings: Uses settings from the Default Title
for the new Title. See page 36 to see how to change the default settings.

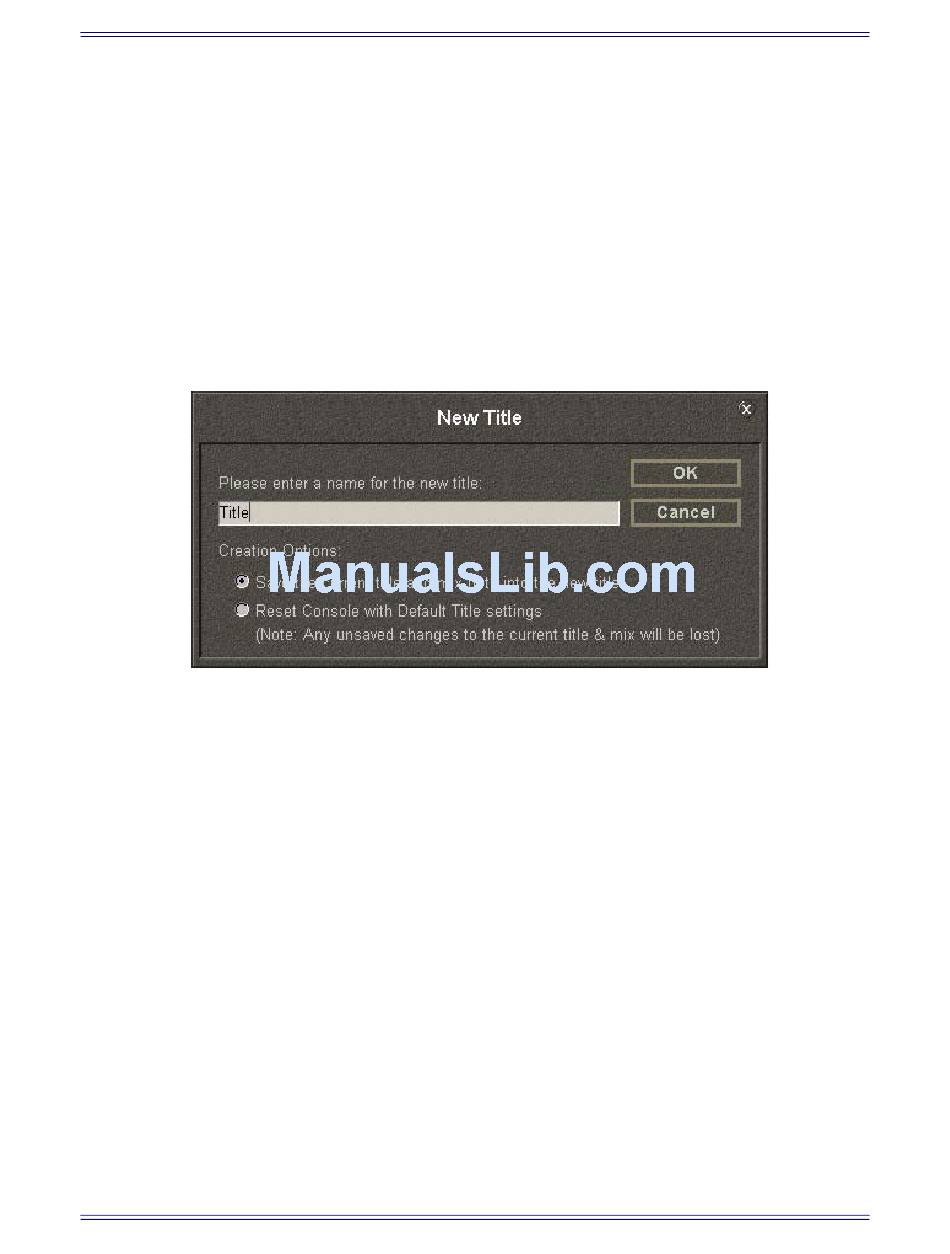

Figure 4-3 New Title dialog
34
eMix Application
