8
Help Menu
Gray
Note:
If no data is available from a switch, the most recent background color remains displayed.
Note:

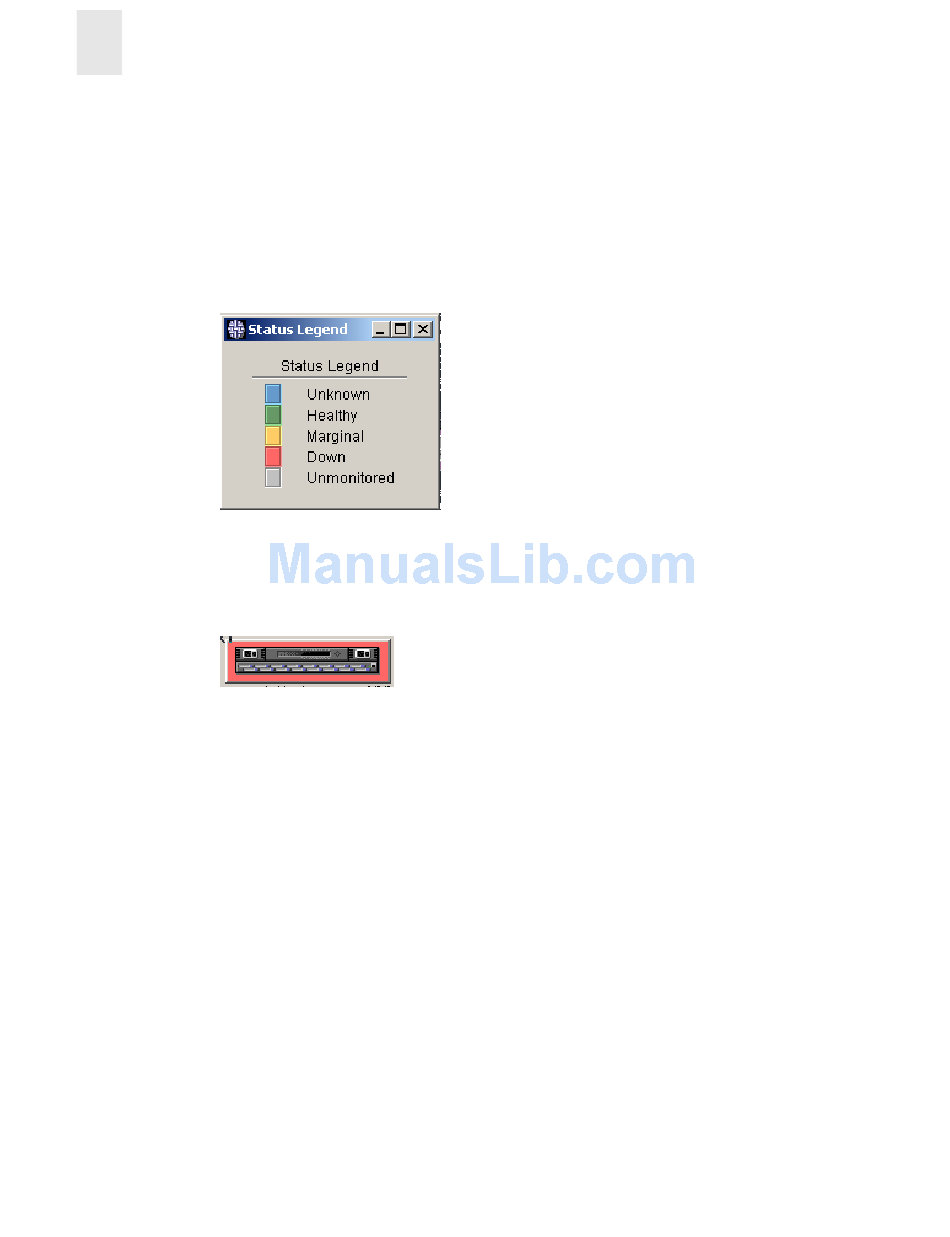

The Status Legend is shown in
Figure 8-4
Using the Status Legend
An individual switch icon is shown in
Figure 8-5
The background color of the switch indicates that the status of the switch is down.
About
Note:
8-4
Unmonitored
If the status of the switch is Unmonitored, the status will not change during that Fabric
Manager session.
For all statuses that are based on errors per time interval, any errors will cause the status to
show faulty until the entire sample interval has passed.
Figure
Status Legend
Individual Switch
This option is not currently available.
8-4.
Figure 8-5.
Fabric Manager User's Guide
