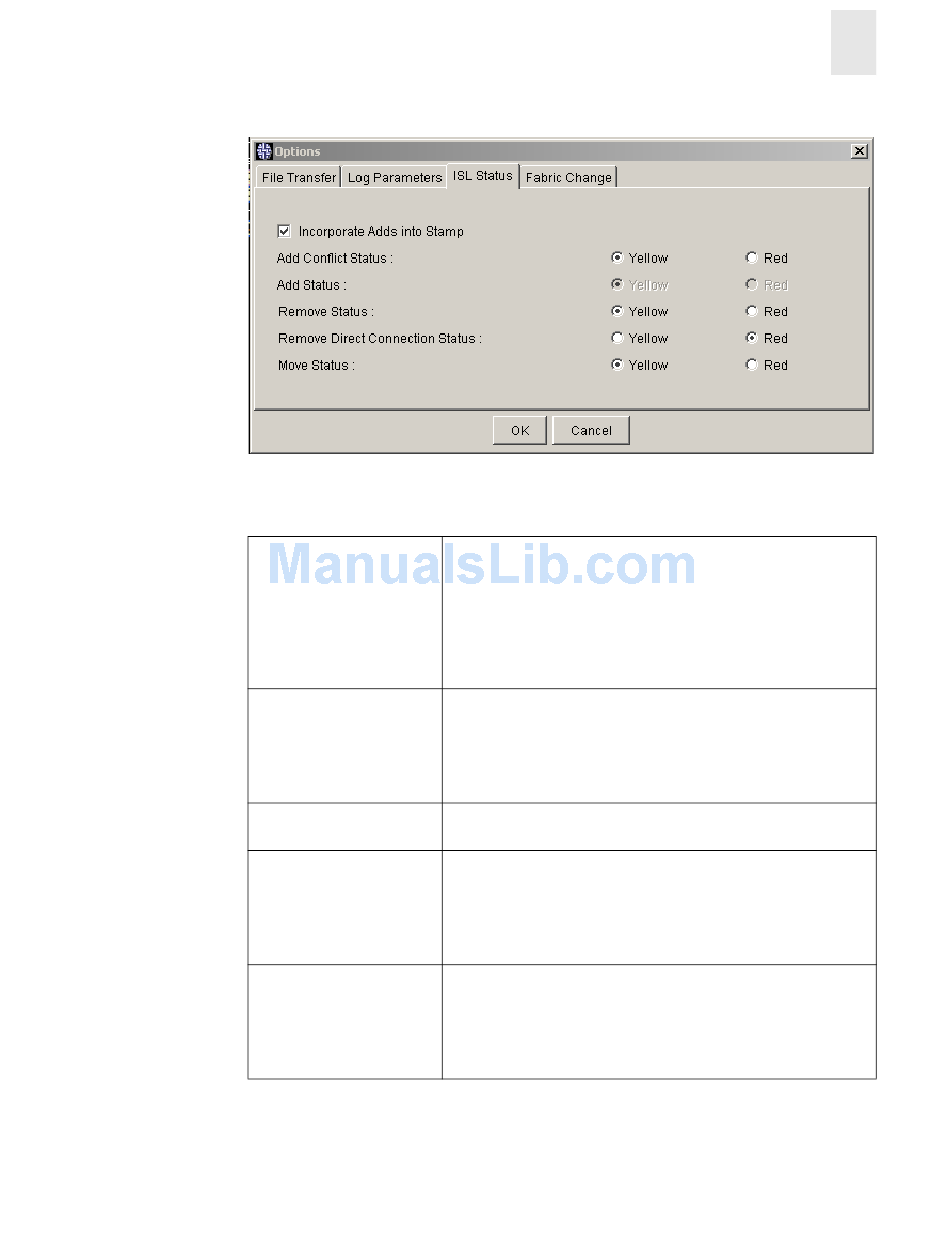

Figure 4-6 ISL Status Tab in the Options Window.
The following is a description of the fields available in the ISL Status tab.
Incorporate Adds into
Stamp
Add Conflict Status
Add Status
Remove Status
Remove Direct Connection
Status
Fabric Manager User's Guide
Check box if:
You want the ISL Stamp to change when additions are made
to the fabric.
Uncheck box if:
You do not want the ISL Stamp to change when additions are
made to the fabric.
Select Yellow or Red, depending on which color you want to
appear when Fabric Manager detects that one or more ISLs cannot
be monitored due to conflicting ISL Add events.
An Add Conflict occurs when two valid ISLs are set to be
monitored for the same port in the stamp.
Select Yellow or Red, depending on which color you want to
appear when an ISL connection has been added.
Select Yellow or Red, depending on which color you want to
appear when an ISL connection is removed.
Note:
Because Remove Direct Connection Status is considered
a high priority, the Remove Status priority cannot be set
higher than the Remove Direct Connection Status.
Select Yellow or Red, depending on which color you want to
appear when a Fabric Manager detects that a direct physical
connection has been removed.
A Remove Direct Connection occurs when no direct path exists,
although there is still an indirect path between switches.
