HP StorageWorks 8B - FC Entry Switch User Manual page 45

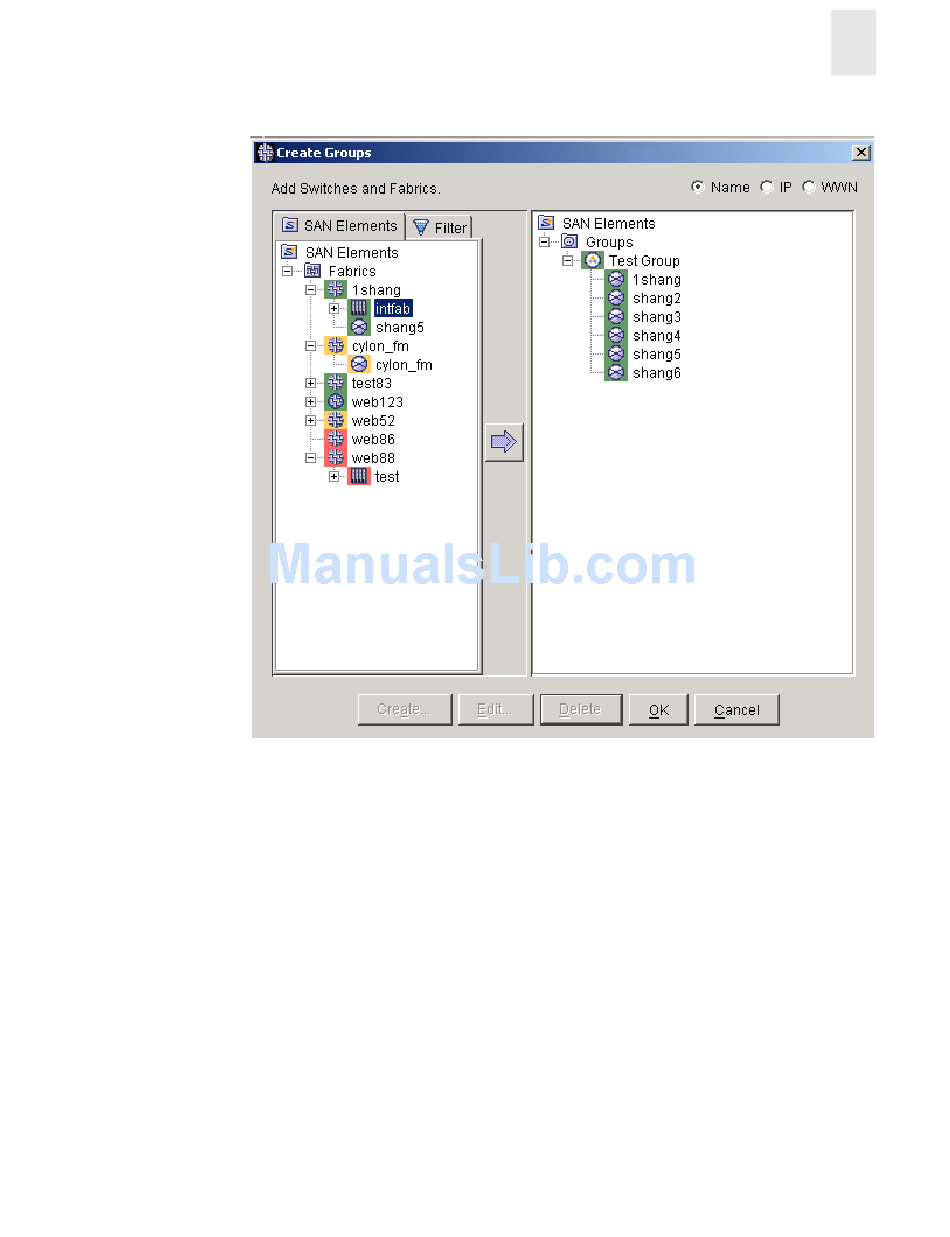

Figure 4-3 The Create Group Window
Creating Logical Groups
To create a group of controllable SAN objects:
1. Select File > Group > Create.
The Create Group window appears.
2. Highlight the word Groups (that you want to create a new group in) from the navigation-tree.
3. Select the Create button from the bottom of the navigation-tree window.
The Create Groups dialog box appears.
4. Type in a name for the group and press OK.
The name of your group appears in the navigation-tree.
5. Highlight the name of your group from the navigation-tree by clicking on it.
6. Select switches from the left navigation tree to be added to the Group.
Fabric Manager User's Guide
4
File Menu
4-5
