HP StorageWorks 8B - FC Entry Switch User Manual page 72

6
Actions Menu

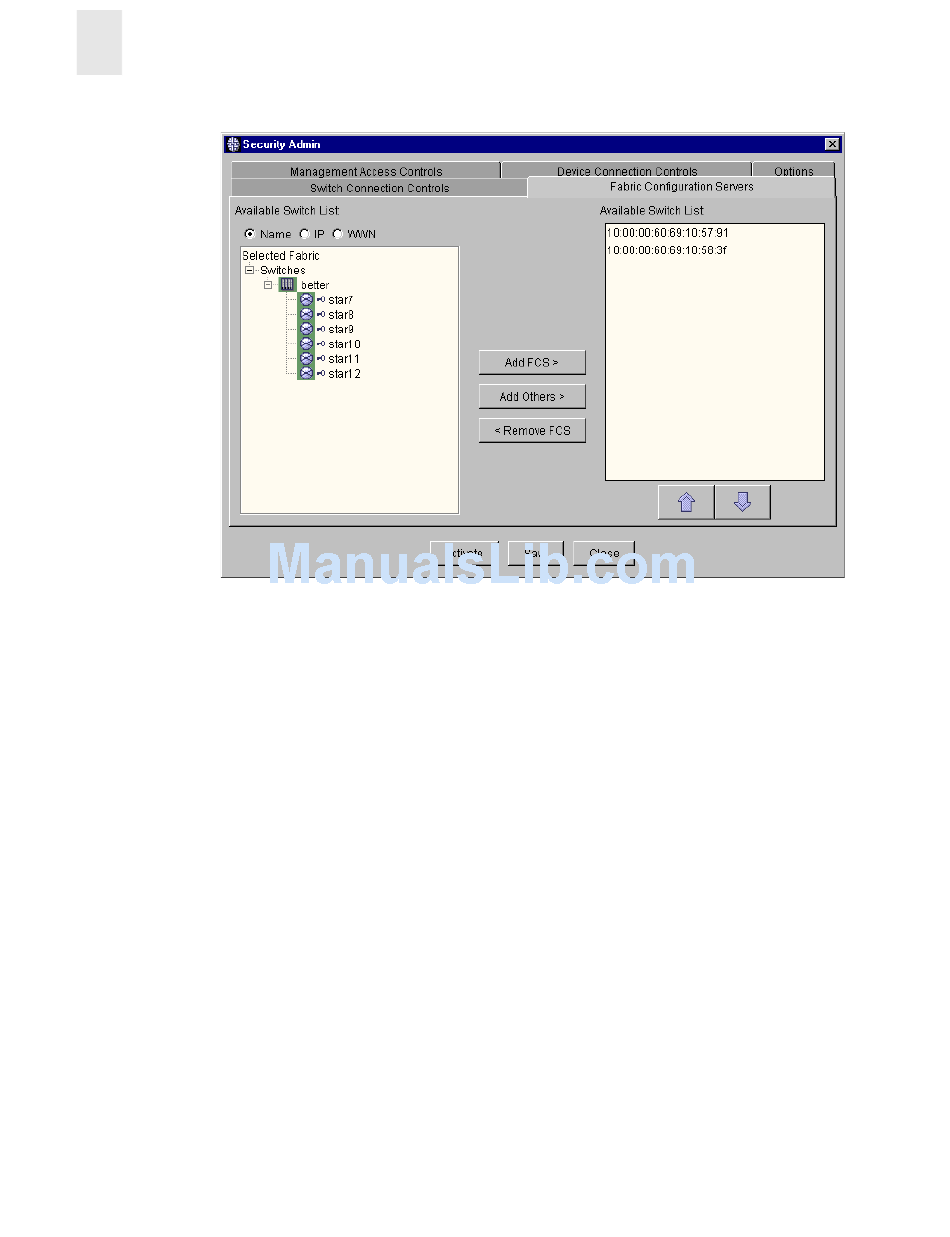

Figure 6-8
Adding a FCS Switch
To select a switch to be a secure access point for the fabric:
1. Select Actions > Security.
2. Select the Fabric Configuration Servers tab.
3. Highlight the switch in the Available Switch List column.
4. Use the Add FCS button to add the switch to the FCS Switch List (or drag and drop).
Use the Add Other button to add a switch WWN not already in fabric.
5. Use the Up/Down arrows to reorder the list of switches. The list is ordered so that the first
member is the primary, the second is the first backup, the third, the second backup and so on.
Note:
6. Select Activate to save the FCS switch configuration, implement the policy, and exit the
security dialog box.
Select Save to save changes without implementing policies. You can come back later to make
changes.
6-12
Fabric Configuration Servers Tab of the Security Menu
and/or
Changing the primary FCS causes updates in the fabric that may take time to complete,
depending upon fabric size.
or
Fabric Manager User's Guide
