Power supply
Status
Events
Telnet
Fabric Watch
Fan
Admin
Performance Monitor
Fabric Manager User's Guide

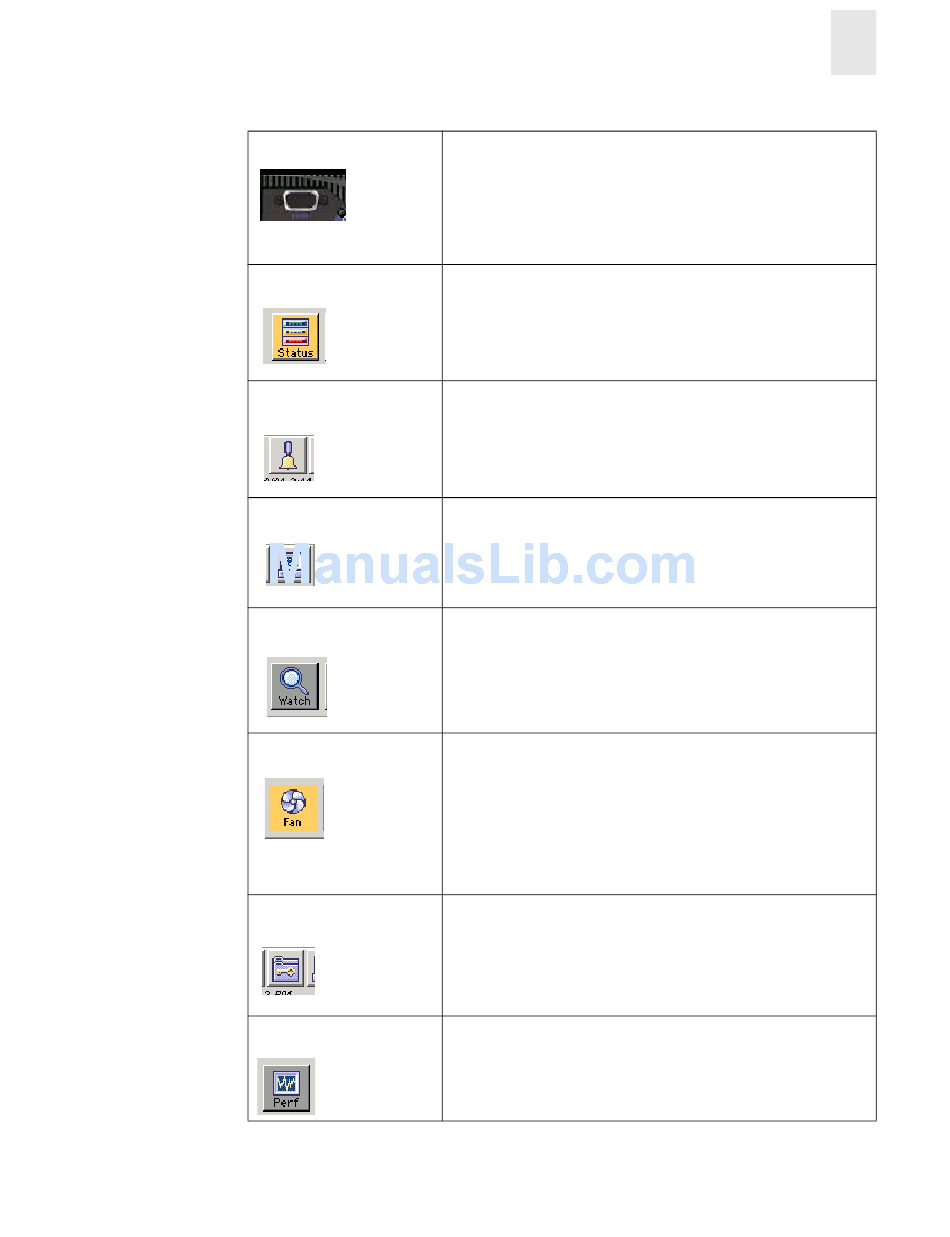

Removable power assemblies are updated to show
presence/absence and status of each:
Green Power supply present and operational.
Red X Power supply present but not operational.
Cover plate Power supply absent or not fully plugged in.
Click to view the switch's health status.
Click to access Switch Events View.
Click to launch a telnet session.
Click to access Fabric Watch.
The background color of the button indicates the overall status of
the fans:
Green Healthy
Yellow Marginal (mix of good and faulty readings)
Red Down (more than two faulty readings)
Gray Unknown or unmonitored
Click to display the Administrative Interface where you can
perform switch management functions.
Click to display the Performance Monitor where you can monitor
switch performance.
