Fabric Manager View

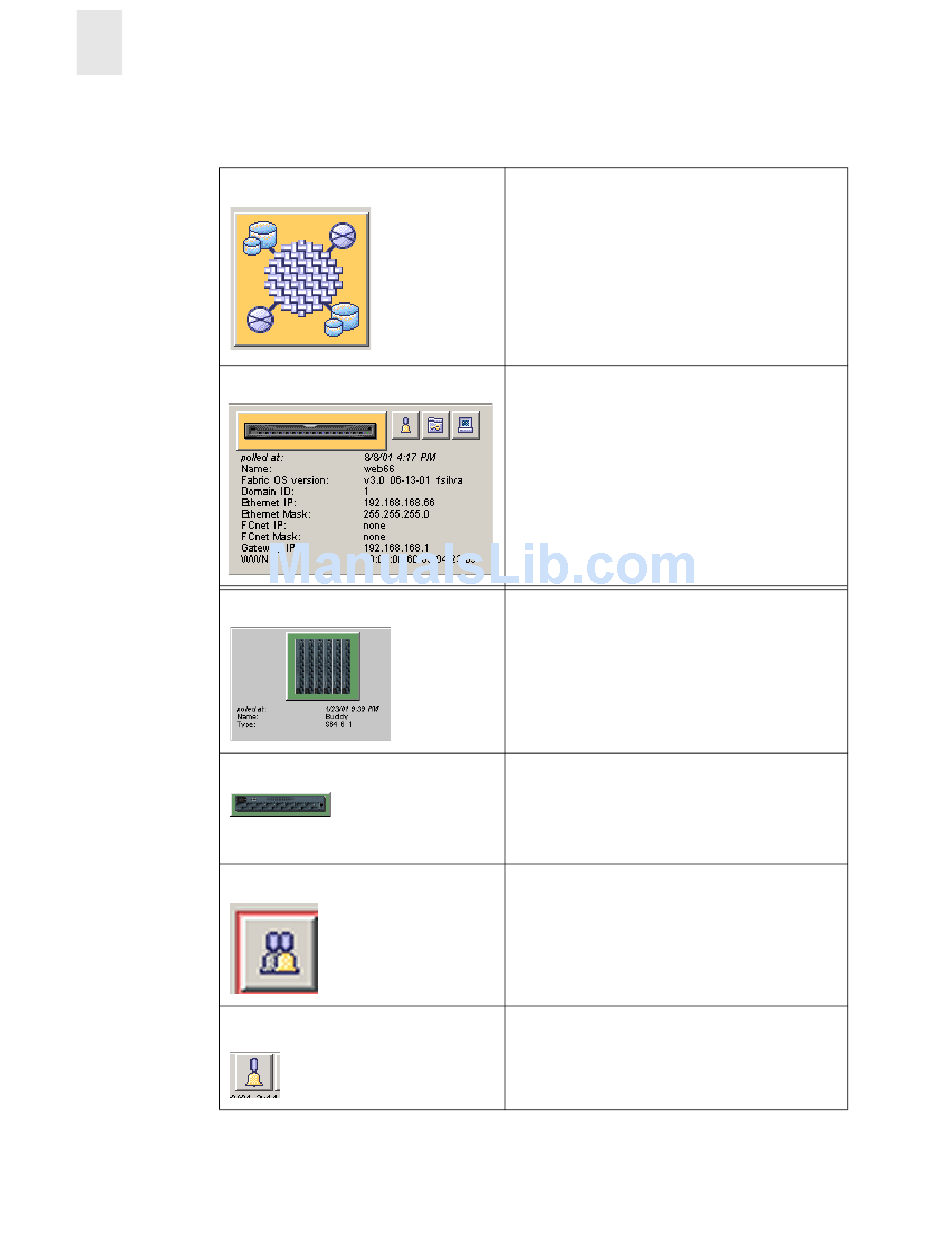

Switch and Fabric Icons Available in Fabric View
Fabric and Group Select Icon
Individual Switch Panel
SilkWorm Integrated Fabric Panel
Individual Switch Icon
Fabric Events Button
Events
3-10
Select this icon in either Fabric or Group to view
the associated Fabric or Group. The Fabric or
Group will be selected in the navigation-tree.
The Switch Panel representing an individual
switch in the fabric. A Switch Panel displays for
each individual switch in the fabric.
The Switch Panel representing a SilkWorm
Integrated Fabric.
The components of the control panel are described
in the following rows.
Click to open Switch View for the switch. Each
switch type is represented by a different icon. The
background color around the icon indicates the
status of the switch (for information about this
view, see Fabric Manager View
Click to open Fabric Events View. For information
about this view, see Events on
Click to open Switch Events View to display the
Switch Events log.
Fabric Manager User's Guide
on page 3-1.
page 6-2.
