10
Switch View
.

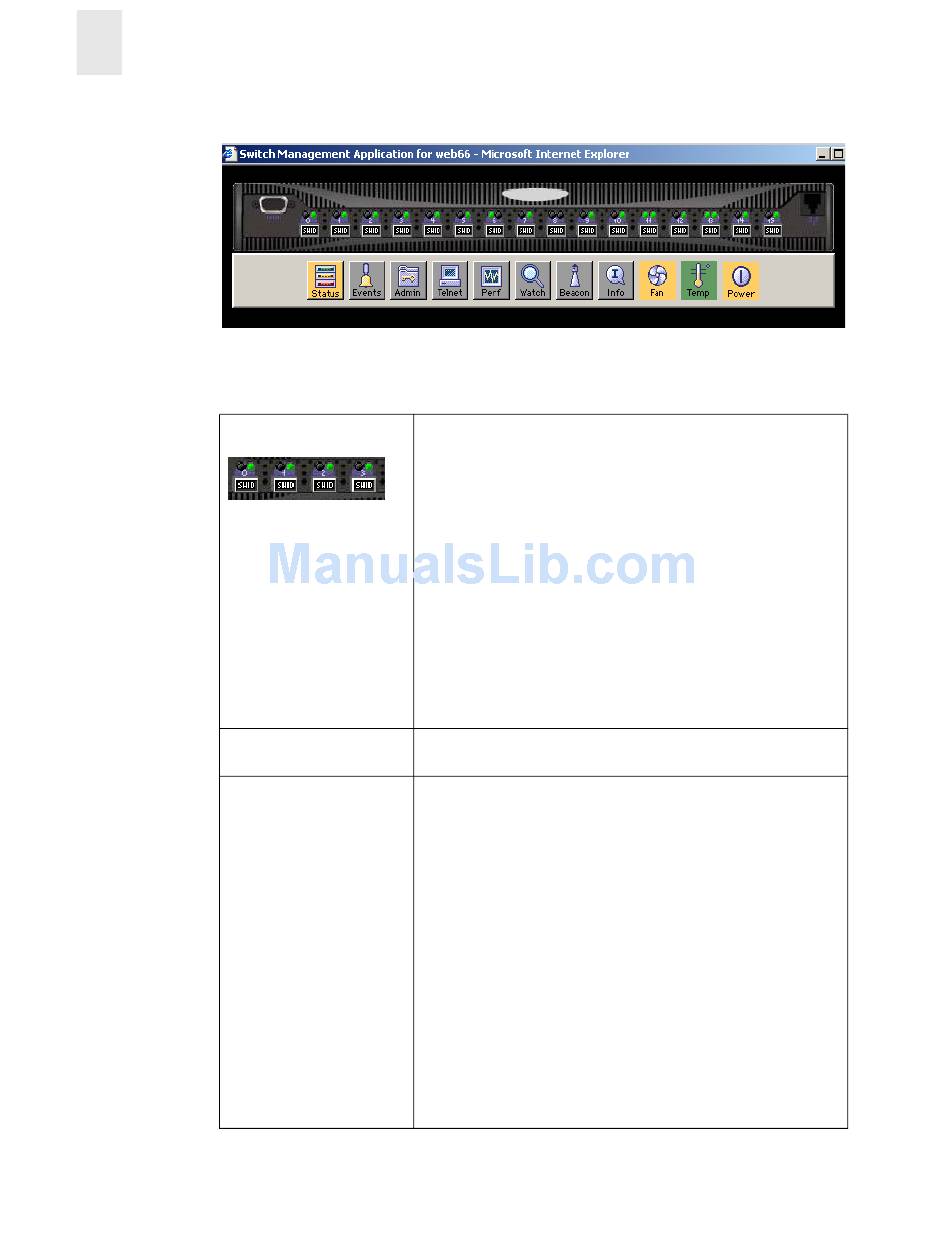

Figure 10-1 The Switch View
The items and information available in Switch View.
Port icons
Port numbers
(on the top of each port)
LED Status Indicators
(round light next to each
port)
10-2
The letters in the Port icon indicate the GBIC (Gigabit Interface
Converter) type, as follows:
blank No GBIC present
SW Short wave GBIC
LW Long wave GBIC
CU Copper GBIC
SWID Short wave serial ID GBIC
LWID Long wave serial ID GBIC
CUID Copper serial ID GBIC
A yellow outline around a port icon indicates port failure. For
detailed port information, click the Port icon to see the Port
Information View.
The number of the port.
The color indicates the status of the port:
No light
Steady yellow
check cable connections.
Slowly flashing yellow
portDisable command).
Rapidly flashing yellow
Steady green
cable).
Slowly flashing green
cable or incompatible switch).
Rapidly flashing green
Flickering green
frames.
No device attached.
Receiving light, but not online;
Disabled (diagnostics or
Error, fault with port.
Online (connected with device by
Online but segmented (loopback
Internal loopback (diagnostic)
Online and transmitting/receiving
Fabric Manager User's Guide
