File Menu

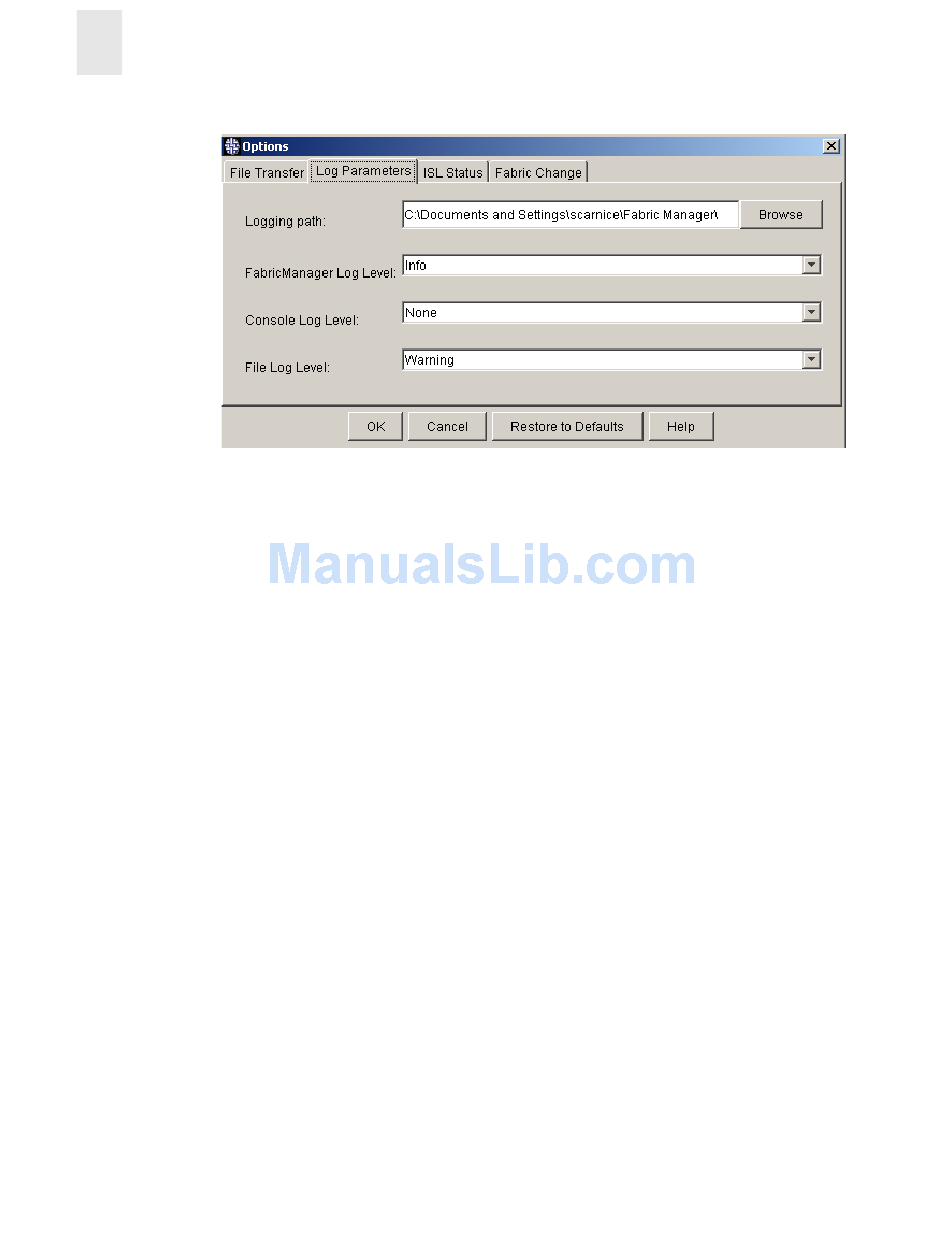

Figure 4-5 Log Parameters Tab of the Options Window
Setting Log Parameters
To set log parameters:
1. Select File > Options.
The Options window appears.
2. Select the Log Parameters tab.
3. Browse to locate and select the path that will be used to create a log sub-directory.
4. Choose a priority for the Fabric Manager Log Level from the drop-down menu.
5. Choose a priority for the Console Log Level from the drop-down menu.
6. Choose a priority for the File Log Level from the drop-down menu.
7. Select OK to apply the settings.
Select Cancel to close the window without saving changes.
Select Restore to Defaults to remove changes and restore the settings to the default state.
Select Help for further details about this window.

ISL Status Tab

Use the ISL Status tab in the File > Options menu to set various ISL status parameters.
The ISL Status tab is shown in
4-8
or
or
or
Figure 4-6 on page 4-9.
