General Configuration Screen
4.2.1
Setting the IP Address
To set the IP address, perform the following steps:
1. Use the arrow keys to highlight the IP Address field.
2. Enter the IP address into this field using Dotted Decimal Notation (DDN) format.
For example: nnn.nnn.nnn.nnn
3. Press ENTER. If the IP address is a valid format, the cursor returns to the beginning of the IP
address field. If the entry is not valid, the screen displays the message "INVALID IP ADDRESS
OR FORMAT ENTERED". Local Management does not alter the current value and refreshes
the IP address field with the previous value.
4. Use the arrow keys to highlight the SAVE command, then press ENTER. The warning screen
shown in
Figure 4-3

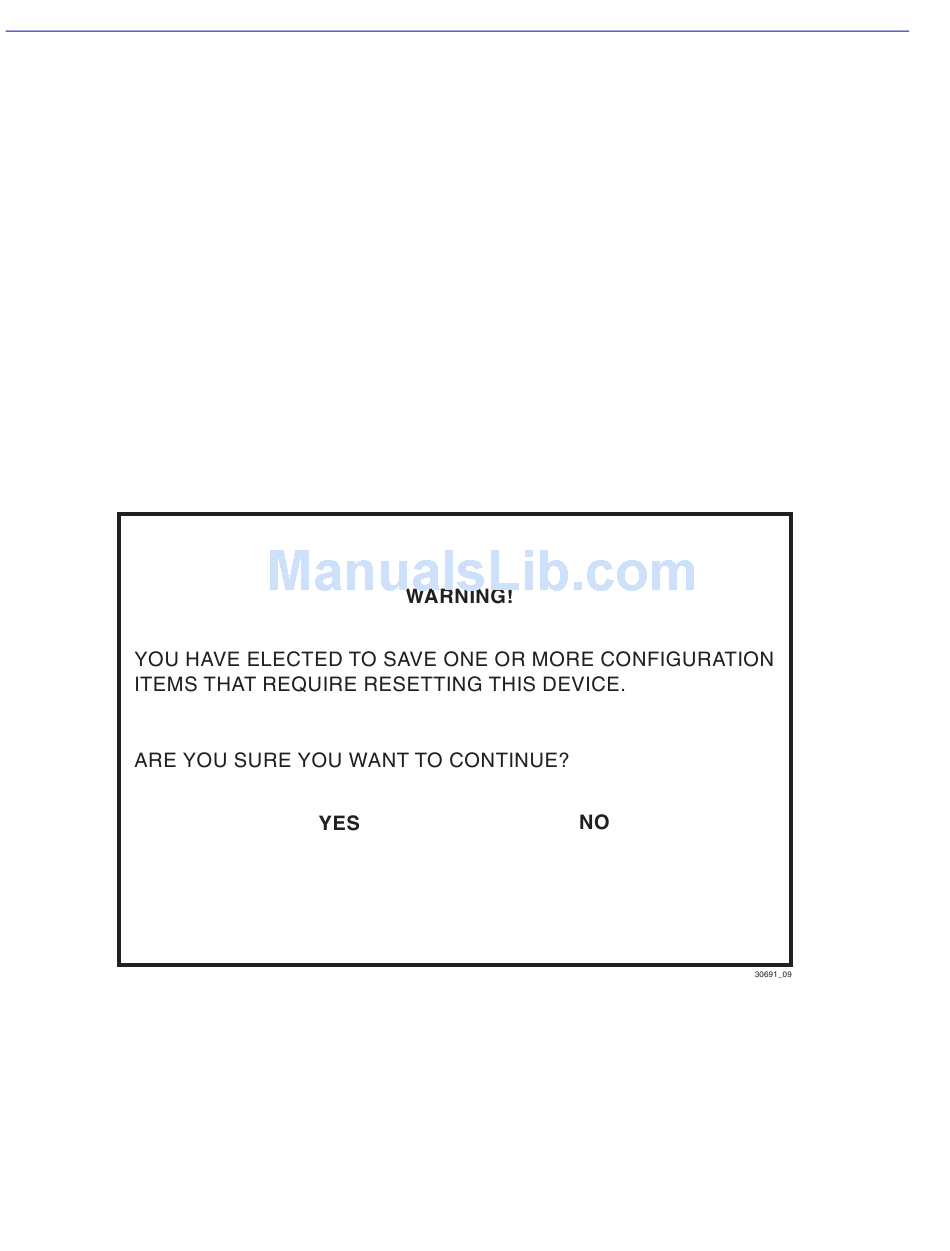

Figure 4-3 Configuration Warning Screen, IP Address
5. Use the arrow keys to highlight the YES command, then press ENTER. The changes are saved
and the device reboots.
4-8
Device Configuration Menu Screens
displays.
