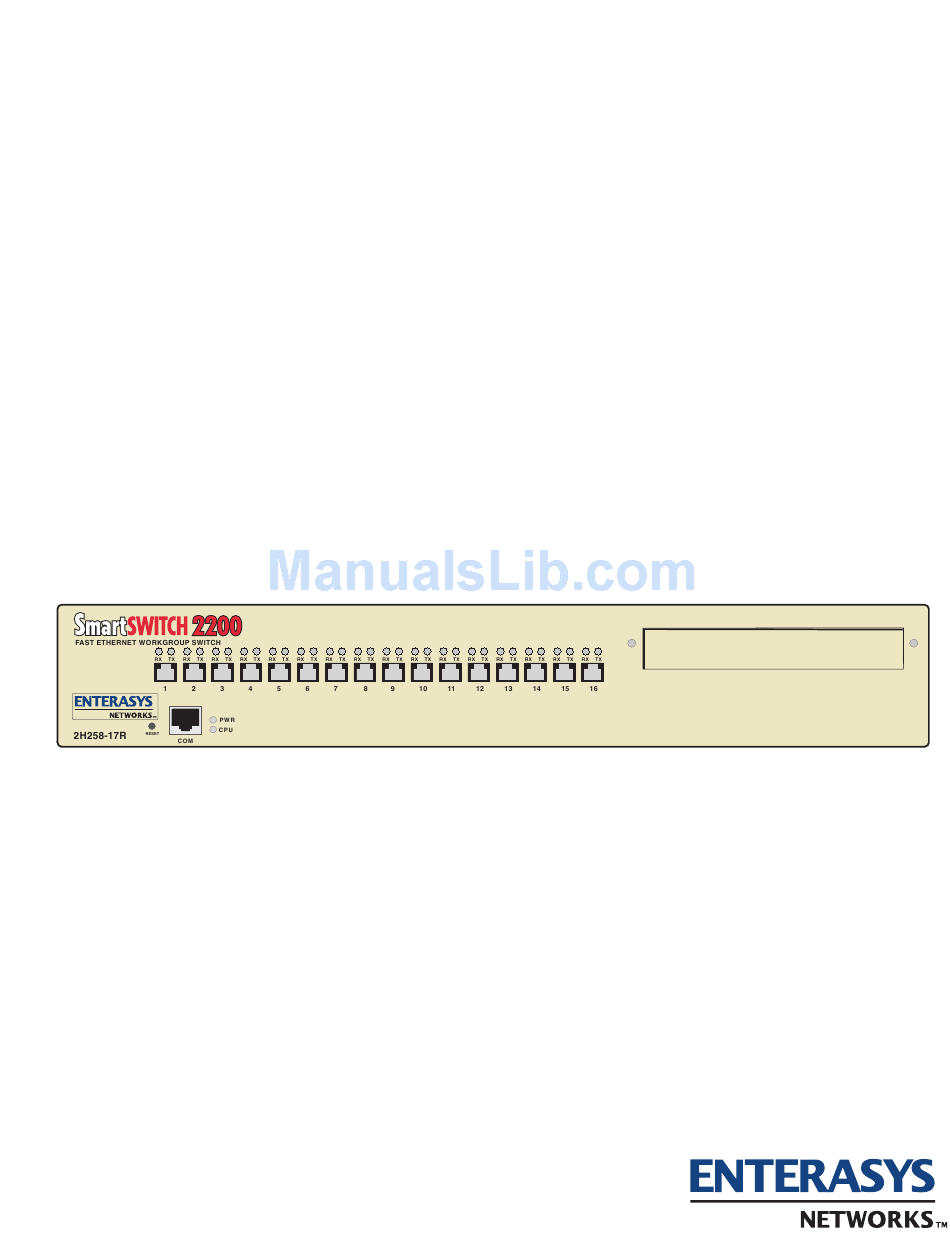

  • Page 1 2H258-17R SmartSwitch 2200 Installation User’s Guide 9033068-01...

  • Page 3: Fcc Notice

    Enterasys Networks reserves the right to make changes in specifications and other information contained in this document and its web site without prior notice. The reader should in all cases consult Enterasys Networks to determine whether any such changes have been made.

  • Page 4: Industry Canada Notice

    INDUSTRY CANADA NOTICE This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté...

  • Page 5: Program License Agreement

    CAREFULLY READ THIS LICENSE AGREEMENT. This document is an agreement (“Agreement”) between the end user (“You”) and Enterasys Networks, Inc. on behalf of itself and its Affiliates (as hereinafter defined) (“Enterasys”) that sets forth Your rights and obligations with respect to the Enterasys software program (including any accompanying documentation, hardware or media) (“Program”) in the...
  • Page 6 APPLICABLE LAW. This Agreement shall be interpreted and governed under the laws and in the state and federal courts of New Hampshire without regard to its conflicts of laws provisions. You accept the personal jurisdiction and venue of the New Hampshire courts. None of the 1980 United Nations Convention on Contracts for the International Sale of Goods, the United Nations Convention on the Limitation Period in the International Sale of Goods, and the Uniform Computer Information Transactions Act shall apply to this Agreement.
  • Page 7 AUDIT RIGHTS. You hereby acknowledge that the intellectual property rights associated with the Program are of critical value to Enterasys and, accordingly, You hereby agree to maintain complete books, records and accounts showing (i) license fees due and paid, and (ii) the use, copying and deployment of the Program. You also grant to Enterasys and its authorized representatives, upon reasonable notice, the right to audit and examine during Your normal business hours, Your books, records, accounts and hardware devices upon which the Program may be deployed to verify compliance with this Agreement, including the verification of the license fees due and paid Enterasys and the use, copying...

  • Page 8: Declaration Of Conformity

    Manufacturer’s Address: European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: Networking Equipment, for use in a Commercial Enterasys Networks, Inc. declares that the equipment packaged with this notice conforms to the above directives. 73/23/EEC 35 Industrial Way PO Box 5005 Rochester, NH 03866-5005 Enterasys Networks Ltd.

  • Page 9: Table Of Contents

    Remote Monitoring (RMON) ... 1-3 Broadcast Suppression... 1-4 Port/VLAN Redirect Functions ... 1-4 Traffic Rate Limiting ... 1-4 Flow Control... 1-5 GARP Switch Operation ... 1-5 802.1 Port Priority ... 1-5 Management ... 1-6 Switching Options ... 1-6 Optional HSIMs and VHSIMs... 1-6 Standards Compatibility ...
  • Page 10 Physical Properties ...A-1 Electrical Specifications ...A-2 Environmental Requirements...A-2 Input/Output Ports ...A-2 COM Port Pinout Assignments ...A-3 Regulatory Compliance...A-3 OPTIONAL INSTALLATIONS AND MODE SWITCH BANK SETTINGS Required Tools...B-1 Removing the Chassis Cover...B-2 Setting the Mode Switches...B-5 SIMM Upgrade ...B-7 B.4.1 B.4.2 Installing Optional HSIM or VHSIM Interface Modules ...B-9...

  • Page 11: Figures

    Figure The 2H258-17R SmartSwitch 2200... 1-1 Tabletop or Shelf Installation ... 3-4 Attaching the Strain-Relief Bracket ... 3-5 Attaching the Rackmount Brackets ... 3-6 Installing the Device in a Rack ... 3-7 2H258-17R Rear View ... 3-8 Fiber Optic Connection... 3-10 LANVIEW LEDs ...
  • Page 12 Tables Table Contents of 2H258-17R Carton ...3-2 LANVIEW LEDs ...4-2 Troubleshooting Checklist...4-4 COM Port Pin Assignment ... A-3 Tables Page...

  • Page 13: About This Guide

    Welcome to the 2H258-17R SmartSwitch 2200 Installation User’s Guide. This guide describes the 2H258-17R SmartSwitch 2200 device and provides information concerning network requirements, installation, and troubleshooting. For information about how to use Local Management to configure and manage the 2H258-17R, refer to the SmartSwitch Series 2E253, 2H252, 2H253, and 2H258 Local Management User’s Guide.

  • Page 14: Related Documents

    Mode Switch, and shows the location of an optional High Speed Interface Module (HSIM) or Very High Speed Interface Module (VHSIM) when one is installed. RELATED DOCUMENTS The following Enterasys Networks documents may help to set up, control, and manage the 2H258-17R: •...

  • Page 15: Document Conventions

    World Wide Web in Adobe Acrobat Portable Document Format (PDF) at the following site: http://www.enterasys.com/ NOTE: All documentation for the Enterasys Networks SecureFast VLAN Manager software is contained on the VLAN Manager CD-ROM. DOCUMENT CONVENTIONS This guide uses the following conventions: NOTE: Calls the reader’s attention to any item of information that may be of special...

  • Page 17: Introduction

    This chapter introduces the 2H258-17R SmartSwitch 2200 device and provides information about how to obtain additional support from Enterasys Networks. Depending on the firmware version used in the 2H258-17R, some features described in this document may not be supported. Refer to the Release Notes shipped with the 2H258-17R to determine which features are supported.

  • Page 18: Connectivity

    Overview The 2H258-17R is used to connect individual high-bandwidth user devices, such as workstations, or to provide a central switching point for multiple 100-Mbps Fast Ethernet segments. The optional HSIMs provide high speed uplinks to networking technologies such as Fast Ethernet, Gigabit Ethernet, Fiber Distributed Data Interface (FDDI), Wide Area Network (WAN), and Asynchronous Transfer Mode (ATM).

  • Page 19: Full Duplex Switched Ethernet

    History groups are enabled on all ports by default. Enterasys Networks RMON Actions is a vendor-specific extension of RMON and provides the ability to set an “Action” on any SNMP MIB variable. The Action can be triggered by any RMON Event and/or Alarm.

  • Page 20: Broadcast Suppression

    VLAN classification of the frames received. Multiple VLANs can be directed to the same destination port. The VLAN redirect function is only supported when the device is operating as an 802.1Q switch. 1.1.8...

  • Page 21: Flow Control

    GARP attributes such as VLAN and multicast group membership. For more details on how GVRP and GMRP handle frames under GARP, and how to configure the switch ports to take advantage of this operation, refer to the SmartSwitch Series 2E253, 2H252, 2H253, and 2H258 Local Management User’s Guide.

  • Page 22: Management

    RFC 1757 (RMON), RFC 1493 (Bridge MIB), RFC 1354 (FIB MIB), and RFC 1190 (Path MTU Discovery). A full suite of Enterasys Networks Enterprise MIBs provide a wide array of statistical information to enhance troubleshooting. For information on how to extract and compile individual MIBs, contact Enterasys Networks.

  • Page 23: Lanview Diagnostic Leds

    LANVIEW diagnostic LEDs serve as an important troubleshooting aid by providing an easy way to observe the status of individual ports and overall network operations. GETTING HELP For additional support related to the module or this document, contact Enterasys Networks using one of the following methods: World Wide Web http://www.enterasys.com...

  • Page 25: Network Requirements 2.1 Smarttrunk

    100BASE-FX IEEE 802.3u. The front panel slot for optional modules can also support Enterasys Networks fiber optic interface modules. The device at the other end of the segment must meet the 100BASE-FX Fast Ethernet network requirements to operate at 100 Mbps.

  • Page 27: Installation

    ELECTRICAL HAZARD: Only qualified personnel should install the 2H258-17R. NOTE: Read the Release Notes shipped with the device to check for any exceptions to the supported features and operation documented in this guide. This chapter provides the instructions required to install the 2H258-17R. A Phillips screwdriver is required to install options into the device or install the device into a rack.

  • Page 28: Unpacking The Device

    Unpacking the Device UNPACKING THE DEVICE Unpack the device as follows: 1. Open the box and remove the packing material protecting the 2H258-17R. 2. Verify the contents of the carton as listed in Table 3-1 Contents of 2H258-17R Carton Item 2H258-17R Antistatic Wrist Strap Console Cable Kit...

  • Page 29: Installing The Device

    INSTALLING THE DEVICE The 2H258-17R may be installed on a tabletop, shelf, or in a 19-inch rack. a tabletop or shelf installation and ELECTRICAL HAZARD: To prevent possible personal injury and/or damage to the unit, do NOT connect power to the 2H258-17R until instructed to do so. 3.3.1 Tabletop or Shelf Installation The following two subsections provide guidelines for installation on a tabletop or shelf.

  • Page 30: Tabletop Or Shelf Installation

    Figure 3-1 Tabletop or Shelf Installation 3.3.2 Rackmount Installation To install the 2H258-17R in a 19-inch rack, Enterasys Networks includes a strain-relief bracket for cable management and an accessory kit containing the rackmount brackets, and mounting screws to attach the rackmount brackets and strain-relief bracket.

  • Page 31: Attaching The Strain-Relief Bracket

    Installation Rack mounting the 2H258-17R involves the following: • Attaching the strain-relief bracket • Rack mounting the 2H258-17R (attaching the mounting brackets and fastening the device to the rack) Attaching the Strain-Relief Bracket Attach the strain-relief bracket to the 2H258-17R as follows: 1.

  • Page 32: Attaching The Rackmount Brackets

    Installing the Device Rack Mounting the 2H258-17R Proceed as follows to install the 2H258-17R into a 19-inch rack: 1. There are several mounting holes in the rackmount brackets and the bottom of the chassis so that each mounting bracket may be adjusted forward or backward to mount the device further into, or out of the rack, depending on the installation requirements.

  • Page 33: Connecting Power

    Figure 3-4 Installing the Device in a Rack 3.3.3 Connecting Power NOTE: The two power supplies in the 2H258-17R have automatic voltage sensing that allows connection to power sources ranging from 100–125 Vac, 2.5 A or 200–240 Vac, 1.25 A, 50/60 Hz. To connect the 2H258-17R to the power sources, proceed as follows: 1.

  • Page 34: Connecting To The Network

    PWR LED is amber, there is no power redundancy. Check the power cord connections and the power source. If there are no problems with the power cord connections or power source and the PWR LED is still amber, contact Enterasys Networks. Refer to CONNECTING TO THE NETWORK This section provides the procedures for connecting fiber optic segments from the network or other devices to the 2H258-17R.
  • Page 35 2H258-17R connects to the transmit port of the fiber optic Fast Ethernet device. Enterasys Networks recommends labeling fiber optic cables to indicate receive and transmit ends. Many cables are prelabeled, providing matching labels or tapes at both ends of each strand of cable.

  • Page 36: Fiber Optic Connection

    Check that the fiber optic connection meets the dB loss and cable specifications outlined in Enterasys Networks Cabling Guide for multimode mode cabling. If a link is not established, contact Enterasys Networks. Refer to 5. Repeat steps 1 through 3, above, until all connections have been made.

  • Page 37: Completing The Installation

    COMPLETING THE INSTALLATION After installing the 2H258-17R and any optional HSIM or VHSIM, and making the connections to the network, proceed as follows: 1. Secure the cables by running the cables along the strain-relief bracket and tying them to the strain-relief bracket using cable ties.

  • Page 39: Lanview Leds

    • Troubleshooting Checklist • Using the RESET Button USING LANVIEW The 2H258-17R uses Enterasys Networks’ built-in visual diagnostic and status monitoring system called LANVIEW. The LANVIEW LEDs status to aid in diagnosing network problems. Figure 4-1 LANVIEW LEDs 4.1) (Section 4.2)

  • Page 40: Lanview Leds

    Recommended Action 1. Ensure that the power cords are plugged in correctly and that there is power at the power source. 2. Contact Enterasys Networks for assistance. None. 1. Ensure that the power cords are plugged in correctly and that there is power at the power source.
  • Page 41 Flashing. Port enabled, link, activity. Diagnostic failure. Recommended Action Power up device. Contact Enterasys Networks for assistance. If the LED remains red for several minutes, contact Enterasys Networks for assistance. Contact Enterasys Networks for assistance. If the LED remains amber for several minutes, contact Enterasys Networks for assistance.

  • Page 42: Lanview Leds

    Installed improperly. Troubleshooting Recommended Action 1. Ensure that the STA is enabled and that there is a valid link. 2. Contact Enterasys Networks for assistance. None. 1. Ensure that the port is not disabled. 2. Contact Enterasys Networks for assistance.
  • Page 43 Management User’s Guide for Community Names Table setup. 2. If you have forgotten the Community Names, refer to Appendix B instructions on how to set the mode switch to reset the Community Names to their default values. Troubleshooting Section B...
  • Page 44 Troubleshooting Checklist Table 4-2 Troubleshooting Checklist (Continued) Problem Possible Cause Cannot contact IP address not assigned. the 2H258-17R through in-band management. Port is disabled. No link to device. Port(s) goes into Loop condition detected. standby for no apparent reason. Troubleshooting Recommended Action Refer to the SmartSwitch Series 2E253, 2H252, 2H253, and 2H258 Local...

  • Page 45: Reset Button

    Table 4-2 Troubleshooting Checklist (Continued) Problem Possible Cause User parameters 1. Position of Mode switch (IP address, (7), NVRAM Reset, was Device and changed sometime before Module name, either cycling power or etc.) were lost pressing the RESET when the...

  • Page 46: Using The Reset Button

    Using the RESET Button USING THE RESET BUTTON The RESET button shown in CAUTION: Pressing the RESET button resets the device, and all current switching being performed by the device is halted. A network downtime of up to two minutes will result from this action.

  • Page 47: A.1 Device Specifications

    This appendix provides operating specifications for the Enterasys Networks 2H258-17R. Enterasys Networks reserves the right to change these specifications at any time without notice. DEVICE SPECIFICATIONS Processors: Dynamic Random Access Memory (DRAM): FLASH Memory: Shared Memory: PHYSICAL PROPERTIES Dimensions: Approximate Weight (Unit):...

  • Page 48: A.4 Environmental Requirements

    Electrical Specifications ELECTRICAL SPECIFICATIONS Line Input Range, Volts (Vac): Input Current, Amperes (A): Frequency, Hertz (Hz): Input Power, Volt Amperes (VA): ENVIRONMENTAL REQUIREMENTS Operating Temperature: Storage Temperature: Operating Relative Humidity: INPUT/OUTPUT PORTS Ports 1 through 16: Interface Slot: Specifications 100–125 Vac 200–240 Vac 2.3 A 1.2 A...

  • Page 49: A.7 Regulatory Compliance

    COM PORT PINOUT ASSIGNMENTS The COM port is a serial communications port that supports Local Management or connection to a UPS. Table A-1 shows the COM port pin assignments. Table A-1 COM Port Pin Assignment Signal Name Transmit Data (XMT) Data Carrier Detect (DCD) Data Set Ready (DSR) Receive Data (RCV)

  • Page 51: B.1 Required Tools

    Use the following tools to perform the procedures provided in this appendix: • Antistatic wrist strap • Phillips screwdriver Optional Installations and Mode Switch Bank Settings B.1) (Section B.2) (Section B.4) (Section B.5) Optional Installations and Mode Switch Bank Settings (Section B.3)

  • Page 52: B.2 Removing The Chassis Cover

    SIE VOR WARTUNGSARBEITEN DIE 2 NET ZANSCHLÜSSE VOM NETZ, UM ELEKTRISCHE SCHLÄGE ZU VERMEIDEN. ATTENTION: CET APPAREIL COMPORTE PLUS D’UN CORDON D’ALIMENTATION. RAFIN DE PREVENIR LES CHOCS ELECTRIQUES, DEGRANCHER LES DEUX CORDONS D’ALIMENTATION AVANT DE FAIRE LE DEPANNAGE. Optional Installations and Mode Switch Bank Settings...
  • Page 53 4. Remove the cover by sliding it back until it clears the front of the chassis and then lifting it straight up and off the chassis. To reinstall the chassis cover, perform the removal procedures in reverse. Optional Installations and Mode Switch Bank Settings Removing the Chassis Cover...

  • Page 54: B-1 Removing The Chassis Cover

    Removing the Chassis Cover Figure B-1 Removing the Chassis Cover Optional Installations and Mode Switch Bank Settings...

  • Page 55: B-2 Mode Switch Location

    These switches are set at the factory and rarely need to be changed. Switch definitions and positions are as follows: • Switches 1 through 4 – For Enterasys Networks use only. • Switch 5 – COM Port Autobaud. The default (OFF) position enables Autobaud sensing on the COM port for Local Management sessions.
  • Page 56 (TFTP) server containing the 2H258-17R image file. When the position of Switch 6 is changed and the power is cycled to the 2H258-17R, the device requests the image file location from the BootP server and uses TFTP to download the image from the TFTP server.

  • Page 57: B-3 Simm Slot Locations

    Memory upgrade is available for the 2H258-17R to expand its DRAM to 32 MB. This section explains how to locate and add/replace a Single In-line Memory Module (SIMM). For information on the available SIMM upgrades, call Enterasys Networks. For details on getting help, refer to Section 1.2.

  • Page 58: Installing The Dram Simm

    2. Pivot the SIMM downward so the connector clips align with the two side notches of the SIMM and the connector clips lock the SIMM into place. Figure B-4 Installing the DRAM Optional Installations and Mode Switch Bank Settings Figure B-4 and proceed as follows:...

  • Page 59: B-5 Hsim And Vhsim Connector Locations

    Depending on the HSIM or VHSIM installed, one or both connectors are used. NOTE: The installation instructions for the optional HSIM or VHSIM are in the associated user’s guide. Figure B-5 HSIM and VHSIM Connector Locations Installing Optional HSIM or VHSIM Interface Modules Optional Installations and Mode Switch Bank Settings...

  • Page 61: Index

    Numerics 100BASE-T requirements 2H258-17R description of front panel 802.1p Port Priority introduction to Broadcast Suppression introduction to Cable specifications 100BASE-FX network Chassis cover, removal of COM port pin assignments Connecting to the network Connectivity introduction to Document conventions xiii Environmental requirements Flow control introduction to Full Duplex Switched Ethernet, introduction...
  • Page 62 Management use of Memory upgrading Mode Switch setting Network connections Physical properties Port redirect function introduction to Power connection Redirect functions port and VLAN introduction to Regulatory Compliance Related manuals Remote Monitoring (RMON) introduction to RESET button Runtime IP address discovery...
