Step 3: Place rack nuts on front and rear columns.

Place the rack nuts on the front columns :
Use the template or locate the bottom of the EIA spaces to be
occupied by the LPr and count up to holes 2, 3, and 5. Place rack nuts
on these holes.
NOTE
The threaded nut part of the rack nut must be behind the
outside face of the columns.

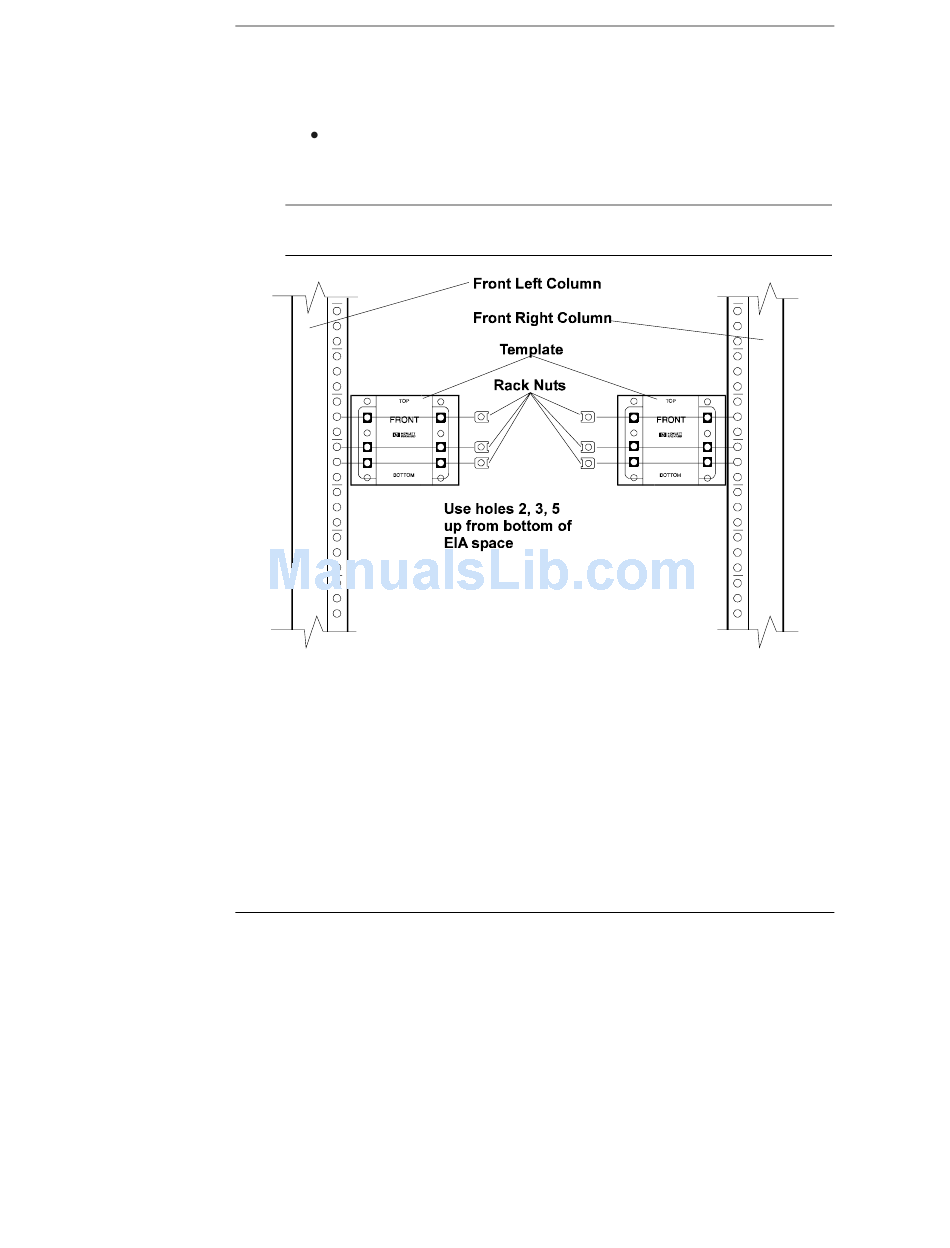

Figure 9-6. Placing Front Column Rack Nuts
66
Mounting the Server in the Rack
