Removing The Top And Side Panels - HP Visualize J5000 Upgrade Instructions

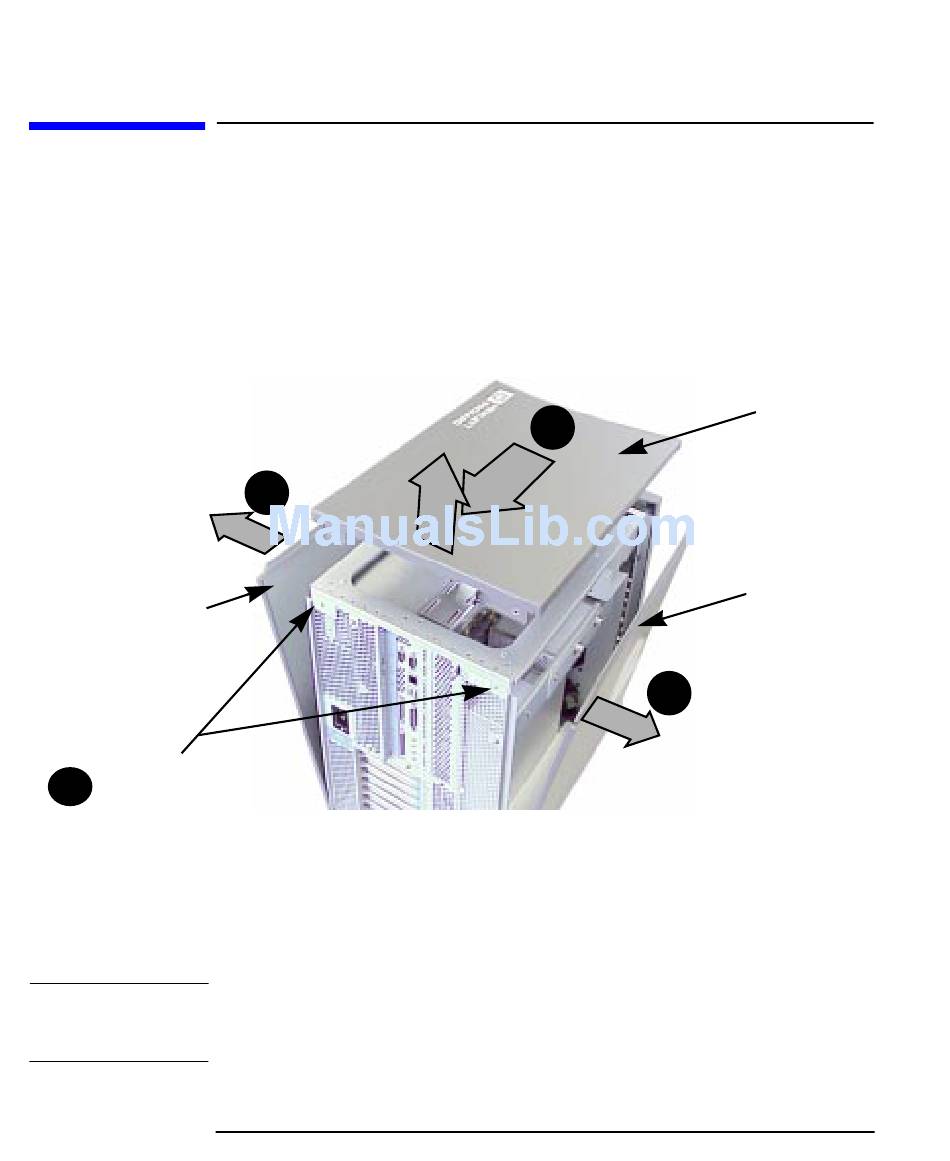

Figure 2-3
Right Side Panel
Hole for T-15
Torx Thumbscrew
(Power Supply Interlock)
1
CAUTION
System Board Removal/Replacement

Removing the Top and Side Panels

Removing the Top and Side Panels
1. Facing the back of the workstation, remove the T-15 Torx thumbscrew
located in each top corner of the back of the workstation. The upper
left one (when facing the back of the workstation) is the power supply
interlock—a safety feature that disengages the power supply when
the thumbscrew is removed.
Back View of the Workstation
3
2. Slide the top panel toward the back of the workstation. Lift up to
remove it. Set the panel and screws aside.
3. Tip one of the side panels out and away from the chassis. Lift it out of
the groove in the bottom of the chassis. Remove the other side panel
in the same way. Set the panels aside.
To avoid damage to internal components, leave the system in the upright
position
16
2
3
Top Panel
Left Side Pane
