Optical Drive
CAUTION:
computer.
NOTE:
An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD Combo
drive.
1.
Prepare the computer for disassembly
2.
Remove the computer cover
3.
Raise the drive cage to the upright position.
4.
Disconnect the power cable (1) and data cable (2) from the rear of the optical drive.

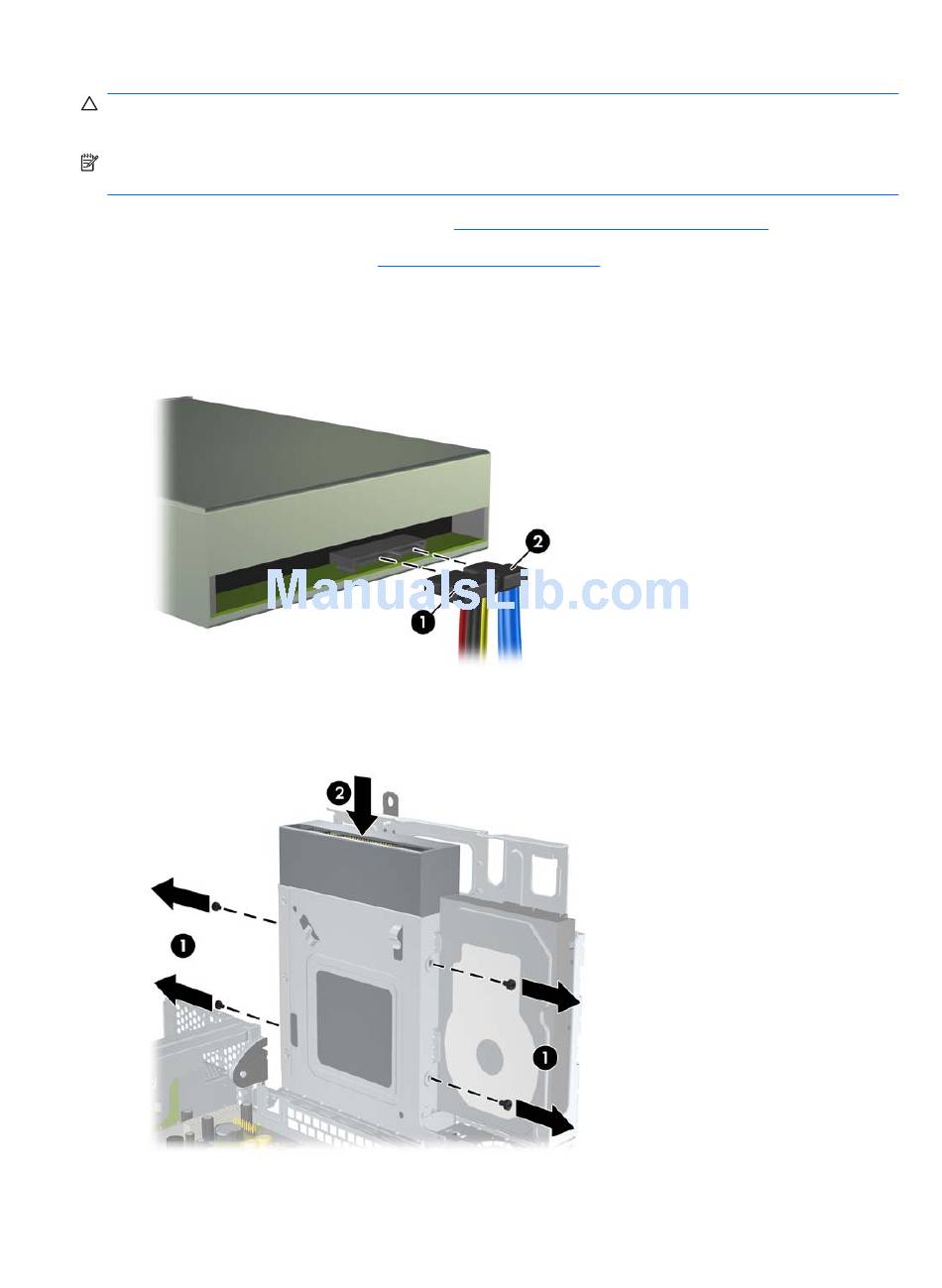

Figure 6-36
5.
Remove the four screws that secure the drive to the drive cage (1), and then slide the drive forward
out of the drive bay (2).
Figure 6-37
62
Chapter 6 Removal and Replacement Procedures
All removable media should be taken out of the drives before removing the drive from the
(Computer Cover on page
Disconnecting the Optical Drive Power and Data Cables
Removing the Optical Drive
(Preparation for Disassembly on page
38).
34).
