NOTE:
When replacing a drive, use the four retainer screws that were used for the old drive when
installing the new drive.
To install an optical drive:
1.
Follow the procedure above to remove the old optical drive.
2.
If necessary, remove the bezel blank covering the 5.25-inch drive bay.
3.
Slide the drive into the optical drive bay (1) and secure it in place with the four retainer screws
(2).

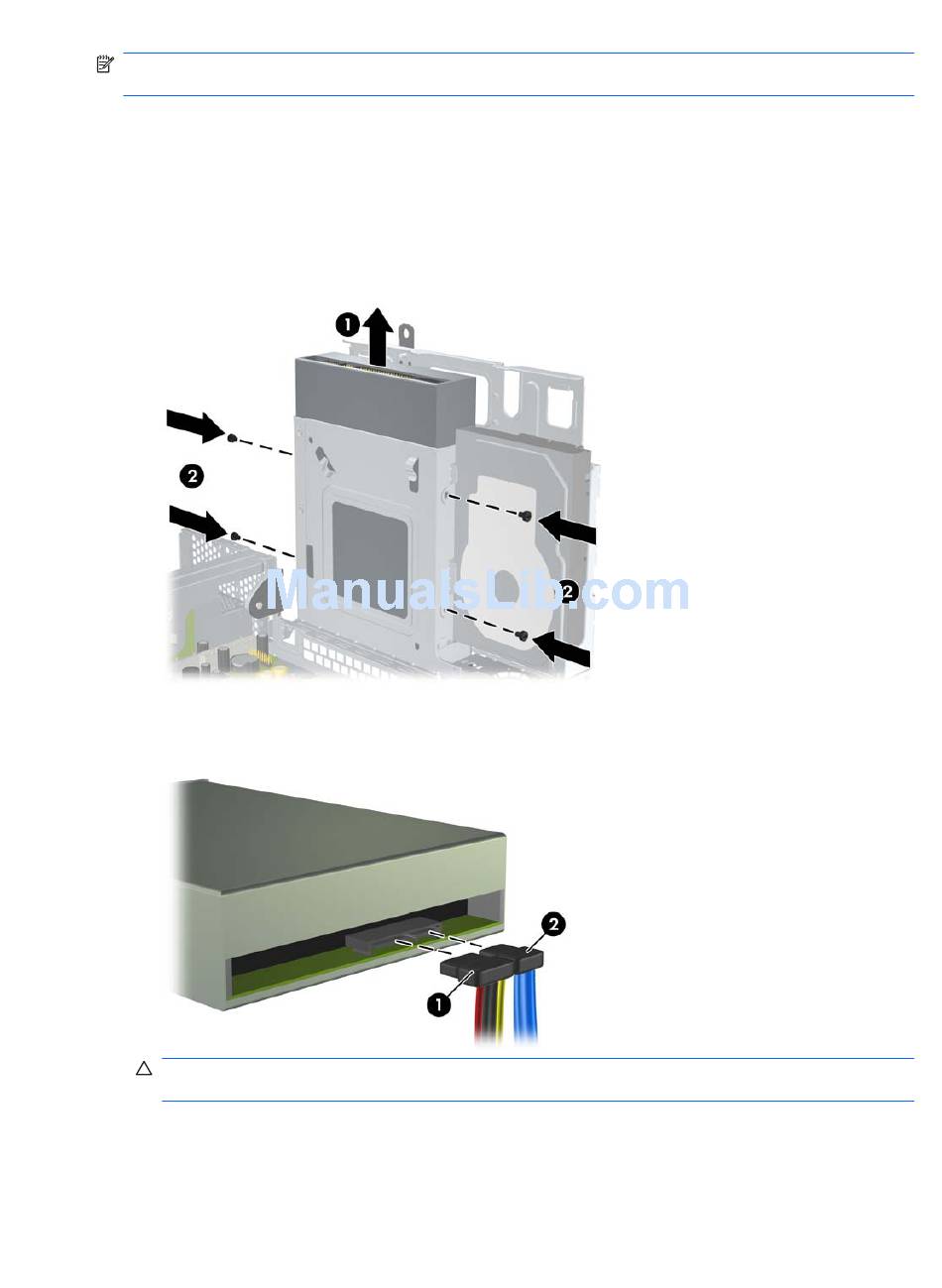

Figure 6-38
Installing the Optical Drive
4.
Connect the power cable (1) and data cable (2) to the rear of the optical drive.
Figure 6-39
Connecting the Optical Drive Power and Data Cables
CAUTION:
Never crease or bend a SATA data cable tighter than a 30 mm (1.18 in) radius. A
sharp bend can break the internal wires.
5.
Connect the other end of the SATA data cable to the white system board connector labeled SATA
1.
Drives
63
