HP 316095-B21 - StorageWorks Edge Switch 2/24 Installation Manual

Edge switch 2/24 installation guide.
Hide thumbs

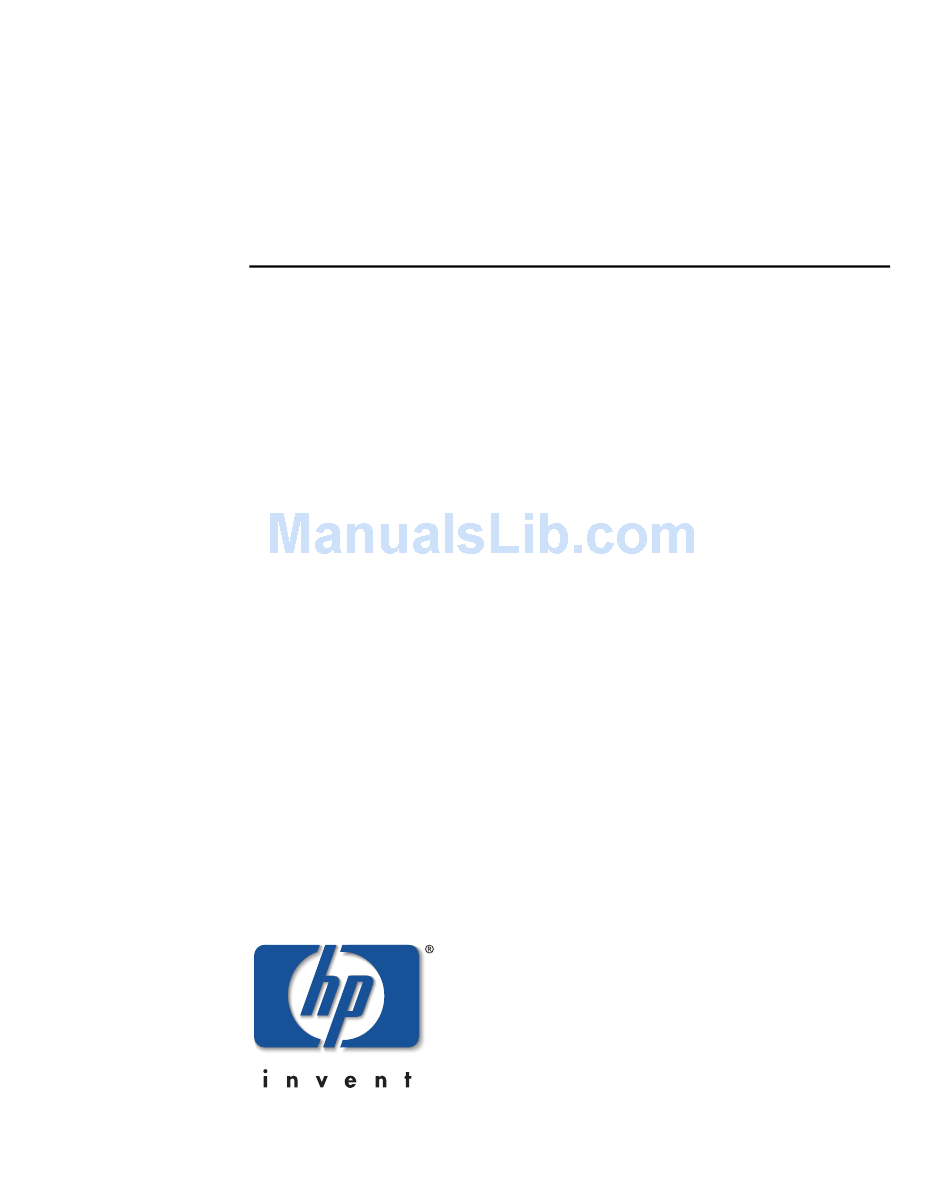

hp StorageWorks
edge switch 2/24 installation guide
Part Number: AA-RTDWA-TE/958-000283-000
First Edition (January 2003)
This installation guide provides procedures for setting up,
configuring, and managing the Edge Switch 2/24.

Advertising

   Related Manuals for HP 316095-B21 - StorageWorks Edge Switch 2/24

   Summary of Contents for HP 316095-B21 - StorageWorks Edge Switch 2/24

  • Page 1

    hp StorageWorks edge switch 2/24 installation guide Part Number: AA-RTDWA-TE/958-000283-000 First Edition (January 2003) This installation guide provides procedures for setting up, configuring, and managing the Edge Switch 2/24.

  • Page 2

    © Hewlett-Packard Company, 2003. All rights reserved. Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

  • Page 3: Table Of Contents

    Contents About This Guide Intended Audience ............ix Related Documentation .

  • Page 4: Table Of Contents

    Command Line Interface ..........1–11 Operational Features.

  • Page 5: A Regulatory Compliance Notices

    Task 10: Verify Switch-to-HAFM Server Communication ....2–37 Task 11: Configure Feature Key (Optional) ......2–39 Task 12: Configure Open Systems Management Server (Optional) .

  • Page 6: B Technical Specifications

    Network and Serial Cables......... . . A–3 IEC EMC Statement (Worldwide) .

  • Page 7

    2–1 Username and Password Required dialog box ......2–7 2–2 Embedded web server interface—View window ..... . . 2–7 2–3 Block or unblock a port from the Configure window.

  • Page 8

    2–39 Configure Threshold Alerts dialog box ......2–58 2–40 New Threshold Alerts dialog box—first screen ..... . . 2–58 2–41 New Threshold Alerts dialog box—second screen .

  • Page 9: Intended Audience, Related Documentation

    • Fibre Channel technology • StorageWorks™ Fibre Channel Switches by Hewlett-Packard Related Documentation For a list of corresponding documentation included with this product, see the Related Documents section of the HP StorageWorks Edge Switch Release Notes. For the latest information, documentation, and firmware releases, please visit the HP StorageWorks website: http://h18006.www1.hp.com/storage/saninfrastructure.html...

  • Page 10: Document Conventions

    About This Guide Document Conventions The conventions included in Table 1 apply. Table 1: Document Conventions Element Convention Cross-reference links Blue text: Figure 1 Key names, menu items, buttons, and Bold dialog box titles File names, application names, and text Italics emphasis User input, command names, system...

  • Page 11

    About This Guide Symbols on Equipment Any enclosed surface or area of the equipment marked with these symbols indicates the presence of electrical shock hazards. Enclosed area contains no operator serviceable parts. WARNING: To reduce the risk of injury from electrical shock hazards, do not open this enclosure.

  • Page 12: Rack Stability, Getting Help, Hp Technical Support

    About This Guide Rack Stability WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that: • The leveling jacks are extended to the floor. • The full weight of the rack rests on the leveling jacks. •...

  • Page 13: Hp Authorized Reseller

    About This Guide HP Website The HP website has the latest information on this product, as well as the latest drivers. http://thenew.hp.com/country/us/eng/prodserv/storage.html. Access storage at: From this website, select the appropriate product or solution. HP Authorized Reseller For the name of your nearest HP Authorized Reseller: •...

  • Page 15: Edge Switch 2/24 Description

    Introduction The HP StorageWorks Edge Switch 2/24 provides dynamic switched connections between Fibre Channel servers and devices in a storage area network (SAN) environment. SANs introduce the concept of server-to-device networking and multi-switch fabrics, eliminate requirements for dedicated connections, and enable the enterprise to become data centric.

  • Page 16: Field Replaceable Units (frus)

    Introduction The switch, shown in Figure 1–1, provides dynamic switched connections for servers and devices, supports mainframe and open-systems interconnection (OSI) computing environments, and provides data transmission and flow control between device node ports (N_Ports) as dictated by the Fibre Channel Physical and Signaling Interface (FC-PH 4.3).

  • Page 17: Front Panel Features

    Introduction Front Panel Features Connectors and indicators include the: • Combined initial machine load and reset (IML/RESET) button. • Ethernet LAN connector. • Green power (PWR) and amber system error (ERR) LEDs. • Green, blue and amber status LEDs associated with FRUs. Figure 1–2 shows the front panel controls, connectors and indicators.

  • Page 18: Power And System Error Leds, Ethernet Lan Connector, Initial Machine Load Button

    Introduction Power and System Error LEDs The PWR LED, as shown in Figure 1–2, illuminates when the switch is connected to facility AC power and powered on. If the LED extinguishes, a facility power source, power cord, or power distribution failure is indicated. The ERR LED, as shown in Figure 1–2, illuminates when the switch detects an event...

  • Page 19: Sfp Transceivers (fibre Channel Ports), Port Leds

    Introduction • Ports, causing all Fibre Channel connections to drop momentarily until the connections automatically recover. This causes attached devices to log out and log back in, therefore data frames lost during switch reset must be retransmitted. A reset should only be performed if a CTP card failure is indicated. As a precaution, the IML/RESET button is flush mounted to protect against inadvertent activation.

  • Page 20: Rear Panel Features, Power Supplies

    Introduction Rear Panel Features The switch provides a modular design that enables quick removal and replacement of field-replaceable power supply assemblies with internal cooling fans. Figure 1–3 illustrates the rear of the switch. Power supplies with internal Maintenance port cooling fans (2) Figure 1–3: Edge Switch 2/24 (Rear View) Power Supplies The switch contains two power supply assemblies with internal cooling fans.

  • Page 21: Maintenance Port, Switch Management, Embedded Web Server (ews)

    Introduction Three cooling fans integrated in each power supply assembly (six fans total) provide cooling for the power supplies and CTP card, as well as redundancy for continued operation if a single fan fails. Fans are removed and replaced as part of the integrated power supply.

  • Page 22: High Availability-fabric Manager And Product Manager Applications

    Introduction At the browser, enter the Internet Protocol (IP) address of the switch as the Internet uniform resource locator (URL). When prompted at a login screen, enter a user name and password. Refer to the hp StorageWorks embedded web server user guide for more information. High Availability-Fabric Manager and Product Manager Applications As an option, the switch can be managed through an High Availability-Fabric...

  • Page 23

    Introduction The HAFM server, as shown in Figure 1–5 is a notebook personal computer (PC) that provides a central point of control for up to 48 LAN-connected Directors or Edge Switches. Figure 1–5: HAFM server The server is mounted in a slide-out drawer in the HP-supplied equipment rack. The HAFM server or Ethernet access to the embedded web server (EWS) interface is required to install, configure, and manage the Edge Switch 2/24.

  • Page 24: Remote Workstations, Lan Interface Options

    Introduction Remote Workstations Using a standard web browser, the HAFM and Edge Switch 2/24 Product Manager applications can be downloaded and installed on remote user workstations that are LAN-attached to the HAFM server. Operators at these workstations can manage and monitor switches controlled by the HAFM server.

  • Page 25: Minimum Remote Workstation Requirements, Command Line Interface

    NT 4.0, or Linux 2.2 operating system. • Unix workstation with color monitor, keyboard, and mouse, using a: ® — Hewlett-Packard HA PA-RISC processor with a 400 MHz or greater clock ® speed, using the HP-UX 11 or higher operating system.

  • Page 26: Operational Features, Error-detection, Reporting, And Serviceability Features

    Introduction Operational Features The Edge Switch 2/24 supports several operational features including: • Advanced error detection, reporting and serviceability. • Ability to create logical zones and zone sets. • Support for multi-switch fabrics. • Software diagnostics to aid in fault isolation and repair. Error-Detection, Reporting, and Serviceability Features The switch provides the following error detection, reporting, and serviceability features:...

  • Page 27

    HAFM application to receive unsolicited SNMP trap messages. The trap messages indicate operational state changes and failure conditions. NOTE: For more information about SNMP support provided by Hewlett-Packard products, refer to the hp StorageWorks SNMP reference guide for directors and edge switches.

  • Page 28: Software Diagnostics, Multi-switch Fabrics

    Introduction CAUTION: If zoning is implemented by port number, a change to the switch fiber-optic cable configuration disrupts zone operation and may incorrectly include or exclude a device from a zone. If zoning is implemented by WWN, removal and replacement of a device HBA or Fibre Channel interface (thereby changing the device WWN) disrupts zone operation and may incorrectly include or exclude a device from a zone.

  • Page 29: Optional Kits

    • E-mail messages or call-home reports provide automatic notification of significant system events to designated support personnel or administrators. Optional Kits Contact your Hewlett-Packard authorized service provider to purchase the following optional Edge Switch 2/24 kits. See Table 1–1. Table 1–1: Edge Switch 2/24 Optional Kits...

  • Page 31: Summary Of Installation Tasks

    Installing and Configuring the Edge Switch 2/24 This chapter describes tasks to install, configure, and verify operation of the Edge Switch 2/24. The switch can be installed on a table or desk top, or mounted in any standard equipment rack. For a list of the factory-set defaults for the switch and the Reset Configuration option, refer to Appendix...

  • Page 32

    Installing and Configuring the Edge Switch 2/24 Table 2–1: Installation Task Summary (Continued) Task Number and Description Required or Optional Page Task 5: Configure Network Information Optional—configure if connecting 2–29 multiple switches or if connecting a switch and HAFM server to a public LAN.

  • Page 33: Installation Options, Task 1: Verify Installation Requirements

    Installing and Configuring the Edge Switch 2/24 Installation Options The switch is installed in one of two configurations. The options are: • Table or desk top—one or more switches, an optional HAFM server, and an optional Ethernet hub are delivered and installed at the customer facility on a desk or table top.

  • Page 34: Task 3: Unpack, Inspect, And Install The Switch, Unpack And Inspect The Switch

    Ensure that all items on the enclosed shipping list are in each container. 3. If any items are damaged or missing, customers should contact a Hewlett-Packard authorized service provider or reseller. edge switch 2/24 installation guide...

  • Page 35: Desktop Installation

    Installing and Configuring the Edge Switch 2/24 Desktop Installation To install and configure the switch on a desktop: 1. Remove the backing from the three adhesive rubber pads and apply the pads to the underside of the switch. Ensure the pads are aligned with the scribed circles in the front and rear of the switch.

  • Page 36: Rack-mount Installation

    Installing and Configuring the Edge Switch 2/24 c. The green LEDs associated with the Ethernet port blink momentarily while the port is tested. d. The green/blue and amber LEDs associated with Fibre Channel ports blink momentarily while the ports are tested. 7.

  • Page 37

    Installing and Configuring the Edge Switch 2/24 2. At the PC, launch the browser application (Netscape Navigator or Internet Explorer). 3. At the browser, enter the IP address of the switch as the internet uniform resource locator (URL). Use the default IP address of 10.1.1.10, the factory preset of 10.1.1.10, or the IP address configured while performing “Task 5: Configure Network...

  • Page 38: Configure Switch Ports

    Installing and Configuring the Edge Switch 2/24 Configure Switch Ports Perform the procedure in this section to configure names and operating characteristics for the switch ports. To configure one or more ports: 1. At the View window, click Configure at the left side of the window. The Configure window opens with the Ports tab displayed.

  • Page 39: Configure Switch Identification

    Installing and Configuring the Edge Switch 2/24 d. Select a Type field and choose generic port (G_Port), fabric port (F_Port), or expansion port (E_Port) from the list box.If F_Port or E_Port is selected, the port will only operate as the port type selected. If G_Port is selected, the port type is automatically detected and will operate as an E_Port or F_Port.

  • Page 40

    Installing and Configuring the Edge Switch 2/24 a. Type a switch name of 24 alphanumeric characters or less in the Name field. Each switch should be configured with a unique name. If the switch is installed on a public LAN, the name should reflect the switch’s Ethernet network DNS host name.

  • Page 41: Configure Date And Time

    Installing and Configuring the Edge Switch 2/24 Configure Date and Time Perform this procedure to configure the effective date and time for the switch. To set the date and time: 1. At the Configure window, click the Switch tab, then select Date/Time tab. The Switch page displays with Date/Time tab selected (highlighted red), as shown in Figure 2–5.

  • Page 42: Configure Operating Parameters

    Installing and Configuring the Edge Switch 2/24 Configure Operating Parameters The switch must be set offline to configure operating parameters. To configure the parameters: 1. Set the switch offline as follows: a. Choose Operations at the left side of the window. The Operations window opens with the Switch tab displayed.

  • Page 43

    Installing and Configuring the Edge Switch 2/24 a. At the Preferred Domain ID field, type a value between 1 through 31. The domain ID uniquely identifies each switch in a fabric. If the switch is attached to a fabric element, the switch and element must have unique domain IDs.

  • Page 44: Configure Fabric Parameters

    Installing and Configuring the Edge Switch 2/24 Configure Fabric Parameters Perform this procedure to configure the fabric operating parameters, including resource allocation time out value (R_A_TOV), E_D_TOV, switch priority, and interop mode. The switch must be set offline. To configure parameters: 1.

  • Page 45

    Installing and Configuring the Edge Switch 2/24 a. At the R_A_TOV field, type a value between 10 through 1200 tenths of a second (one through 120 s). The default is 100 tenths of a second (10 s). NOTE: All fabric-attached switches must be set to the same R_A_TOV. If the value is not compatible, the E_Port connection to the switch segments and the switch cannot communicate with the fabric.

  • Page 46: Configure Network Information

    Installing and Configuring the Edge Switch 2/24 4. Click Activate to save the information. The message, Your changes to the operating parameters configuration have been successfully activated, displays. 5. Set the switch online as follows: a. Choose Operations at the left side of the window. The Operations window opens with the Switch tab displayed.

  • Page 47

    Installing and Configuring the Edge Switch 2/24 Figure 2–8: Switch page—Network tab a. At the IP Address field, type the new value as specified by the customer’s network administrator (default is 10.1.1.10, factory preset is 10.1.1.10). b. At the Subnet Mask field, type the new value as specified by the customer’s network administrator (default is 255.0.0.0).

  • Page 48: Configure Snmp Trap Message Recipients

    Installing and Configuring the Edge Switch 2/24 4. Update the address resolution protocol (ARP) table for the browser PC. a. Choose File >Exit to close the embedded web server and browser applications. The Windows desktop displays. b. Choose Start > Programs > Command Prompt. A disk operating system (DOS) window displays.

  • Page 49

    Installing and Configuring the Edge Switch 2/24 Figure 2–10: Management page—SNMP tab a. For each trap recipient to be configured, type a community name of 32 alphanumeric characters or less in the associated Community Name field. The community name is incorporated in SNMP trap messages to ensure against unauthorized viewing or use.

  • Page 50: Enable Or Disable The Cli

    Installing and Configuring the Edge Switch 2/24 Enable or Disable the CLI Perform this procedure to toggle (enable or disable) the state of the switch’s command line interface. To change the CLI state: 1. At the Configure window, click the CLI tab. The Management page displays with the CLI tab selected, as shown in Figure 2–11.

  • Page 51: Enable Or Disable Host Control

    Installing and Configuring the Edge Switch 2/24 Enable or Disable Host Control Perform this procedure to toggle (enable or disable) host control of the switch through the OSMS. The OSMS feature must be installed to access this control. Refer to “Task 12: Configure Open Systems Management Server (Optional)”...

  • Page 52: Configure Zones

    Installing and Configuring the Edge Switch 2/24 Configure Zones Perform this procedure to configure, change, add, or delete zones. A zone is a group of devices that can access each other through port- to-port connections. Devices in the same zone can recognize and communicate with each other; devices in different zones cannot.

  • Page 53

    Installing and Configuring the Edge Switch 2/24 — Valid characters are alphanumerics and the caret ( ^ ), hyphen ( - ), underscore ( _ ), or dollar ( $ ) symbols. — A zone set name can have a maximum of 64 characters. 3.

  • Page 54

    Installing and Configuring the Edge Switch 2/24 Figure 2–14: Zoning page—Modify Zone tab 5. To rename a configured zone, type the new name in the Zone field and click Rename Zone. After the name is validated, the zone name is changed. 6.

  • Page 55: Configure Zone Sets

    Installing and Configuring the Edge Switch 2/24 — Delete a member - To delete a zone member, click the Delete button adjacent to the configured zone member (WWN or domain ID and port number) at the bottom of the page. A confirmation dialog box displays. Click OK to delete the zone member.

  • Page 56: Configure User Rights

    Installing and Configuring the Edge Switch 2/24 3. Click Save and Activate Zoning Configuration. After the zone set name is validated, a confirmation dialog box displays. 4. Click OK to save and activate the new zone set. The message “Your changes to the Zoning configuration have been successfully activated”...

  • Page 57

    Installing and Configuring the Edge Switch 2/24 c. Type the administrator password again in the Confirm New Password field, as shown in Figure 2–16. Figure 2–16: User Rights page 3. For the Operator set of data fields: a. Type the operator user name (as specified by the customer’s network administrator) in the New User Name field.

  • Page 58: Install Feature Keys (optional)

    Installing and Configuring the Edge Switch 2/24 Install Feature Keys (Optional) Perform this procedure to install one or more of the following optional features: • OSMS - These feature allows open systems host control of the switch. • Flexport - A Flexport switch is delivered at a discount with only eight ports enabled.

  • Page 59: Task 5: Configure Network Information

    Installing and Configuring the Edge Switch 2/24 3. Type the feature key and click Activate. The interface displays a confirmation page with a warning, stating this action overrides the current set of switch features. 4. Click Activate to activate the new feature key. The switch performs an IPL when the feature key is activated.

  • Page 60

    Installing and Configuring the Edge Switch 2/24 • Subnet mask—the default subnet mask is 255.0.0.0. If the switch is installed on a complex public LAN with one or more routers, the address may require change. • Gateway address—the default gateway address is 0.0.0.0. If the switch is installed on a dedicated LAN with no connection through a router, the address does not require change.

  • Page 61

    Installing and Configuring the Edge Switch 2/24 4. Choose Start > Programs > Accessories > Communications >HyperTerminal. The Connection Description dialog box displays, as shown in Figure 2–18. Figure 2–18: Connection Description dialog box 5. Type edge switch 2-24 in the Name field and click OK. The Connect To dialog box displays, as shown in Figure 2–19.

  • Page 62

    Installing and Configuring the Edge Switch 2/24 6. Ensure the Connect using field displays COM1 or COM2 (depending on the serial communication port connection to the switch), and click OK. The Port Settings dialog box displays, as shown in Figure 2–20.

  • Page 63

    Installing and Configuring the Edge Switch 2/24 Figure 2–21: HyperTerminal window 9. At the C> prompt, type ipconfig and press Enter. The HyperTerminal window displays with configuration information listed as follows: — MAC Address — IP Address (default is 10.1.1.10, factory preset is 10.1.1.10) —...

  • Page 64

    Installing and Configuring the Edge Switch 2/24 The IP address is always xxx.xxx.xxx.xxx, the subnet mask is always yyy.yyy.yyy.yyy, and the gateway address is always zzz.zzz.zzz.zzz, where the octets xxx, yyy, and zzz are decimals from zero through 255. If a network address is to remain unchanged, type the current address in the respective field.

  • Page 65: Task 6: Lan-connect The Switch

    Installing and Configuring the Edge Switch 2/24 Task 6: LAN-Connect the Switch Connect the switch to the customer-supplied Ethernet LAN segment or the HP-supplied Ethernet hub. To connect the desktop or rack-mounted switch to the Ethernet LAN segment: 1. Connect one end of the Ethernet patch cable (supplied with the switch) to the RJ-45 connector (labeled 10/100) on the left front of the chassis.

  • Page 66: Task 8: Configure The Switch To The Hafm Application

    Installing and Configuring the Edge Switch 2/24 Task 8: Configure the Switch to the HAFM Application To manage a new switch, it must be identified to the HAFM application. To identify the new switch: 1. Right-click in a blank area of the Product View and select New or click Product on the menu bar and choose New.

  • Page 67: Task 10: Verify Switch-to-hafm Server Communication

    Installing and Configuring the Edge Switch 2/24 Task 10: Verify Switch-to-HAFM Server Communication Communication must be verified between the switch and the HAFM server (High Availability Fabric Manager and product manager applications). To verify switch-to-server communication: 1. At the Windows 2000 desktop, click HAFM at the task bar (bottom of the desktop) to maximize the Product View.

  • Page 68

    Installing and Configuring the Edge Switch 2/24 Figure 2–25: Switch Hardware View 4. Inspect switch status at the Hardware View and perform one of the following steps: a. If the switch displays operational (no FRU alert symbols and a green circle at the alert panel), go to “Task 13: Set Switch Date and Time”...

  • Page 69: Task 11: Configure Feature Key (optional), Task 11: Configure Feature Key (optional)

    Installing and Configuring the Edge Switch 2/24 Task 11: Configure Feature Key (Optional) Perform this task to display or install operating features that are available as customer-specified options. Available features include: • OSMS - Open systems management server. This feature allows open systems host control of the switch.

  • Page 70

    Installing and Configuring the Edge Switch 2/24 3. Click New. The New Feature Key dialog box displays, as shown in Figure 2–27. Figure 2–27: New Feature Key dialog box 4. Type the feature key (case-sensitive xxxx-xxxx-xxxx-xx format) and click OK. The Enable Feature Key dialog box displays, as shown in Figure 2–28.

  • Page 71: Task 13: Set Switch Date And Time

    Installing and Configuring the Edge Switch 2/24 Task 12: Configure Open Systems Management Server (Optional) Perform this task to configure the open systems management server (OSMS) and enable OSI host control of the switch. Implementing host control requires installation of a SAN management application on the OSI server. Management applications include Veritas SANPoint Control (Version 1.0 or later), or Tivoli NetView (Version 6.0 or later).

  • Page 72: Set Date And Time Manually

    Installing and Configuring the Edge Switch 2/24 The switch date and time can be set manually, or set to be periodically updated by the HAFM application (the switch and HAFM application synchronize at least once daily). Figure 2–30: Configure Date and Time dialog box Set Date and Time Manually To set the switch date and time manually: 1.

  • Page 73: Periodically Synchronize Date And Time, Task 14: Configure The Edge Switch 2/24 Product Manager Application

    Installing and Configuring the Edge Switch 2/24 Periodically Synchronize Date and Time To set the switch to periodically synchronize date and time with the HAFM application: 1. Click Periodic Date/Time Synchronization to select the option (check mark in the box). The Date and Time fields are greyed out and not selectable. Perform one of the following options: •...

  • Page 74

    Installing and Configuring the Edge Switch 2/24 • Configure SNMP trap message recipients. • Configure threshold alerts. • Enable Embedded Web Server and Telnet access. • Configure and enable e-mail notification. • Enable call-home notification. Configure Switch Identification Perform this procedure to configure the switch name, description, location, and contact person for the HAFM application.

  • Page 75: Configure Switch Parameters

    Installing and Configuring the Edge Switch 2/24 c. Type a switch description of 255 alphanumeric characters or less in the Description field. d. Type the switch’s physical location (255 alphanumeric characters or less) in the Location field. e. Type the name of a contact person (255 alphanumeric characters or less) in the Contact field.

  • Page 76

    Installing and Configuring the Edge Switch 2/24 b. Click the Insistent Domain ID check box to enable or disable this parameter. A check mark in the box indicates the parameter is enabled. When the parameter is enabled, the domain ID configured in the Preferred Domain ID field becomes the active domain identification when the fabric initializes.

  • Page 77

    Installing and Configuring the Edge Switch 2/24 Figure 2–34: Configure Fabric Parameters dialog box a. At the R_A_TOV field, type a value between 10 through 1200 tenths of a second (one through 120 seconds). If the switch is attached to a fabric element, the switch and element must be set to the same R_A_TOV value.

  • Page 78: Configure Switch Binding

    Installing and Configuring the Edge Switch 2/24 Never Principal is the lowest priority setting. The setting Never Principal means the switch is incapable of becoming a principal switch. If all switches are set to Principal or Default, the switch with the highest priority and the lowest WWN becomes the principal switch.

  • Page 79: Online State And Switch Binding

    Installing and Configuring the Edge Switch 2/24 • When switch binding is enabled with the switch online, the membership list is automatically populated with the WWNs of all devices and fabric elements connected to the switch. • When switch binding is enabled with the switch offline, the membership list is not automatically populated.

  • Page 80: Zoning And Switch Binding, Enable Or Disable Switch Binding

    Installing and Configuring the Edge Switch 2/24 Zoning and Switch Binding SANtegrity switch binding parameters have no effect on zoning configurations. However, if a device WWN is in a specific zone, but the WWN is not in the membership list, the device cannot log in to a switch port and cannot connect to other devices in the zone with switch binding enabled.

  • Page 81: Edit Membership List

    Installing and Configuring the Edge Switch 2/24 • Restrict F_Ports - Select this button to restrict connections from specific devices to switch F_Ports or FL_Ports. WWNs can be added to the membership list to allow device connection and removed from the list to prohibit device connection.

  • Page 82

    Installing and Configuring the Edge Switch 2/24 Figure 2–36: Switch Binding - Membership List dialog box 2. If nicknames are configured (through the HAFM application) and are to be displayed instead of WWNs, click Display Options. The Display Options dialog box displays .

  • Page 83

    Installing and Configuring the Edge Switch 2/24 5. To add a WWN or nickname for a device not connected to the switch, click Detached Node. The Add Detached Node dialog box displays. 6. Type the device WWN or nickname and click OK. The WWN or nickname appears in the Switch Membership List.

  • Page 84

    Installing and Configuring the Edge Switch 2/24 a. Select a blank Name field and type a descriptive port name of 24 or fewer alphanumeric characters. Use a name that reflects the device connected to the port. b. Click Blocked check box to block or unblock a port. A check mark in the box indicates the port is blocked.

  • Page 85

    Installing and Configuring the Edge Switch 2/24 g. Click the check box in the Port Binding column to enable or disable port binding (default is disabled). A check mark in the box indicates port binding is enabled and the port can connect only to a device with a WWN listed in the Bound WWN column.

  • Page 86

    Installing and Configuring the Edge Switch 2/24 Figure 2–38: Configure SNMP Agent dialog box a. For each trap recipient to be configured, type a community name of 32 alphanumeric characters or less in the associated Community Name field. The community name is incorporated in SNMP trap messages to ensure against unauthorized viewing or use.

  • Page 87: Configure Threshold Alerts

    Installing and Configuring the Edge Switch 2/24 Configure Threshold Alerts A threshold alert notifies users when the transmit (Tx) or receive (Rx) throughput reaches specified values for specific switch ports or port types, (E_Ports or F_Ports). You are notified of a threshold alert in four ways: •...

  • Page 88: Create New Alert

    Installing and Configuring the Edge Switch 2/24 Create New Alert 1. At the Hardware View for the selected switch, choose Configure > Threshold Alerts. The Configure Threshold Alerts dialog box displays, as shown in Figure 2–39. If alerts are configured, they will display in table format showing the name of the alert, type of alert (Rx, TX, or Rx or Tx), and alert state (inactive or active).

  • Page 89

    Installing and Configuring the Edge Switch 2/24 3. Enter a name from one to 64 characters in length. All characters in the ISO Latin-1 character set, excluding control characters, are allowed. 4. Select one of the following options from the drop-down list under the Name field: •...

  • Page 90

    Installing and Configuring the Edge Switch 2/24 9. Click Next. A new screen displays for selecting ports for the alerts, as shown in Figure 2–42. Figure 2–42: New Threshold Alerts dialog box—third screen 10. Either select Port Type or Port List. •...

  • Page 91

    Installing and Configuring the Edge Switch 2/24 11. Click Next. A final screen displays to provide a summary of your alert configuration. To make any changes, backwards and forwards through the configuration screens by selecting Previous and Next, as shown in Figure 2–43.

  • Page 92: Modify An Alert

    Installing and Configuring the Edge Switch 2/24 Modify an Alert Use the following steps to modify an existing threshold alert configuration. 1. Choose Configure > Threshold Alerts. The Configure Threshold Alerts dialog box displays. 2. Select the alert that you want to modify by clicking the alert information in the table.

  • Page 93: Activate Or Deactivate Alerts, Delete Alerts, Enable The Ews Interface And Telnet Access

    Installing and Configuring the Edge Switch 2/24 Activate or Deactivate Alerts Use the following steps to activate or deactivate existing threshold alerts. In the active state, notifications are generated for the alert. In the inactive state, notifications do not occur. 1.

  • Page 94: Configure And Enable E-mail Notification

    Installing and Configuring the Edge Switch 2/24 Configure and Enable E-mail Notification Perform this procedure to configure and enable e-mail addresses and simple mail transfer protocol (SMTP) server addresses to receive e-mail notification of switch (and other managed product) events. The addresses must be configured at the HAFM application, then enabled.

  • Page 95: Configure And Enable Call-home Features, Task 15: Test Remote Notification (optional)

    Installing and Configuring the Edge Switch 2/24 3. Double-click the switch icon. The Hardware View for the selected switch displays. 4. At the Hardware View for the selected switch, choose Maintenance > Enable E-Mail Notification. A check mark displays in the check box to indicate e-mail notification for the switch is enabled, and the menu closes.

  • Page 96: Task 16: Back Up Hafm Configuration Data, Task 17: Cable Fibre Channel Ports

    Installing and Configuring the Edge Switch 2/24 5. Verify with recipients that call-home and e-mail notifications were received. Figure 2–47: Information dialog box Task 16: Back Up HAFM Configuration Data It is important to back up the HAFM configuration data. This data is used to restore the HAFM server operating environment in case of hard drive failure.

  • Page 97: Task 18: Connect Switch To A Fabric (optional)

    Installing and Configuring the Edge Switch 2/24 Task 18: Connect Switch to a Fabric (Optional) To provide Fibre Channel connectivity between public devices and fabric-attached devices, connect the switch to an expansion port (E_Port) of an HP Director or Edge Switch.

  • Page 98

    Installing and Configuring the Edge Switch 2/24 c. Choose the port number of the port used to make this ISL connection. d. Ensure the Operational State field displays Online and the Reason field displays N/A or is blank. If an ISL segmentation or other problem is indicated, refer to the hp StorageWorks edge switch 2/32 service manual to isolate the problem.

  • Page 99: Regulatory Compliance Notices, Regulatory Compliance Id Numbers

    Conformity, page A–8 Regulatory Compliance ID Numbers For the purpose of regulatory compliance certifications and identification, your HP StorageWorks Edge Switch 2/24 is assigned a Hewlett-Packard Regulatory Model Number. The Hewlett-Packard Regulatory Model Number for this product is: RSVLB-0216 The HP StorageWorks Edge Switch 2/24 Regulatory Model Number can be found on the product label, along with the required approval markings and information.

  • Page 100: Federal Communications Commission Notice

    Regulatory Compliance Notices Federal Communications Commission Notice Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic devices, including computers, generate RF energy incidental to their intended function and are, therefore, covered by these rules. These rules place computers and related peripheral devices into two classes, A and B, depending upon their intended installation.

  • Page 101: Network And Serial Cables

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment. Network and Serial Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to maintain compliance with FCC Rules and Regulations.

  • Page 102: European Union Notice

    Regulatory Compliance Notices IEC EMC Statement (Worldwide) This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. Spécification ATI Classe A (France) DECLARATION D'INSTALLATION ET DE MISE EN EXPLOITATION d'un matériel de traitement de l'information (ATI), classé...

  • Page 103: Japanese Notice, Taiwanese Notice

    Regulatory Compliance Notices • EN55024 1998 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11)-Electromagnetic Immunity • EN60950 (IEC60950)-Product Safety • Power Quality: (IEC610000-3-2)-Harmonics and (IEC61000-3-3)-Voltage Fluctuations and Flicker • Also approved under UL 1950, 3rd Edition/CSA C22.2 No. 950-95, Safety of Information Technology Equipment Japanese Notice Taiwanese Notice...

  • Page 104: German Noise Declaration, Laser Safety, Certification And Classification Information

    Do not operate controls, make adjustments, or perform procedures to the laser device other than those specified herein. • Allow only Hewlett-Packard authorized service technicians to repair the laser device. Certification and Classification Information This product contains a laser internal to the Optical Link Module (OLM) for connection to the Fibre communications port.

  • Page 105

    Regulatory Compliance Notices The OLM includes the following certifications: • UL Recognized Component (USA) • CSA Certified Component (Canada) • TUV Certified Component (European Union) • CB Certificate (Worldwide) The following figure shows the Class 1 information label that appears on the metal cover of the OLM housing.

  • Page 106: Declaration Of Conformity

    Regulatory Compliance Notices Declaration of Conformity The Declaration of Conformity is shown on the next page. A–8 edge switch 2/24 installation guide...

  • Page 107: Technical Specifications, Factory Defaults

    Technical Specifications This appendix contains the following information: • Factory Defaults, page B–1 • Physical Dimensions, page B–3 • Environmental Specifications, page B–4 • Power Requirements, page B–4 • Operating Tolerances, page B–5 • Laser Information, page B–5 Factory Defaults Table B–1 lists the defaults for the passwords, and IP, subnet, and gateway addresses.

  • Page 108

    Technical Specifications Table B–2 provides the Edge Switch factory-default values for Reset Configuration option. Table B–2: Switch Factory-Default Values for Reset Configuration Option Configuration Description Default Identification Switch Name NULL string Switch Description “Fibre Channel Switch” Switch Contact “End User Contact (please configure)”...

  • Page 109: Physical Dimensions

    Technical Specifications Table B–2: Switch Factory-Default Values for Reset Configuration Option Configuration Description Default SNMP SNMP Communities “public” — 5 NULL strings SNMP Write Authorizations Read only per community Trap Recipient IP Addressees 0 for each UDP Port SNMP Authorization Trap State disabled Management Active Equal Saved State...

  • Page 110: Environmental Specifications, Power Requirements

    Technical Specifications Environmental Specifications Figure B–4 lists environmental ranges for shipping, storing, and operating the HP StorageWorks Edge Switch 2/24. Table B–4: Environmental Specifications Specification Shipping Storage Operating Weight 18.1 kg (40 lb) 7.7 kg (17 lb) 7.7 kg (17 lb) Temperature -40°...

  • Page 111: Operating Tolerances, Laser Information

    Technical Specifications Operating Tolerances Table B–6 lists heating and cooling specifications, shock tolerances, vibration, acoustical noise and inclination. Table B–6: Operating Tolerances Specification Value Heat dissipation 49 watts (167 BTU/hr) Cooling airflow Right and left sides: 1.3 cm (0.5 inches) clearances Front and rear: 7.6 cm (3.0 in) Top and bottom: No clearance required...

  • Page 113: Precautions Against Electrostatic Discharge

    Electrostatic Discharge This appendix contains the following information. • Precautions Against Electrostatic Discharge • Ground Methods Precautions Against Electrostatic Discharge To prevent damaging the system, be aware of the precautions you need to follow when setting up the system or handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices.

  • Page 114: Grounding Methods

    Electrostatic Discharge Grounding Methods There are several methods for grounding. Use one or more of the following methods when handling or installing electrostatic-sensitive parts: • Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm 10 percent resistance in the ground cords.

  • Page 115

    Glossary The following cross-references are used in this glossary: Contrast with. This refers to a term that has an opposite or substantively different meaning. See. This refers the reader to another keyword or phrase for the same term. See also. This refers the reader to definite additional information contained in another entry. access control List of all devices that can access other devices across the network and the permissions associated with that access.

  • Page 116

    Glossary alias server Fabric software facility that supports multicast group management. arbitrated loop One of the three connection topologies offered by Fibre Channel. Up to 126 node ports and one fabric port can communicate without the need for a separate switched fabric. See also point to point.

  • Page 117

    Glossary bit error rate A comparison of the number of bits received incorrectly by a device to the total number of bits transmitted. blocked port Devices communicating with the port are prevented from logging into the switch or communicating with other devices attached to the switch. A blocked port continuously transmits the offline sequence.

  • Page 118

    Glossary class of Fibre Channel service Defines the level of connection dedication, acknowledgment, and other characteristics of a connection. Class F Fibre Channel service Used by switches to communicate across interswitch links (ISLs) to configure, control, and coordinate a multi-switch fabric. Class 2 Fibre Channel service Provides a connectionless (not dedicated) service with notification of delivery or nondelivery between two N_Ports.

  • Page 119

    Glossary connector See optical fiber connector. control processor card Circuit card that contains the switch microprocessor. The CTP card also initializes hardware components of the system after power-on. Note that the CTP card on this switch is not a FRU. control unit A hardware unit that controls the reading, writing, or displaying of data at one or more input/output units.

  • Page 120

    Glossary datagram See Class 3 Fibre Channel service. default Pertaining to an attribute, value, or option that is assumed when none is explicitly specified. default zone Contains all attached devices that are not members of a separate zone. destination address Address identifier that indicates the targeted destination of a data frame.

  • Page 121

    Glossary E_Port See expansion port. E_D_TOV See error-detect time-out value. Embedded Web Server A management interface embedded on the switch’s code which offers features similar to, but not as robust as, the HAFM and Product Manager. error-detect time-out value E_D_TOV defines the time the switch waits for an expected response before declaring an error condition.

  • Page 122

    Glossary explicit fabric login Data field size, supported by an F-Port, that is agreed upon during fabric login. fabric Entity that interconnects N_Ports and is capable of routing (switching) Fibre Channel frames using the destination ID information in the Fibre Channel frame header accompanying the frames.

  • Page 123

    Glossary Fibre Channel Integrated set of standards recognized by ANSI which defines specific protocols for flexible information transfer. Logically, a point-to-point serial data channel, structured for high performance. Fibre Channel fabric element Any device linked to a fabric. Information about these devices is recorded in a management information base (MIB) which can be accessed by fabric management software.

  • Page 124

    Glossary gateway address A unique string of numbers (in the format xxx.xxx.xxx.xxx) that identifies a gateway on the network. GBIC GigaBit Interface Converter. A removable module that converts an electrical serial data stream to an optical or amplified electrical serial data stream. Contains connector for attaching fiber optic cable.

  • Page 125

    Glossary hexadecimal A number system with a base of 16. high availability A performance feature characterized by hardware component redundancy and hot-swappability (enabling non-disruptive maintenance). High-availability systems maximize system uptime while providing superior reliability, availability, and serviceability. Data transfer from one node to another node. hop count ISL connections.

  • Page 126

    Glossary initial program load Process of initializing the device and causing the operating system to start. Initiated through a menu in the Product Manager. interface Hardware, software, or both, linking systems, programs, or devices. Internet Protocol The TCP/IP standard protocol that defines the IP datagram as the unit of information passed across an internet and provides the basis for connectionless, best-effort packet delivery service.

  • Page 127

    Glossary jumper cable Optical cable that provides physical attachment between two devices or between a device and a distribution panel. Contrast with trunk cable. laser Light Amplification through Simulated Emissions of Radiation. A device that uses the oscillation of atoms or molecules between energy levels to generate a narrow, finely focused beam of light.

  • Page 128

    Glossary logical unit number Also known as LUN. In Fibre Channel addressing, a logical unit number is a number assigned to a storage device which, in combination with the storage device’s node port’s world-wide name, represents a unique identifier for a logical device on a storage area network. loopback plug In a fiber optic environment, a type of duplex connector used to wrap the optical output signal of a device directly to the optical input.

  • Page 129

    Glossary multicast Delivery of a single transmission to multiple destination N_Ports. Can be one to many or many to many. All members of the group are identified by one IP address. multi-switch fabric Fibre Channel fabric created by linking more than one fabric switching device within a fabric. name server Program that translates names from one form into another.

  • Page 130

    Glossary offline state When the switch is in the offline state, all the installed ports are offline. The ports transmit an OLS (offline sequence) and they cannot accept a login for connection from an attached device. Contrast with online state. See offline sequence.

  • Page 131

    Glossary optical fiber connector Hardware component that transfers optical power between two optical fibers or bundles and is designed to be repeatedly connected and disconnected. out-of-band management Transmission of management information using frequencies or channels other than those routinely used for information transfer. packet Logical unit of information (usually in the form of a data frame) transmitted on a network.

  • Page 132

    Glossary power-on self-test Series of self-tests executed each time the unit is booted or reset. preferred domain ID Domain ID that a switch is assigned by the principal switch in a switched fabric. The preferred domain ID becomes the active domain ID except when configured otherwise by the user. principal switch In a multi-switch fabric, the switch that allocates domain IDs to itself and to all other switches in the fabric.

  • Page 133

    Glossary remote notification A process by which a system is able to inform remote users and/or workstations of certain classes of events that occur on the system. E-mail notification and the configuration of SNMP trap recipients are two examples of remote notification programs that can be implemented. remote user workstation Workstation, such as a PC, using HAFM and Product Manager software that can access the HAFM server over a LAN connection.

  • Page 134

    Glossary simple mail transfer protocol The standard e-mail protocol on the Internet. It is a TCP/IP protocol that defines the message format and the message transfer agent, which stores and forwards the mail. SMTP See simple mail transfer protocol. SNMP Simple Network Management Protocol.

  • Page 135

    Glossary StorageWorks HA-Fabric Manager Software application that is the system management framework providing the user interface for managing HP Fibre Channel connectivity products. The HAFM can run both locally on the HAFM server and remotely on a user workstation. subnet mask A method of representing the portion of the IP network address that is devoted to subnet addresses (as opposed to the portions of the address that refer to individual hosts or to the organizational network overall).

  • Page 136

    Glossary unicast Communication between a single sender and a single receiver over a network. Compare to multicast (communication between a single sender and multiple receivers) and anycast (communication between any sender and the nearest of a group of receivers). Similar in meaning to point-to-point communication.

  • Page 137

    Glossary world-wide names Eight byte address that uniquely identifies a switch, or a node (end device), even on global networks. wrap plug See loopback plug. See world-wide names. zone Set of devices that can access one another. All connected devices may be configured into one or more zones.
