Rear of Server System
A
L
A.
PS2 mouse connector
B.
PCI card bracket (full height)
C.
AC Power Receptacle
D.
Management Network Interface (optional)
E.
IO module external connector (optional)
F.
USB 6 connector
®
Intel
Server System SR1560SF Service Guide
K
J
I
H
G

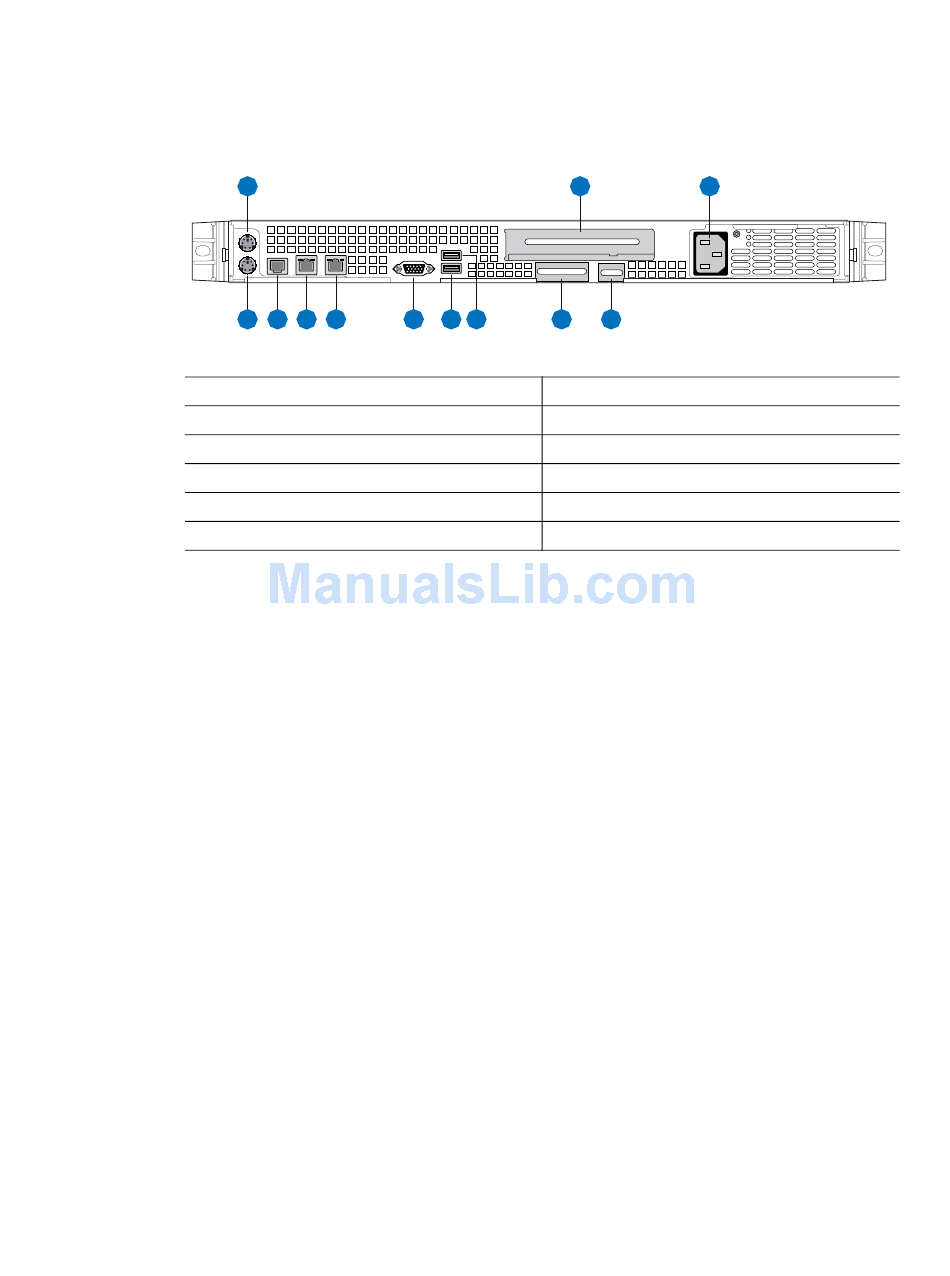

Figure 12. Server System Back
B
F
E
D
G.
USB 5 connector
H.
Video connector
I.
NIC 2 connector
J.
NIC 1 connector
K.
RJ45 serial B port
L.
PS2 keyboard connector
C
AF002187
17
