Cable Routing (Hot-Swap Drive System)

When you add or remove components from your server system, make sure your cables are
routed correctly before reinstalling the server system cover. Use caution to make sure no
cables or wires are pinched and that the airflow from the fans is not blocked. Use the
figures below to determine the correct cable routing for a hot-swap drive system.
6
A
Intel ® Remote Management
Module (optional)
B
Intel ® RMM NIC Module (optional)
C
I/O Module (optional)
D
Power Supply
E
Bridge Board
F
Backplane Board (passive shown)
B
A
D Server
Board
Power
Supply
G
H
I
J
F
Optical
Drive
Module

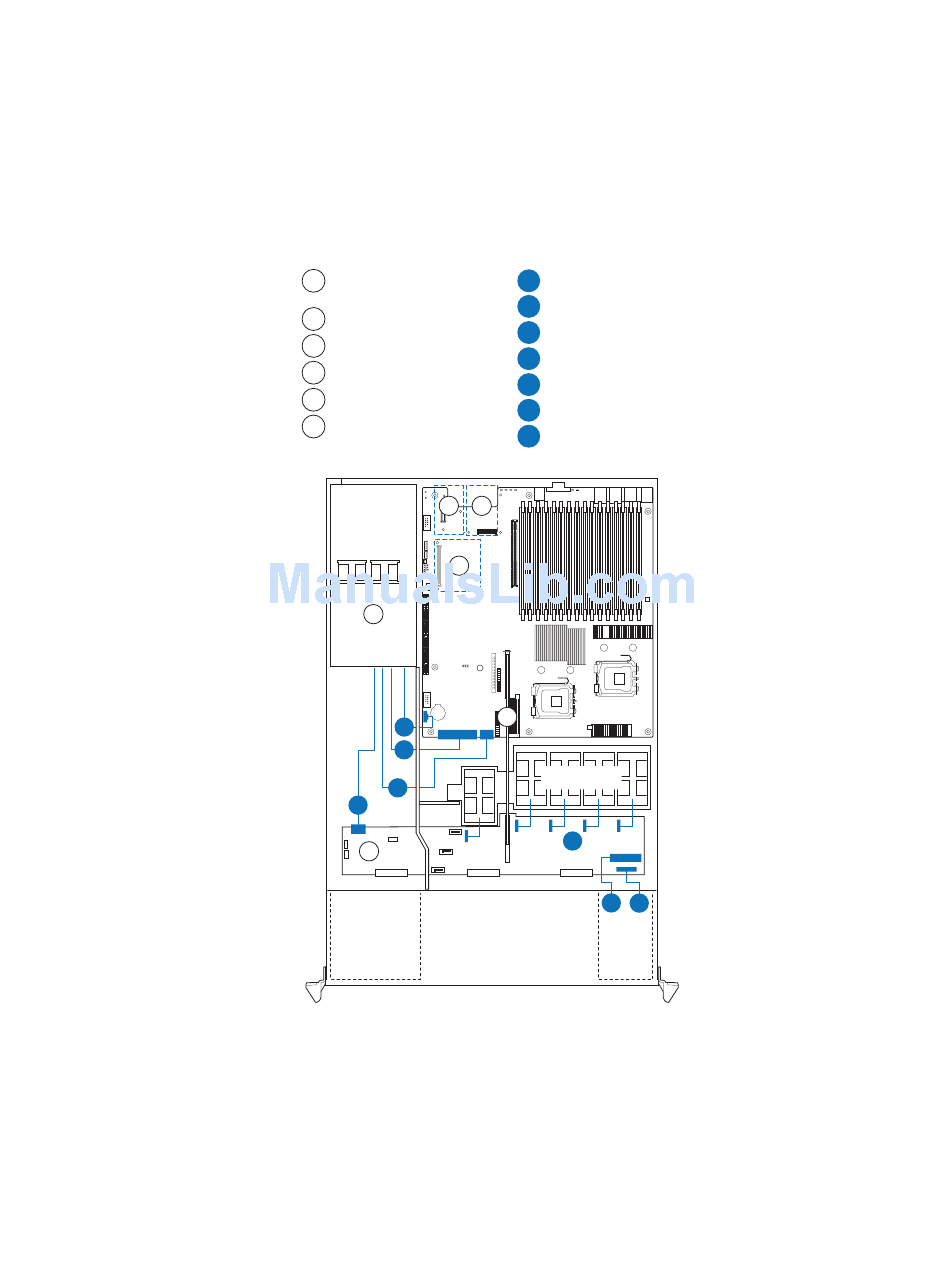

Figure 2. Cable Routing for Hot-Swap Drive System

G
Power to Server Board (Aux. - P4)
H
Power to Server Board (Main - P1)
I
Power to Server Board (CPU - P2)
J
Power to Backplane Board (P3)
K
Control Panel USB
L
Control Panel Data
M
Fan Power Cables
C
CPU1
E
CPU2
Fan Module
M
L K
Control
Panel
Module
Drive Bays
®
Intel Server System SR1560SF Service Guide
