Always operate your server system with the small air baffle in place. The small air baffle
is required for proper airflow within the server system.
Removing the Small Air Baffle
Pull up on the air baffle to remove it.
Installing the Small Air Baffle
Lower the baffle into the server system and position baffle over the two stand-off
locations. Press into place as shown in the figure below.
®
Intel
Server System SR1560SF Service Guide

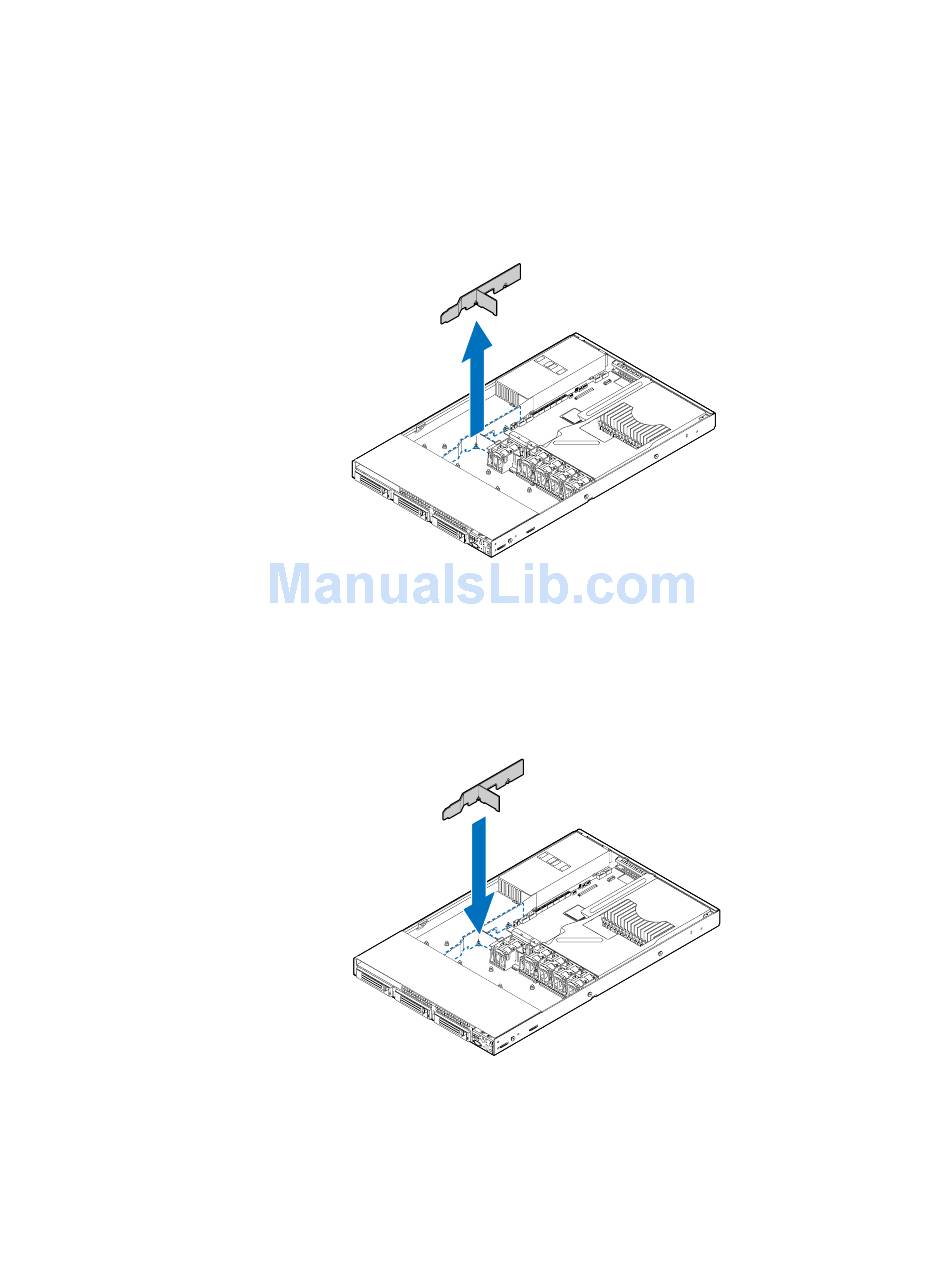

Figure 27. Removing the Small Air Baffle
Figure 28. Installing the Small Air Baffle
AF002364
AF002365
31
