Removing the Front Bezel

Unlock the bezel and pull the bezel from the server system.

Installing the Front Bezel

At each end of the bezel, line up the center notch on the bezel with the center guide on the
rack handles and push the bezel onto the front of the server system until it clicks into
place.

Removing and Installing the System Cover

Removing the System Cover

The server system must be operated with the system cover in place to ensure proper
cooling. You will need to remove the top cover to add or replace components inside of the
server.
22

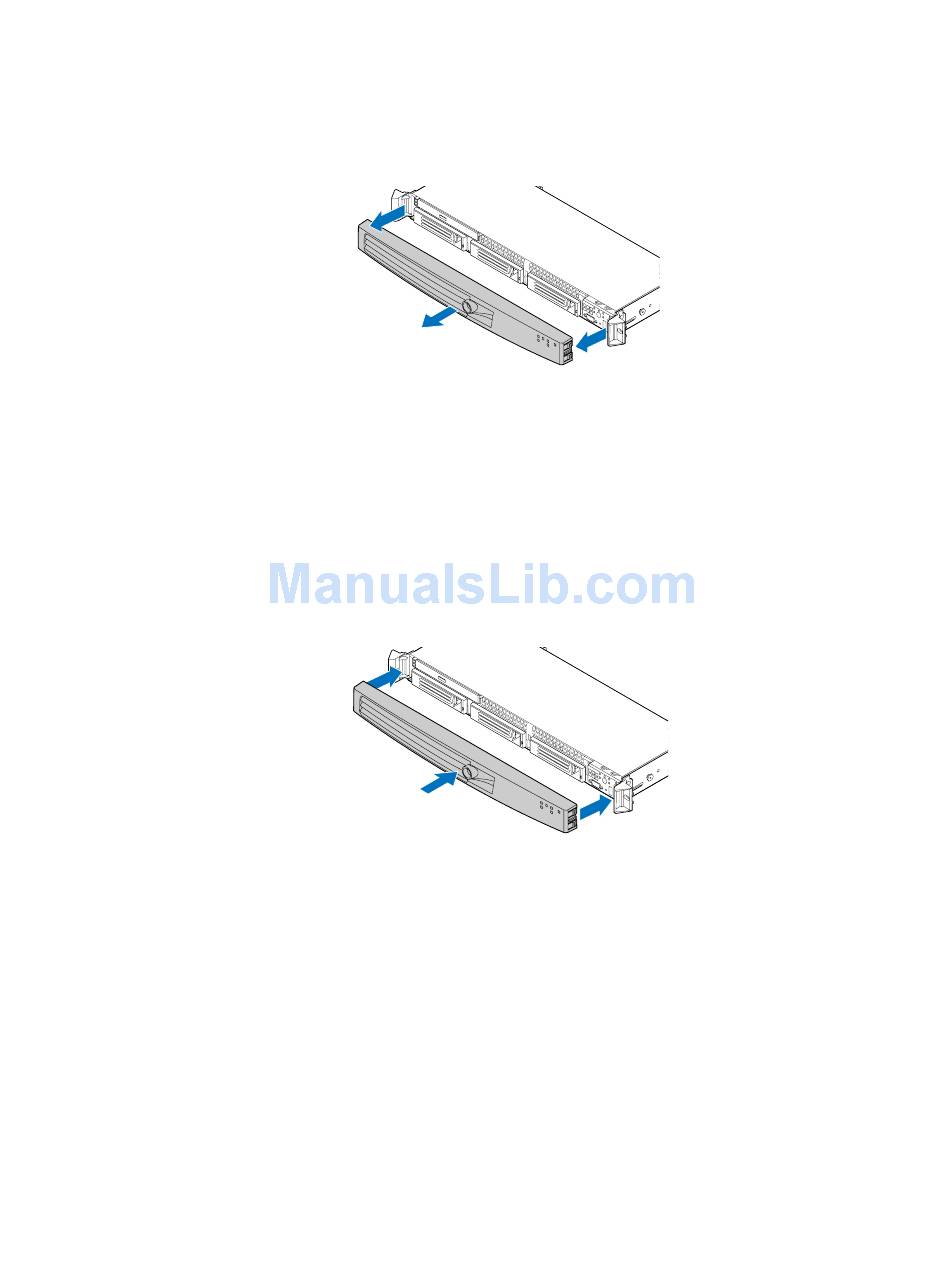

Figure 14. Removing the Front Bezel

Figure 15. Installing the Front Bezel

AF002373
AF002372
®
Intel Server System SR1560SF Service Guide
