Peripheral Devices

The server system provides locations and hardware for installing hard drives, a USB
floppy drive, and an optical drive. The drives must be purchased separately. The following
figure shows the available options.
.

Hard Disk Drives

The fixed drive server system (product code SR1560SF) ships with three fixed mount
drive carriers. However, only the two left drive bays can be populated with SATA hard
drives. The third hard drive bay is not used in this system configuration.
The hot-swap drive server system (product code SR1560SFHS) ships with three hot-swap
drive carriers for installing three SAS or Serial ATA (SATA) drives.
The leftmost hard drive bay can be used to support a USB Floppy drive in the hot swap
drive system. To use the bay for a floppy drive, the AXXFLOPHDDTRAY accessory kit
must be used.
Note: The USB floppy drive kit is supported on the Intel
code SR1560SFHS) only.
For instructions on installing hard drives, see
Drive" or
Note: Drives can consume up to 17 watts of power each. Drives must be specified to run at a
maximum ambient temperature of 45C.
18
A

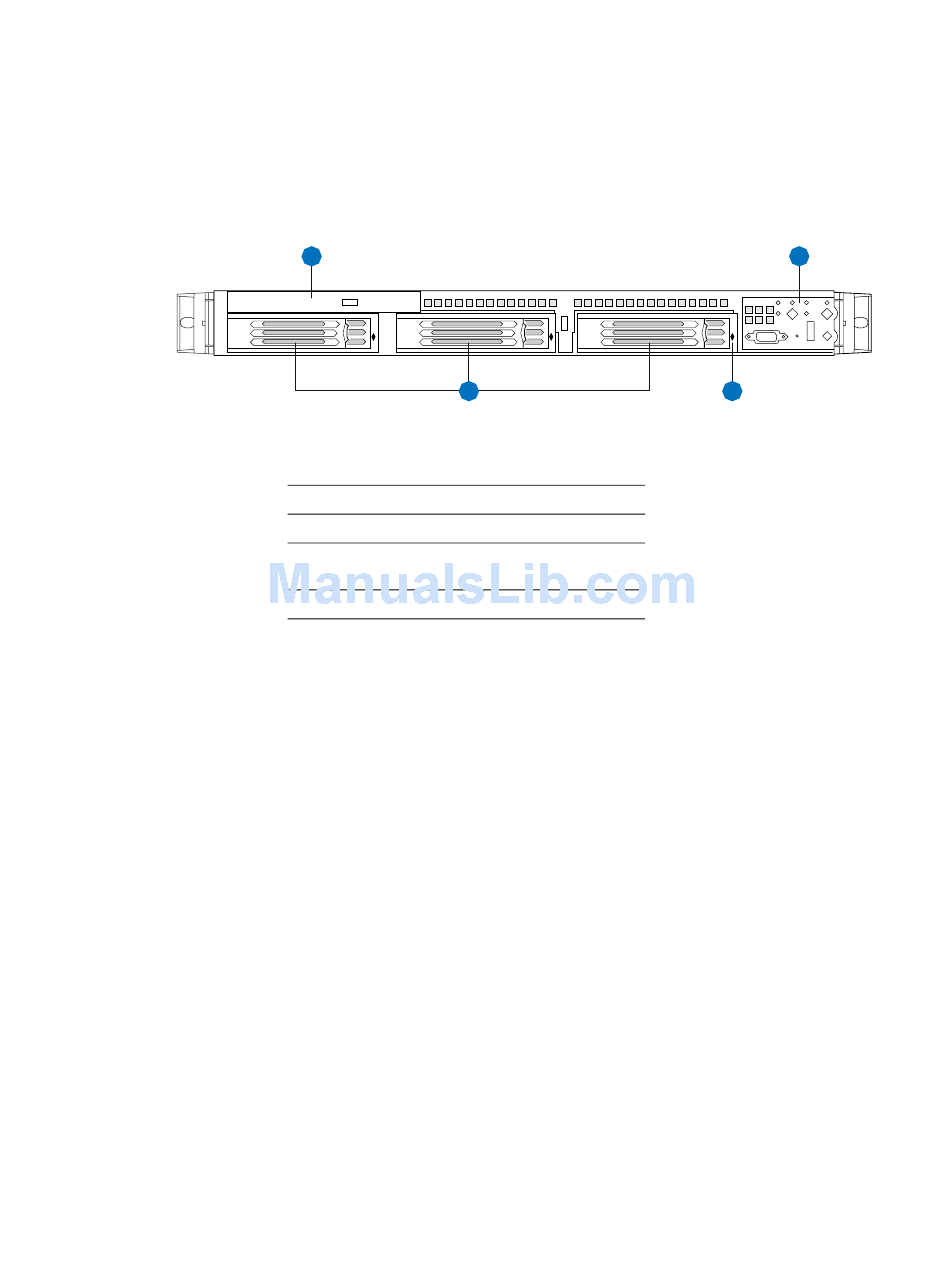

A. Slimline drive bay (drive not included)
B. Control panel
C. Hard drive status LEDs (hot-swap drives
only)
D. Hard drive bays (drives not included)

Figure 13. Optional Peripherals

"Installing and Removing a Hot-swap Hard
D
®
Server System SR1560SF - (product
"Installing and Removing a Fixed Hard
Drive".
®
Intel Server System SR1560SF Service Guide
B
C
AF002191
