SAS/SATA Backplanes
The hot-swap drive system can support either an active SAS backplane (Product Code -
ASR1500SASBP) or a passive SAS/SATA backplane (Product Code - ASR1500PASBP).
The backplanes provide the platform support for peripheral drives and hot-swap SAS or
SATA hard drives. To eliminate several cables, the backplanes are also used as a pathway
for signals from the server board to various platform interconnects, including those for the
control panel and peripheral drives.
The passive backplane acts as a 'pass-through' for the SAS/SATA data from the drives to
the SATA controller on the server board or a SAS/SATA controller add-in card. It provides
the physical requirements for the hot-swap capabilities. The active backplane has a built-
in SAS controller that does not need communication with the baseboard controller or an
add-in card.
A. Backplane power
B. Slimline USB
C. SAS/SATA0 (passive backplane only)
D. SAS/SATA1 (passive backplane only)
E. SAS/SATA2 (passive backplane only)
F. Fan 5 power
G. Bridge board connector
H. Fan 4 power
14
A
C
B
D
O
O

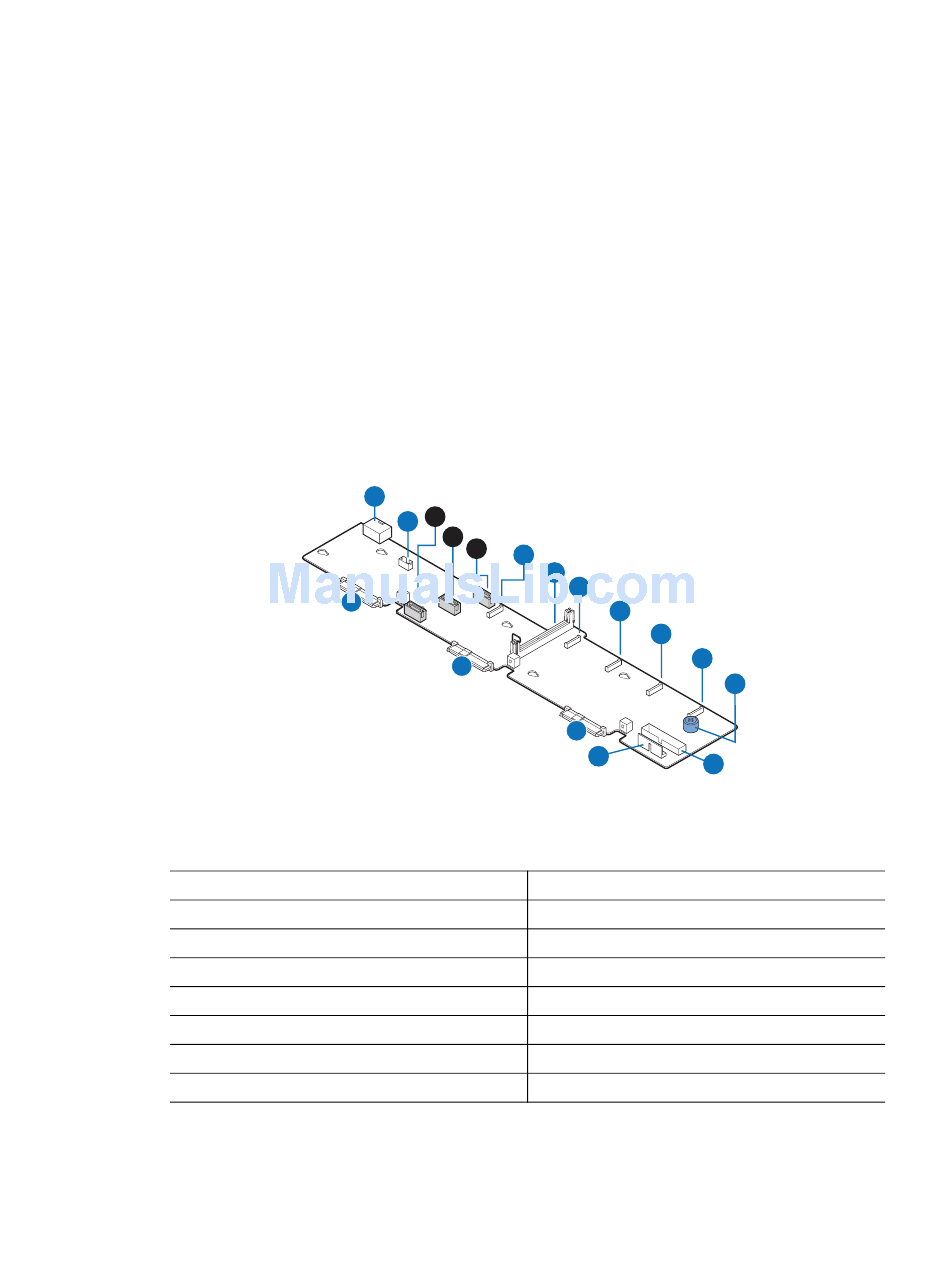

Figure 10. Active/Passive Backplane Components

E
F
G
H
I
O
N
I. Fan 3 power
J. Fan 2 power
K. Fan 1 power
L. Thumbscrew
M. Control panel data
N. Control panel USB
O. HDD connectors
®
Intel Server System SR1560SF Service Guide
J
K
L
M
