1. Disconnect the fan cable from the backplane or fan board (see letter "A"). Lift the
failed fan from the module (see letter "B").
2. Position the replacement fan so the connector on the fan is at the right and pointing
down.
3. With the fan oriented correctly, insert the fan into the fan module (see letter "A"),
and insert the fan cable into the matching connector on the backplane or fan board
(see letter "B").
56
A

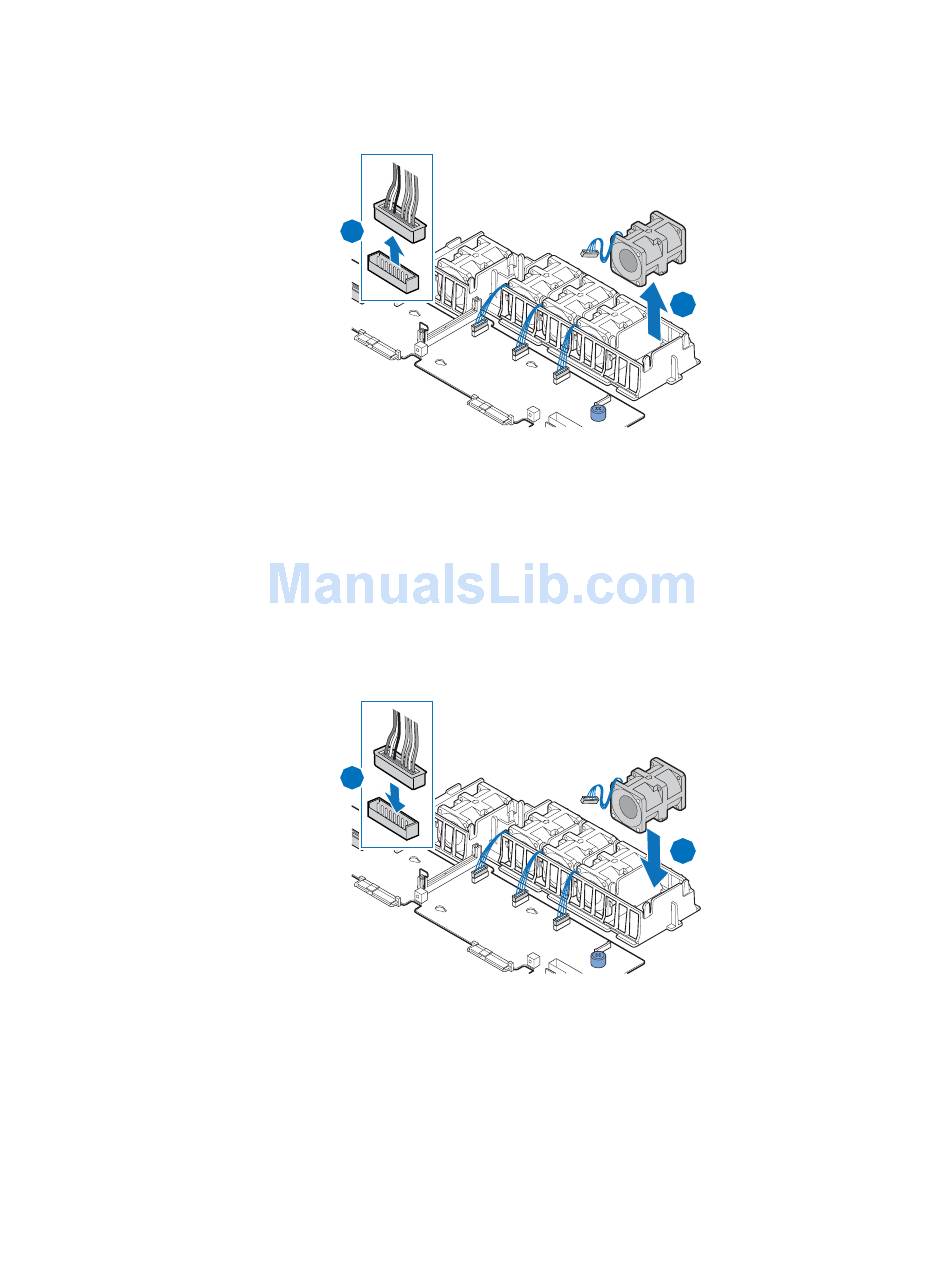

Figure 63. Removing a Fan from the Fan Module

B

Figure 64. Installing a Fan into the Fan Module

B
AF002356
A
AF002357
®
Intel
Server System SR1560SF Service Guide
