2. Press downward on the side of the tray (see letter "A") and disengage the drive
from the two metal tabs on the opposite side of the tray.
3. Slide the optical drive out (see letter "B") and lift up (see letter "C") to remove it
from the tray.

Filling Empty Server System Bays

A filler panel or drive blank must be installed into an empty drive bay. To access the drive
bays, remove the front bezel if it is installed. For instructions, see
Bezel". With the bezel removed, install the appropriate panel(s), blank, or empty hard
drive bay(s) as described below.
•
If you do not have an optical drive installed in the slimline bay, install the slimline
filler panel.
•
Install populated hard drive carriers into any remaining empty hard drive bays.

Installing and Removing the PCI Riser Assembly

Removing the PCI Riser Assembly

1. Disconnect any cables attached to any add-in cards.
2. Grasp the riser assembly and pull up to release it from the system.
38
B

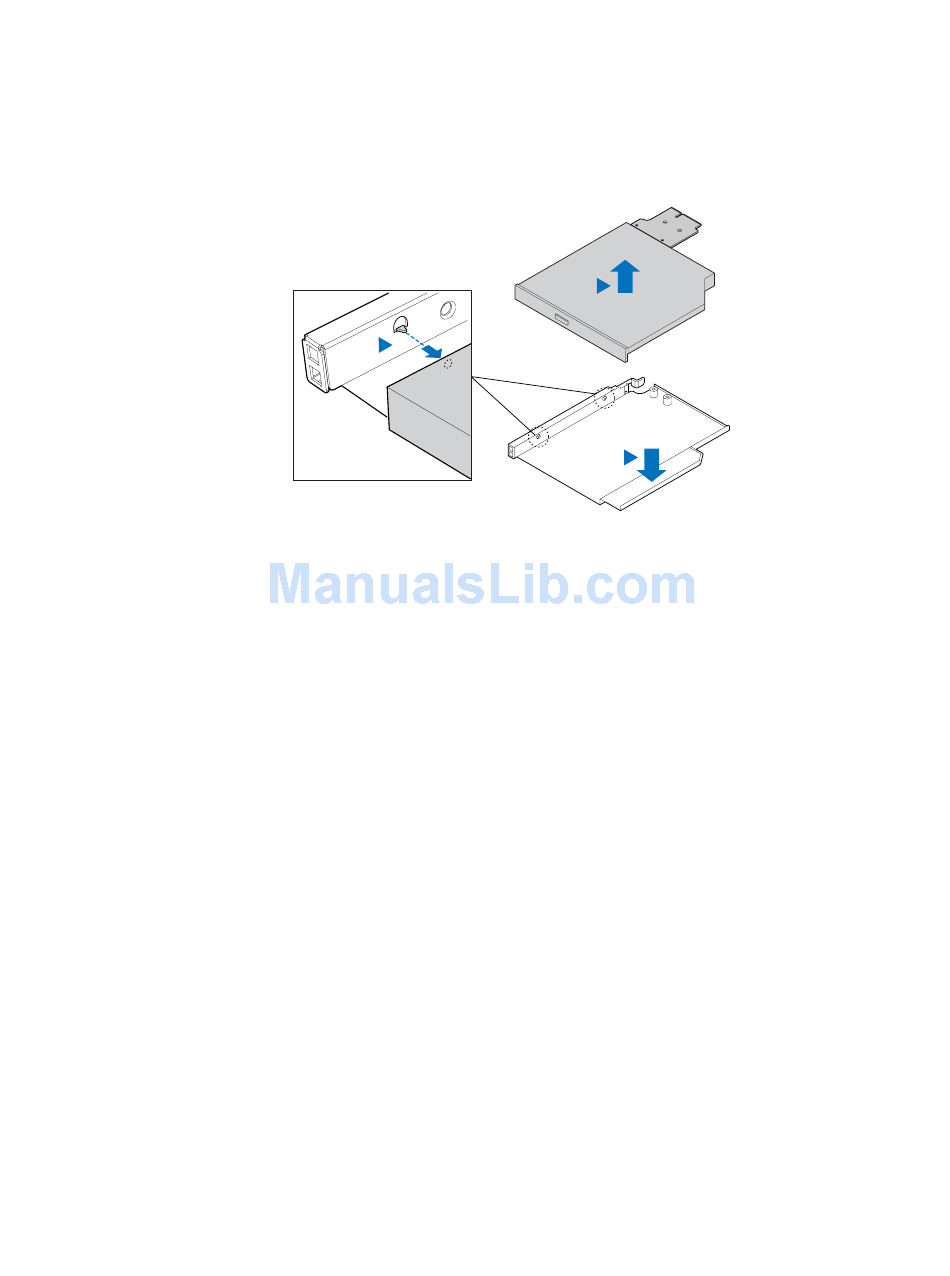

Figure 39. Removing the Slimline Optical Drive from the Tray

C
A
AF000152
"Removing the Front
®
Intel Server System SR1560SF Service Guide
