Figure 21. Installing The Initial Four Dimms - Intel SR1560SFHS - Server System - 0 MB RAM Service Manual

Server system

Table of Contents

DIMM A4

DIMM D1

DIMM A3

DIMM D2

DIMM A2

DIMM D3

DIMM D4

DIMM A1

Channel A

Channel B

Channel C

Channel D

Branch 0

Branch 1

AF002164

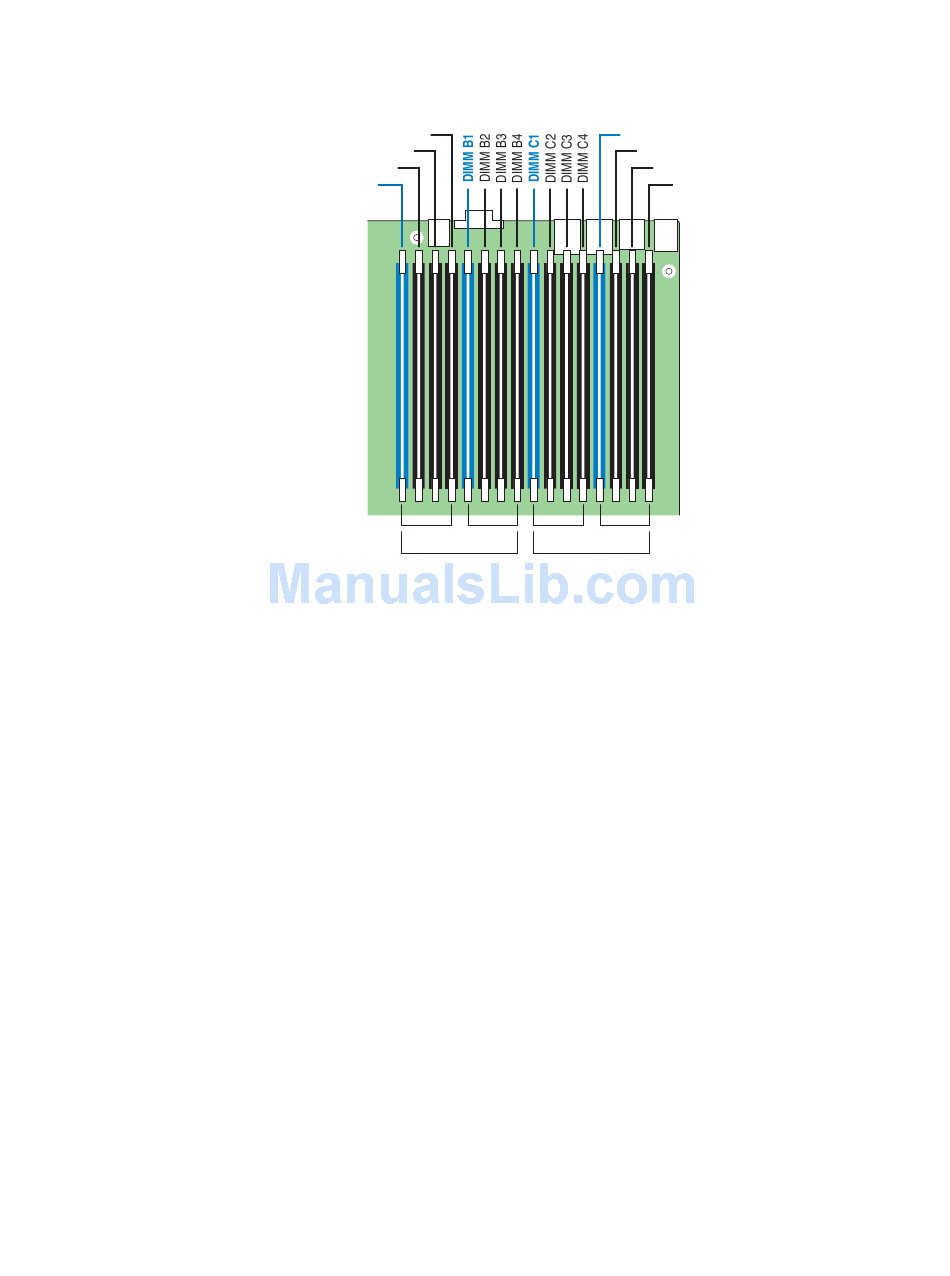

Figure 21. Installing the Initial Four DIMMs

Notes: The initial four DIMMs installed must be populated in the blue slots: DIMM A1, DIMM

B1, DIMM C1, and DIMM D1.

Thermal requirement note: If x4 FBDIMMs are used, and the FBDIMMs do not have

thermal sensors, you must install DIMM Blanks when installing less than 8 FBDIMMs.

DIMM Blanks can be ordered through your preferred distributor.

Intel

Server System SR1560SF Service Guide
