Installing the Server System Cover

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Place the cover over the server system so that the side edges of the cover sit just
outside of the server system sidewalls. Slide the cover forward. See letter "A" in the
figure below.
3. Insert the larger screw at the rear of the system. See letter "B" in the figure.
4. Insert the two small screws on the top surface of the cover, near the front edge. See
letter "C".
5. Reconnect all peripheral devices and the AC power cord.

Installing and Removing a Hard Drive

Caution: The hard drives are NOT hot swappable. Before removing or replacing a hard drive, you
must first take the server out of service, turn off all peripheral devices connected to the
system, turn off the system by pressing the power button, and unplug the AC power cord
from the system or wall outlet.
One SATA drive can be installed for each server board (two drives total). Both drive bays
are at the right side of the chassis.
®
Intel Server System SR1520ML User's Guide
iii.
C

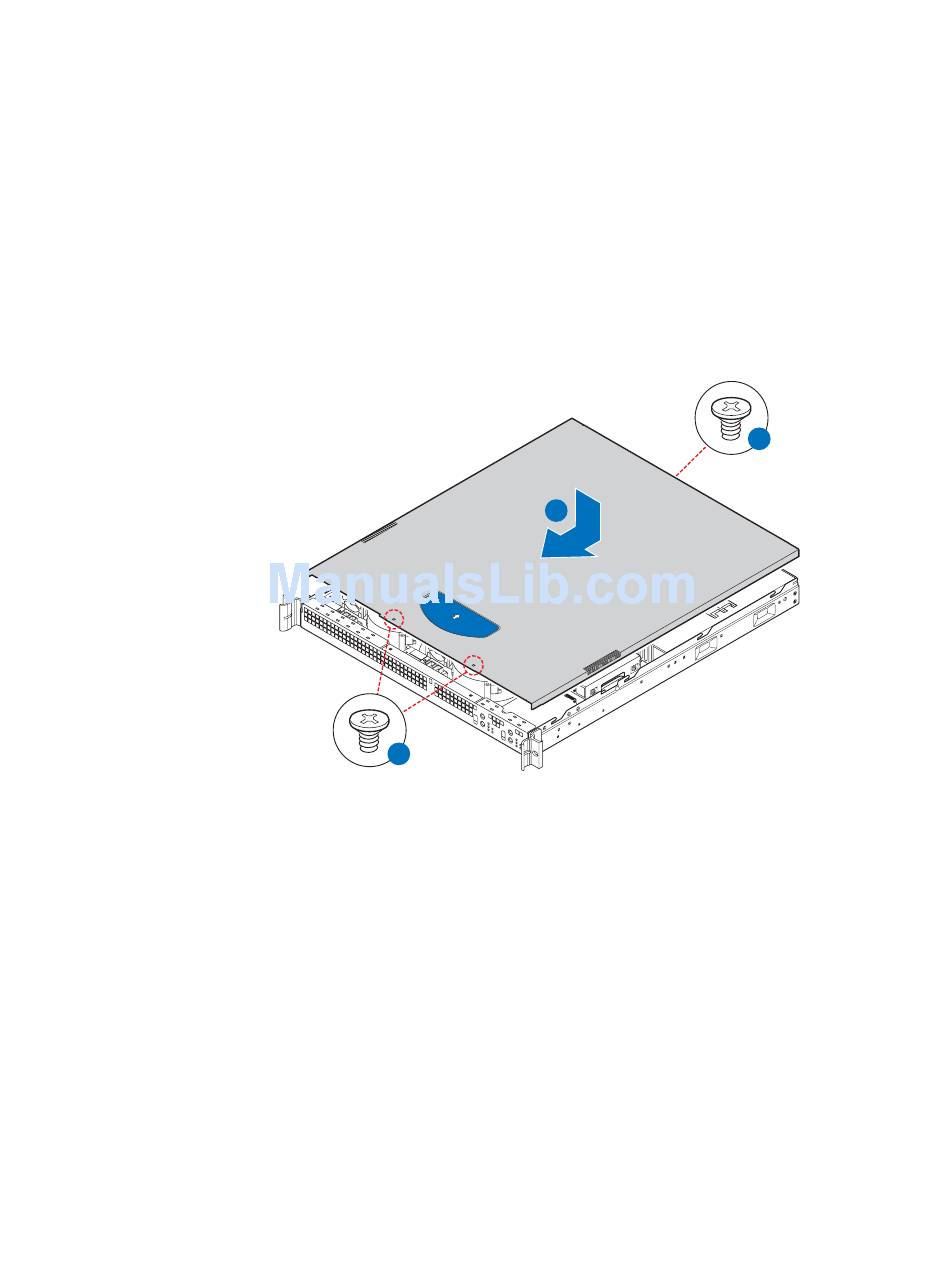

Figure 9. Installing the Server System Cover
