Selecting "Sockets" allows for the remote connection of this workstation with servers using Intel
RAID Controller SRCU32s. Select TCP/IP or IPX/SPX network protocols. To access the servers
with Intel RAID Controller SRCU32s, the corresponding remote service must be loaded on the
server. Users must be assigned access rights (Name, password). See Figure 15. After selecting
"Sockets" and "TCP/IP" you may enter the IP address of the server (if you choose "SPX/IPX"
StorCon will scan the network for suitable servers which have SPX/IPX protocol). Enter user name
and password as appropriate.

Select Controller

After the login procedure StorCon displays a list of Intel RAID Controller SRCU32s which are
installed in the server (in this example one SRCU32, see Figure 16). This list includes controller
name, the PCI Bus system (0=primary, 1=secondary, etc.) and the PCI slot number, the controller's
features (C=Chaining, 0=RAID 0, 1=RAID 1, 4=RAID 4, 5=RAID 5, 10=RAID 10), and the
firmware level. After selecting the controller by pressing <Enter>, all further changes to these
settings within StorCon refer to this Intel RAID Controller SRCU32 and the connected devices.
Storage Console

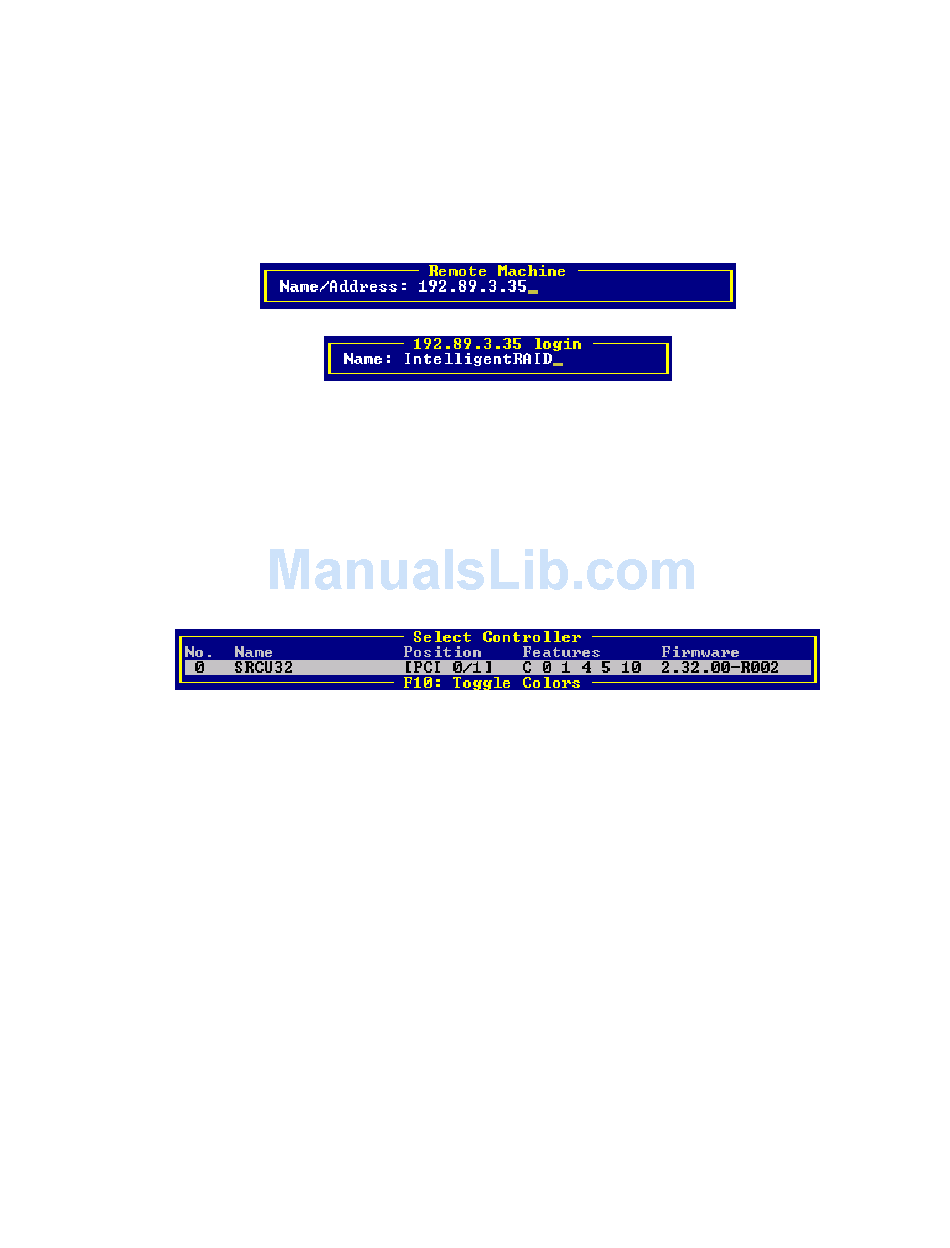

Figure 15. Remote Machine

Figure 16. Select Controller

85
