Physical Configuration Window

The Physical Configuration window shows the physical configuration of the SCSI or fibre channel
busses of the selected Intel RAID Controller SRCU32 and the devices connected with these busses.
Click on the physical configuration icon to open the window. See Figure 81 for an example of a
physical configuration window.

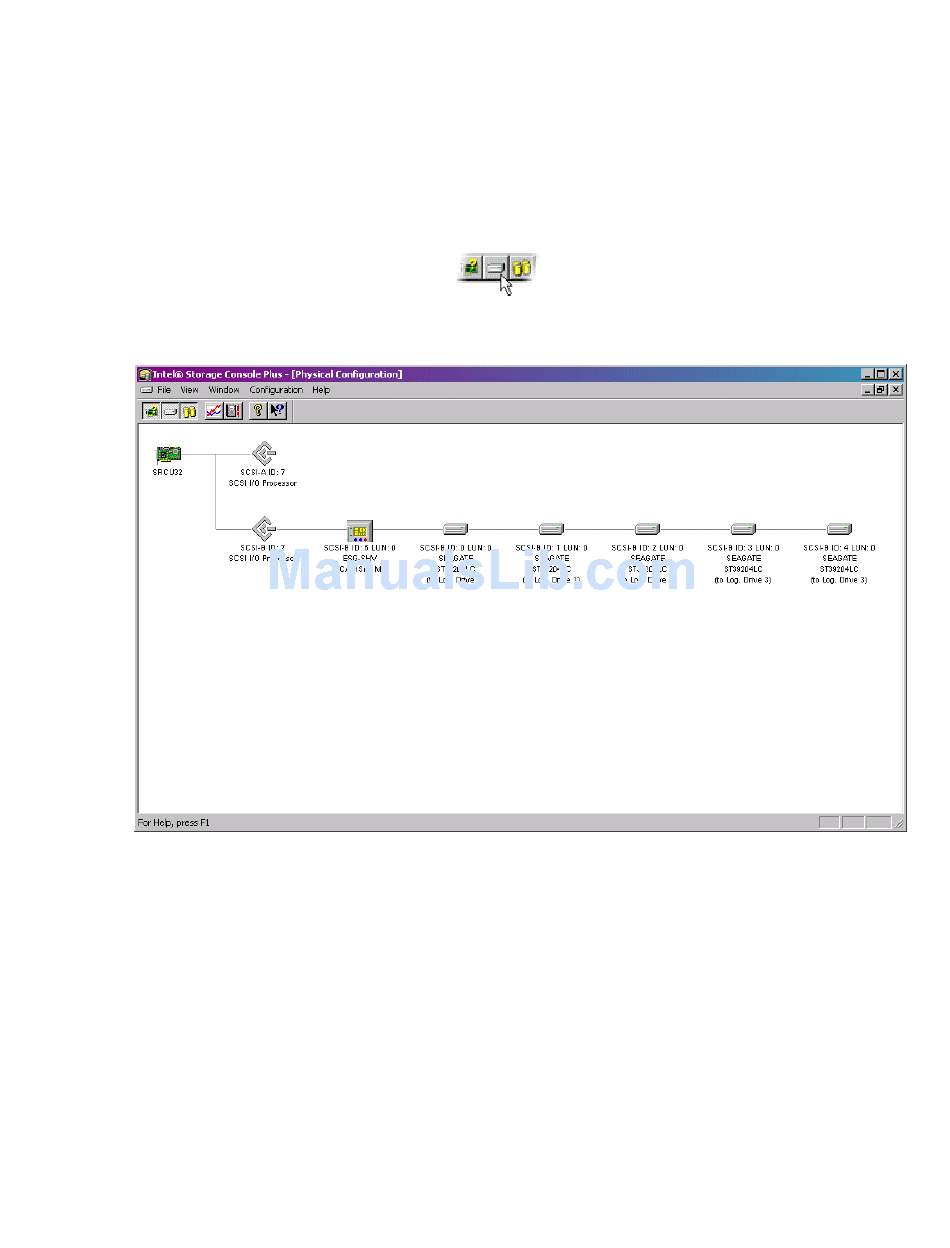

Figure 81. Example of a Physical Configuration and the Controller Settings

130

Figure 80. Physical Configuration Icon

Intel RAID Controller SRCU32 User's Guide
