The Statistics Window
The statistics window displays the throughput of physical, logical and host drives. The vertical axis
show throughput, the horizontal axis, time. You can add drives by dragging and dropping them
from the physical and logical configuration windows into the statistics window. To change the
layout of the lines, adjust the scales of the axis or remove drives from the statistics windows using
the chart menu_chart menu.
Scale the statistics window using the arrow keys. Scale time down/up using the left/right arrow
keys. Scale throughput using the up/down arrow keys.
Storage Console Plus

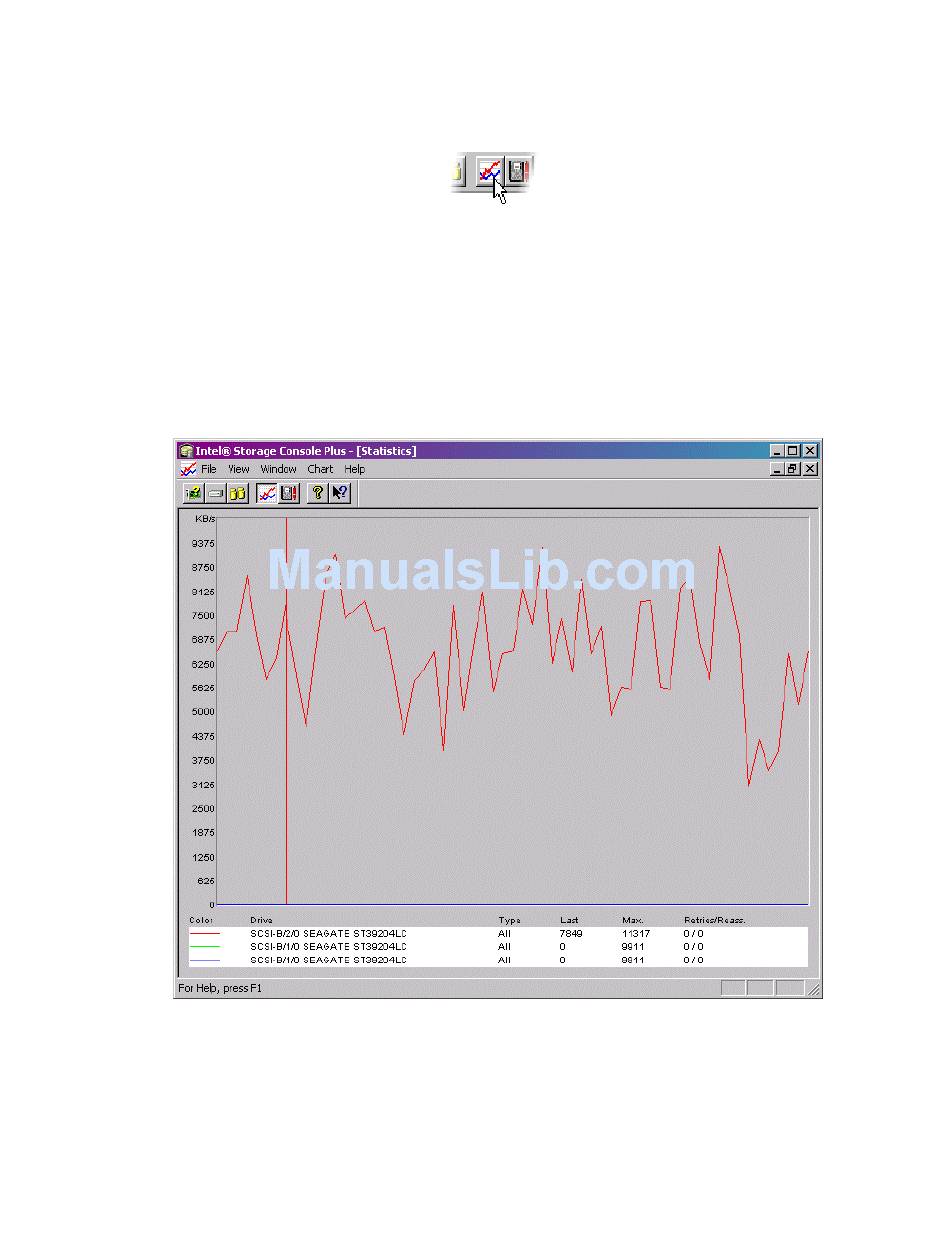

Figure 102. Statistics Window Icon
Figure 103. Statistics Window
161
