Figure 94. Logical Configuration - Intel SRCU32 - RAID Controller User Manual

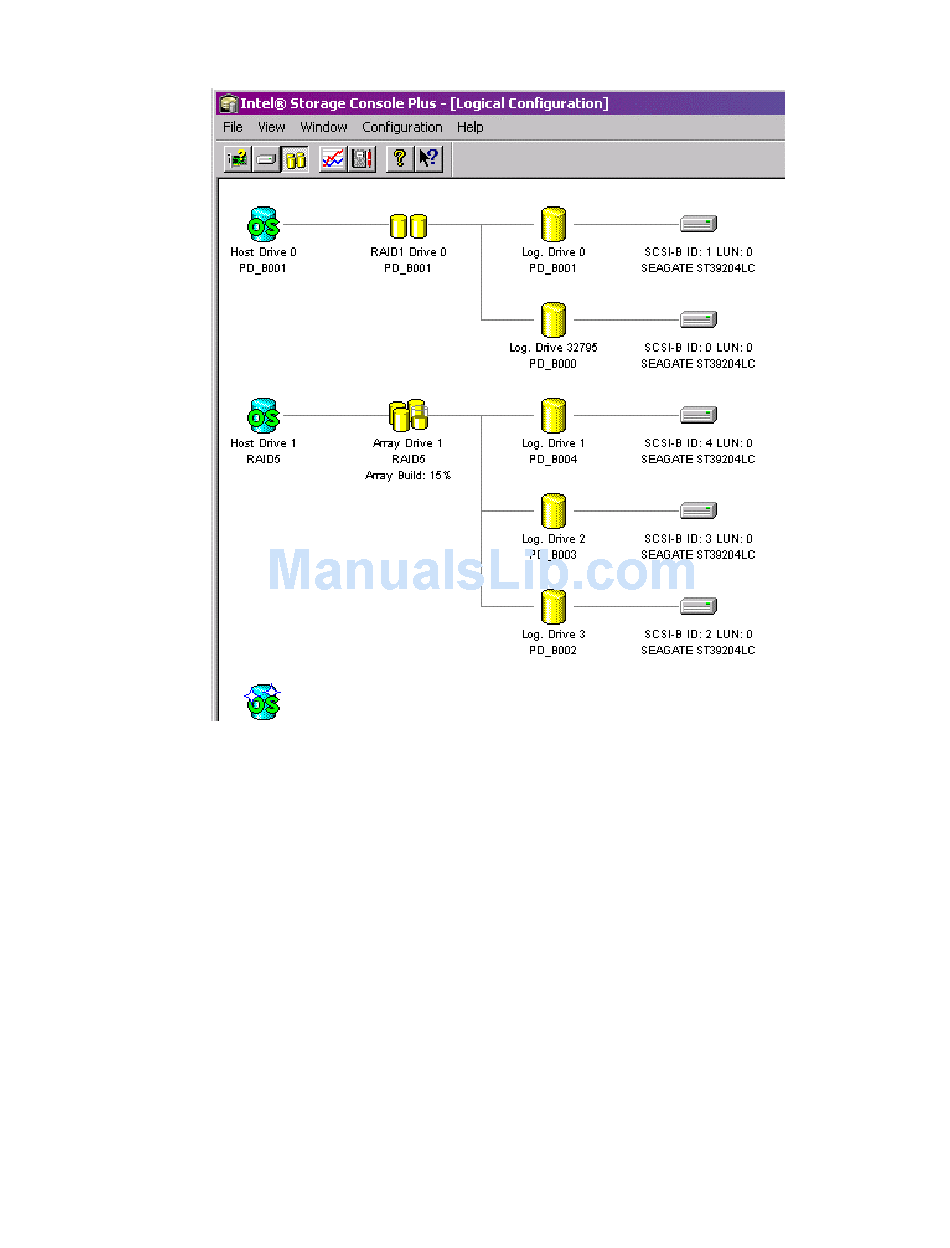

Figure 94. Logical Configuration

If you want to add additional drives to the array drive, select them from the box on the left side of
the window. It is possible to add more than one drive at a time.
If no physical drives are offered, you have to use the "Hot Plug: Add Disk" function first, to add
new drives. You can open the progress information window to monitor the progress of the
expansion. If you have previously limited the capacity of the array drive, you are asked if you want
to convert this free space to a new host drive.
154 Intel RAID Controller SRCU32 User's Guide
