Advanced Settings; Figure 41. Enclosure Slots; Figure 42. Advanced Settings Dialog; Table 16. Advanced Settings - Intel SRCU32 - RAID Controller User Manual

The example in Figure 41 shows the slots of the enclosure which have been assigned with hard
drives. To fill an empty slot, press and select the desired hard drive. See Figure 41.
SAF-TE and SES are recommended for auto hot pluggable subsystems. Only with these systems
can a secure auto hot plug be guaranteed. For non-intelligent subsystems we recommend only the
best quality components (disk shuttles, cables, terminators, etc.).

Advanced Settings

Within Advanced Settings there are three settings which control the configuration and address
behavior of the Intel RAID Controller SRCU32's BIOS and DPMEM. See Figure 42 and Table 16
for setting details.
Table 16. Advanced Settings
Parameter
Shrink BIOS after
POST
BIOS RAM
allocation method
DMEM mapping
Storage Console

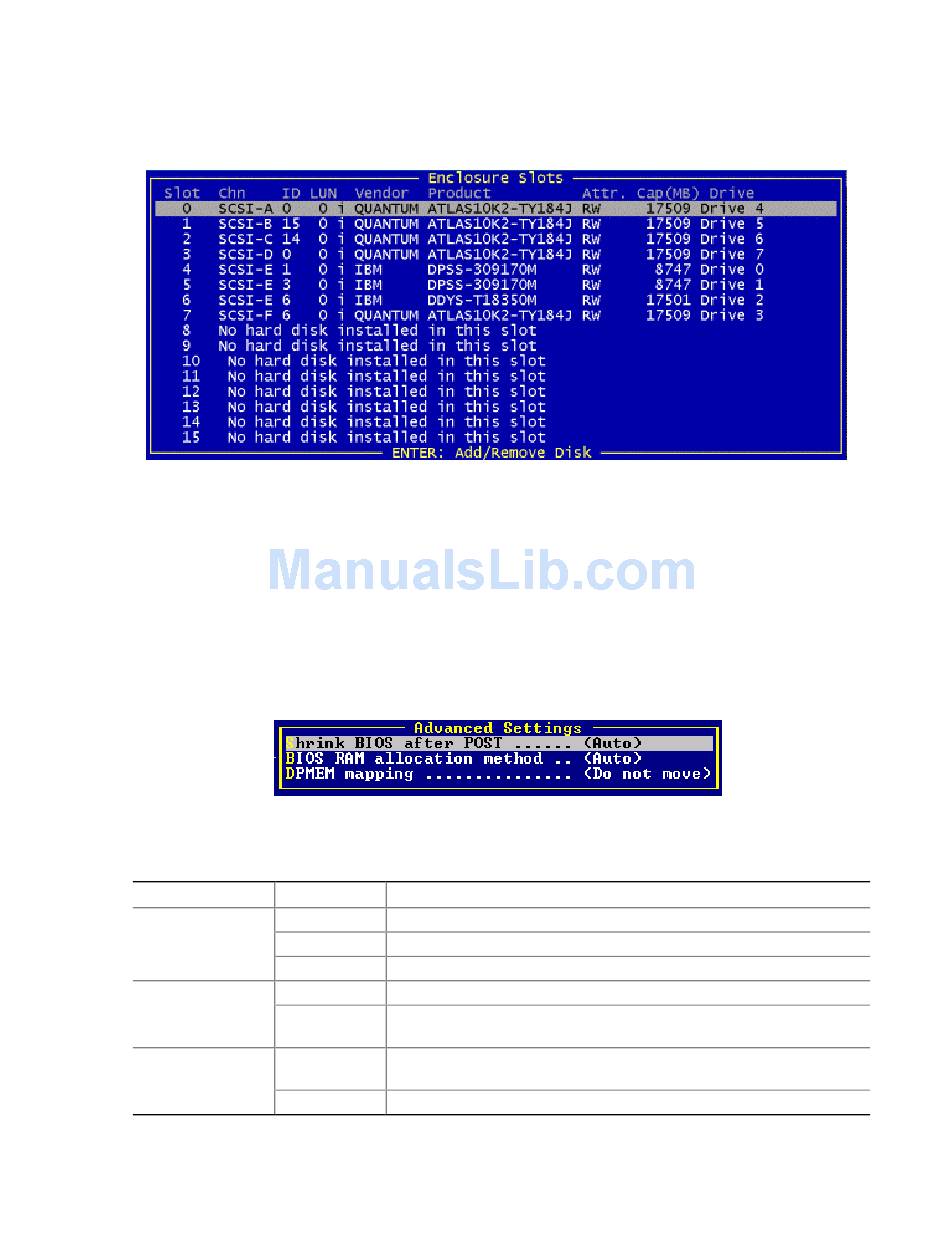

Figure 41. Enclosure Slots

Figure 42. Advanced Settings Dialog

Alternatives Description
Off The BIOS is not shrinked after the post phase.
On The BIOS is always shrinked after the post phase.
Auto The Intel RAID Controller SRCU32 decides on the BIOS shrink.
Auto The BIOS address space is automatically allocated.
Older The BIOS address space is allocated according to an older PCI
specification.
Move below The DPMEM address space is allocated below 1 MB.
1MB
Do not move The DPMEM address is always above 1 MB.
