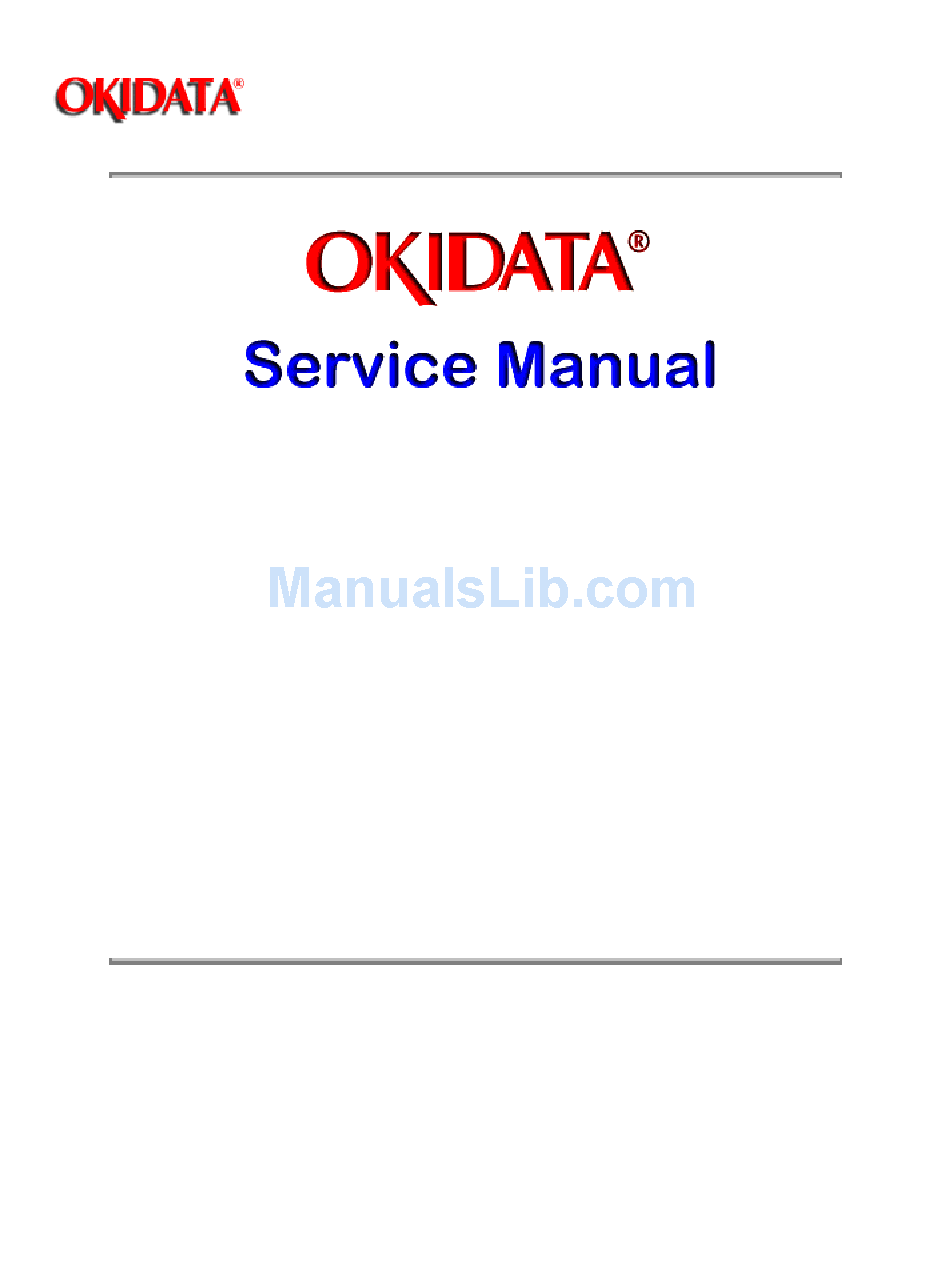

OKIDATA OF2600 Service Manual

Facsimile products

Table of Contents

Quick Links

Download this manual

OKIFAX 2200 // 2400 // 2600

Note: This Adobe Acrobat version of the Okidata Service Training Manual was built with the

pictures rendered at 300 dpi, which is ideal for printing, but does not view on most

displays well.

Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

Service Guide OF2200/2400/2600

Facsimile Products

Adobe Acrobat printable reference

copy of the OKIDATA Service Training Manual.

Chapter 0 About This Manual

09/17/97

Page: 1

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the OF2600 and is the answer not in the manual?

Questions and answers

Summary of Contents for OKIDATA OF2600

Page 1 Page: 1 Service Guide OF2200/2400/2600 Chapter 0 About This Manual OKIFAX 2200 // 2400 // 2600 Facsimile Products Adobe Acrobat printable reference copy of the OKIDATA Service Training Manual. 09/17/97 Note: This Adobe Acrobat version of the Okidata Service Training Manual was built with the pictures rendered at 300 dpi, which is ideal for printing, but does not view on most displays well.
Page 2: Table Of Contents
Table of Contents Page Service Guide OF2200/2400/2600 0 About This Manual Front Cover Copyright 1 Principles of Operation 1.1 Principles Of Operation ..1.1.01 Compatibility ..1.1.02 Communications Mode ..1.1.03 Modem Operation ..1.1.04 Automatic Fall-Back Mode ..1.1.05 Telephone Line Connection ..1.1.06 Error Correction Mode (ECM) ..1.1.07 Quick Scan Mode ..1.1.08 Major Assemblies (Mechanical) - Cross-Section Diagram...
Page 3 Table of Contents Page 1.6 Sensors And Switches ..Paper Inlet Jam ..Paper Feed Jam ..1.6.02 Toner Low Sensor 2 Failure Analysis 2.1 Overview 2.2 Troubleshooting Updates 2.3 Reporting Problems 2.4 Troubleshooting Tips 2.5 Repair Analysis Procedures ..2.5.02 RAP Index ..Start Here Flowchart ..RAP 01 No LCD Display ..RAP 02 Alarm Led Is Lit ..RAP 03 Print Test Failure...
Page 4 Table of Contents Page ....RAP 21B Dark Background Density ....RAP 21C Printed Output Is Blank ....RAP 21D Vertical Black Stripes On Printed Output ....RAP 21E Repetitive Spaced Marks On Printed Output ....RAP 21F Vertical White Streaks On Printed Output ....RAP 21G Areas Missing From Printed Output ....RAP 21H Poor Fusing 2.6 Tests ..2.6.01 Self-Diagnosis...
Page 5 Table of Contents Page ..3.2.03 Right Side Cover And Speaker ..3.2.04 Network Control Unit ..3.2.05 Left Side Cover Assembly ..3.2.06 Cradle Assembly ..3.2.07 Hook Switch Board ..3.2.08 Memory Board ..3.2.09 Control Panel Assembly And Paper Guide (U) ..3.2.10 Feed, Pinch Roller; Tension Arm; Adf Spring, B-Up Plate ..3.2.11 Separation Rubber ..3.2.12 Cover (U)
Page 6 Table of Contents Page ..A.2.06 Power Supply Board (PWU) ..A.2.07 Memory Board (MT-25) Okifax 2200 ..A.2.08 Memory Board (DFME) Okifax 2400/2600 ..A.2.09 Line Interface Board (LINE) ..A.2.10 Connector Board (CB-250) ..A.2.11 Interconnect Diagrams (2200) ..Okifax 2200 - 2 Of 5 ..Okifax 2200 - 3 Of 5 ..Okifax 2200 - 4 Of 5 ..Okifax 2200 - 5 Of 5...
Page 7 Table of Contents Page ..B.2.32 Section 1: Cabinet Assembly ..B.2.33 Section 2: Mechanical Unit ..B.2.34 Section 3: Cassette Assembly C Installation of Options C.1 Overview C.2 Option Installation ..C.2.02 UST-500 (Second Paper Cassette Unit) ..UST-500 Testing Procedure ..C.2.03 SIO-45 Board (RS232-C Interface) C.3 Telephone Answering Device (TAD) Interface...
Page 8: About This Manual
Page: 2 Service Guide OF2200/2400/2600 Chapter 0 About This Manual This document may not be reproduced without the written permission of the Okidata® Sales and Product Training Group. Every effort has been made to ensure the accuracy of the information contained in this training course.
Page 9: Principles Of Operation
Page: 3 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1 PRINCIPLES OF OPERATION This module contains three sections. · Transmitter Theory of Operation · Receiver Theory of Operation · LED Printer Theory of Operation Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 10: Principles Of Operation
Page: 4 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.01 Compatibility The facsimile machine operates as a Group 3 (G3) facsimile device. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 11: Communications Mode
Page: 5 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.02 Communications Mode The unit operates as a half-duplex facsimile transceiver. Transmit and receive operations cannot take place at the same time. However, documents can be prepared for transmission while the machine is engaged in message reception.
Page 12: Modem Operation
Page: 6 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.03 Modem Operation The high-speed modem conforms to the following standards. · CCITT Standard V.29 for 9600/7200 bps (bits per second) operation · CCITT Standard V.27 ter. for 4800/2400 bps operation ·...
Page 13: Automatic Fall-Back Mode
Page: 7 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.04 Automatic Fall-back Mode The unit will change the message transmitting speed according to the following fall-back plan. The first page of the message is transmitted at 14.4 kbps (Okifax 2200 communicates at 9600 bps maximum). The receiving station will continuously monitor the received data.
Page 14: Telephone Line Connection
Page: 8 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.05 Telephone Line Connection The facsimile machine is connected to the telephone line via the line interface board. Two RJ-11 connectors are provided. One connects to the telephone line. The other connects to an external telephone.
Page 15: Error Correction Mode (Ecm)
Page: 9 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.06 Error Correction Mode (ECM) Error Correction Mode (ECM) provides error-free transmission when communicating with a remote unit that also has ECM. Here is an explanation of the ECM process. ·...
Page 16: Quick Scan Mode
Page: 10 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.07 Quick Scan Mode Both the Okifax 2400 and Okifax 2600 have quick scan capability. With MEM Transmission enabled, the units will scan documents placed on the ADF tray into memory. During a quick scan operation, each letter size page is scanned in approximately three seconds.
Page 17 Page: 11 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.08 Major Assemblies (Mechanical) The following major mechanical assemblies make up the facsimile machine. · Automatic Document Feeder (ADF) Unit / Scan Unit · Printer Unit Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 18: Major Assemblies (Electrical)
Page: 12 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.1.09 Major Assemblies (Electrical) The following major electrical assemblies make up the facsimile machine. · Main Control Board (DFCU / MCNT) · Printer Control Board (DFPU / PCNT) · Network Control Board (NCU) ·...
Page 20: Okifax 2200 - Copy Function Block Diagram
Page: 13 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2200 - Copy Function Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 21: Okifax 2400/2600 - Copy Function Block Diagram
Page: 14 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2400/2600 - Copy Function Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 22: Okifax 2200 - Report Print Function Block Diagram
Page: 15 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2200 - Report Print Function Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 23: Okifax 2400/2600 - Report Print Function Block Diagram
Page: 16 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2400/2600 - Report Print Function Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 24: Transmitter Theory Of Operation
Page: 17 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2 TRANSMITTER THEORY OF OPERATION 1.2.01 Typical Transmission When a telephone number is dialed through the machine (either manually or through auto-dial), a connection will be established with the receiving station through the Public Switched Telephone Network (PSTN).
Page 25: Okifax 2200 - 300 Bps Transmit Handshake Operation
Page: 18 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2200 - 300 bps Transmit Handshake Operation Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 26: Okifax 2400/2600 - 300 Bps Transmit Handshake
Page: 19 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2400/2600 - 300 bps Transmit Handshake Operation Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 27: Okifax 2200 - 300 Bps Receive Handshake Operation
Page: 20 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2200 - 300 bps Receive Handshake Operation Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 28: Okifax 2400/2600 - 300 Bps Receive Handshake
Page: 21 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2400/2600 - 300 bps Receive Handshake Operation Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 29: Okifax 2200 - G3 Transmit Functional Block Diagram
Page: 22 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2200 - G3 Transmit Functional Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 30: Okifax 2400/2600 - G3 Transmit Functional Block Diagram
Page: 23 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2400/2600 - G3 Transmit Functional Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 31: Operator Panel Assembly (Ope)
Page: 24 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.02 Operator Panel Assembly (OPE) Through the operator panel assembly, the end user initiates transmit and receive operations, sets desired options, programs telephone numbers and other data, and interfaces in all areas of the operation of the machine.
Page 32: Automatic Document Feeder (Adf)
Page: 25 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.03 Automatic Document Feeder (ADF) The automatic document feeder transfers document sheets to the scan unit automatically, one at a time. The following diagram shows the mechanism used for detecting the leading and trailing edges of a document.
Page 33: Scanner Assembly
Page: 26 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.04 Scanner Assembly The Okifax 2200 and 2400 use a 2048-bit element direct contact type image scanning sensor. The Okifax 2600 uses a 2432-bit element direct contact image scanning sensor. LEDs are located at the bottom of the scan glass and image sensors are located at the top of the glass.
Page 34: Encoder
Page: 27 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.05 Encoder Scanned image data received by the board is sent to the encoder/decoder (ENC/DEC) integrated chip of the main control board. The image data is compressed by the ENC/DEC according to the Modified Huffman (MH) and Modified Read (MR) encoding scheme, or MH only.
Page 35: Modem
Page: 28 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.06 Modem The modem, located on the main control board, modulates the data in the correct G3 (14.4, 12, 9.6, 7.2, 4.8, or 2.4K bps) data rate that was determined during handshaking between the local machine and the remote receiver.
Page 36: Network Control Unit (Ncu)
Page: 29 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.07 Network Control Unit (NCU) The network control unit receives the modulated data from the main control board and transfers the data to the line interface board. The network control unit performs the following functions during the transmit operation. ·...
Page 37: Line Interface Board
Page: 30 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.2.08 Line Interface Board The line interface board provides the RJ-11 connection used to transmit data to the PSTN, PBX, or Leased Line. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 38: Receiver Theory Of Operation
Page: 31 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.3 RECEIVER THEORY OF OPERATION 1.3.01 Operator Panel Through the operator panel, the user initiates manual receive operations and sets auto-answer options. 1.3.02 Line Interface Board The line interface board provides the RJ-11 connection used to receive data from the PSTN, PBX, or Leased Line.
Page 39: Okifax 2200 - G3 Receive Operation Block Diagram
Page: 32 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2200 - G3 Receive Operation Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 40: Okifax 2400/2600 - G3 Receive Operation Block Diagram
Page: 33 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Okifax 2400/2600 - G3 Receive Operation Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 41: Led Printer - Principal Components
Page: 34 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.4 LED PRINTER 1.4.01 Principal Components The principal hardware components of the printer unit are listed below. · Printer Control Board · Power Supply Unit · Fuser Unit · Main Motor ·...
Page 42 Photosensors · Outlet Sensor (PS1) ON: Paper is present Detects paper jams at the paper exit path. · Paper Sensor (PS2) ON: Paper is present Along with the outlet sensor, is used to monitor paper feed and paper length. · Inlet Sensor 1 (PS3) ON: Paper is present Detects the leading edge of the paper.
Page 43 Upon detecting a fuser alarm, the CPU will stop printing (after printing the current page). 1.4.06 Main Motor (Drum Motor) The main motor is controlled by the motor control LSI, on the main control board via the printer control board. The motor used is a four-phase motor, driven by the motor driver integrated circuit located on the printer control board.
Page 44: Printing Process - General Information
Page: 35 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.5 PRINTING PROCESS - General Information 1.5.01 General Information Hopping and feeding are controlled by a single registration motor. Turning the registration motor in the "A" direction drives the hopping roller. Turning the registration motor in the "B"...
Page 45 ### Printing Process Overview #### Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 46 Page: 36 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.5.02 Hopping Hopping loads paper from the paper cassette. During the hopping operation, the registration motor turns in a clockwise direction. This motor drives the hopping roller, which in turn advances the paper until the inlet sensor 1 switches ON. The registration gear turns, but the one-way bearing does not allow the registration roller to turn.
Page 47 1.5.05 Exposing The image drum has four layers. · Carrier Transfer Layer (CTL) · Carrier Generation Layer (CGL) · Underlayer (UL) · Aluminum Base The CTL and CGL make up the organic photo conductor layer (OPC), which is about 20 micrometers (m m) thick.
Page 48 1.5.06 Developing The electrostatic latent image formed on the image drum surface is developed into a visible image. Developing takes place when contact is made between the image drum and the developing roller. As the toner supply roller rotates, toner is absorbed into the sponge type roller material. A charged particle will be attracted to a particle having a MORE POSITIVE charge than its own.
Page 49 The exposed portion of the image drum contains a more positive charge than the development roller (-100 vdc vs -300 vdc). Therefore, toner is attracted to the exposed areas of the image drum, making the electrostatic latent image visible. NOTE: The toner supply roller and the developing roller are supplied with the bias voltages required during the developing process.
Page 50 · A + 1 Kvdc charge is applied to the transfer roller. This causes the toner image to be transferred to the receive paper. · Heat and pressure cause the toner image to become fused to the receive paper. The 150 degree Centigrade fusing temperature is attained by turning a 400 watt halogen lamp ON.
Page 51: Sensors And Switches
Page: 37 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.6 SENSORS AND SWITCHES 1.6.01 Paper Jam Detection Paper jam detection monitors the location of paper when the printer is powered ON and during printing. If any of the following jams are present, the printing process is interrupted and the message PAPER JAM will be displayed on the LCD.
Page 53: Paper Inlet Jam
Page: 38 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Paper Inlet Jam This jam occurs when either of the following situations occur. · When the printer is powered ON, paper is at inlet sensor 1. · After the hopping operation is attempted three times, the leading edge of the paper does NOT reach inlet sensor 1.
Page 54 Page: 39 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation Paper Feed Jam This jam occurs when either of the following conditions occur. · The paper does not pass over the paper sensor within a pre-determined period of time. · The leading part of the paper does not reach the outlet sensor within a pre-determined period of time after the paper has passed over the paper sensor.
Page 55 Page: 40 Service Guide OF2200/2400/2600 Chapter 1 Principles of Operation 1.6.02 Toner Low Sensor The toner well of the image drum cartridge contains a toner agitator. Whenever the image drum rotates, the toner agitator attempts to turn. A spring clip in the bottom of the toner well (along with the proper amount of toner) holds the agitator at the bottom of the well.
Page 56 Page: 41 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.1 OVERVIEW 2.1.01 Introduction This section is used to isolate problems to the assembly level. Application problems and detection of faulty components on the printed circuit boards are not addressed. When troubleshooting a defective unit, refer first to Module 2.4 of this Service Handbook This section contains tips on preventing problems as well as a list of common problems.
Page 57: Troubleshooting Updates
Page: 42 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.2 TROUBLESHOOTING UPDATES 2.2.01 General Information Okidata distributes updated troubleshooting information in three ways. 1. Okilink II 2. Faxable Facts 3. Technical Service Bulletins 2.2.02 Okilink II Okilink II is Okidata's Bulletin Board Service. This service is available to all Okidata Certified Service Technicians.
Page 58 Page: 43 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.3 REPORTING PROBLEMS 2.3.01 General Information Okidata strives to provide accurate and detailed service information through its training materials. The Technical Training Group realizes that service technicians have valuable experience, knowledge, and opinions.
Page 59 Information Provided Please provide the following information when reporting problems. 1. Okidata Dealer Number 2. Technicians Name 3. Company Name 4. Company's Address (Street, City, State/Province, ZIP / Postal Code, Country) 5. Telephone and Fax Numbers (with area / country access codes) 6.
Page 60 Page: 44 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.4 TROUBLESHOOTING TIPS 2.4.01 Preliminary Checks 1. Is the unit operated under the proper ambient conditions? 2. Is the paper being used made specifically for xerographic printing? 3. Have the toner cartridge and image drum been replaced as recommended? 4.
Page 61 3. The display tells you to replace paper even though there is paper in the cassette. - Remove the paper cassette and make sure that the paper is firmly stacked in the cassette. Push the paper under the tabs on the sides of the paper cassette. 4.
Page 62 9. When you receive long faxes or make copies of long documents, the bottom is always cut off. - Try enabling the RX SPLIT PRINT or COPY SPLIT PRINT User Functions. These functions will split long documents across two pages. 10.
Page 63 - You have only 15 seconds to answer a voice request. Once you hear the warbling tone, pick up the handset, then press the VOICE REQUEST. 17. Your unit will not poll the remote fax machine. - Call the person at the remote fax machine and make sure they have loaded documents and placed their machine in the Polling Transmission Mode.
Page 64 to answer the telephone before the unit switches back to fax mode, modify the TEL/FAX TIMER PRG. Okifax 2200: User Function 10 Okifax 2400/2600: Technical Function 64 22. The unit is too loud. - Adjust the Monitor Volume Okifax 2200: User Function 05 Okifax 2400/2600: Technical Function 10 - Adjust the Incoming Ring Volume.
Page 65 proceed. - If a department ID is not in use, power OFF the unit. Wait ten seconds. Power ON the unit. 26. The unit is connected to an answering machine and it doesnt work. - Enable the Telephone Answering Device (TAD) Mode. Okifax 2200: Technical Function 45 Okifax 2400/2600: TAD Mode is not used Copyright 1997, Okidata, Division of OKI America, Inc.
Page 66 Page: 45 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.5 REPAIR ANALYSIS PROCEDURES 2.5.01 General Information When using the Repair Analysis Procedures (RAPs), follow these steps. 1. Work through the Start Here Flowchart. If the problem is not resolved, proceed to the next step. 2.
Page 67 Page: 46 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.5.02 RAP Index RAP & Description 01 No LCD Display 02 Alarm LED is lit 03 Printing Test Failure 04 Local Copy Problem 05 Auto Dial Problem 06 Data Transmission Problem 07 Auto Reception Problem 08 Reception Problem 09 Scan Operation Test Failure...
Page 68 21A Poor Print Quality 21B Dark Background Density 21C Printed Output is Blank 21D Vertical Black Stripes 21E Repetitive Spaced Marks 21F Vertical White Stripes 21G Areas Missing 21H Poor Fusing Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 69 Page: 47 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis Start Here Flowchart START Does the LCD operate? Refer to RAP 01 YES Does the ALARM LED light? Refer to RAP 02 NO Press SELECT FUNCTION. Does the appropriate message appear on the LCD? Okifax 2200: POLLING RX Okifax 2400/2600: SELECT FUNCTION (OT) NO Replace the operation panel...
Page 70 Refer to RAP 07 (Auto Reception Failure YES Is there a reception problem? Refer to RAP 08 (Reception Problem) NO Verify symptom and refer to the appropriate RAP. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 71: Rap 01 No Lcd Display
Page: 48 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP01 No LCD Display START Is the LCD lit? Is the unit powered ON? Power ON the unit. Verify that the memory board is properly installed. Go to CHECK 1. Press SELECT FUNCTION. Does the appropriate message appear on the LCD? Okifax 2200: POLLING RX Okifax 2400/2600: SELECT FUNCTION (OT) End of procedure.
Page 72 End of procedure. Check that the memory board is properly connected. If the problem remains, replace the memory board. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 73 Page: 49 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 02 Alarm LED Is Lit START Is the problem a communication error? NO Go to CHECK 1. YES Press the STOP key. Does the ALARM LED go OFF? YES End of procedure. NO Go to CHECK 1.
Page 74: Rap 03 Print Test Failure
Page: 50 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 03 Print Test Failure START Perform the Self Diagnosis Test. Is the Self Diagnosis Test OK? YES End of procedure. NO Perform the Print Test. Is the Print Test OK? NO Refer to the RAP 21.
Page 75: Rap 04 Local Copy Problem
Page: 51 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 04 Local Copy Problem START Perform the Self Diagnosis Test. Are the results satisfactory? NO Refer to RAP 03. YES Load a document. Does the document reach PC1 photocoupler? NO Perform each of the following until the problem is resolved. Check PC1.
Page 76 Page: 52 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis Checking PC1 and PC2 Okifax 2200 / Okifax 2400 This unit has two PC1 sensors and one PC2 sensor. To check the sensors, follow this procedure. 1. Place the positive lead from a digital multimeter at the points listed below. PC1 (Document Detect Sensor): Main Control Board CN 12, Pin 2 PC1 (B4 Width Sensor): Main Control Board CN 12, Pin 8 PC2 (Paper Leading Edge Sensor): Main Control Board CN 12, Pin 5...
Page 77 5. If necessary, replace the sensor. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 78: Rap 05 Auto Dial Problem
Page: 53 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 05 Auto Dial Problem Make sure that the selected dialing method (tone/pulse) is appropriate for the TELCO / PBX needs. Refer to the Dialing Parameters in the Users Documentation. START Does the manual dial function properly? NO Can a dial tone be heard when the handset is picked up? NO Check the line cable and the exchange.
Page 79 Has the problem been resolved? YES End of procedure. NO Contact Technical Support. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 80: Rap 06 Data Transmission Problem
Page: 54 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 06 Data Transmission Problem This section explains how to localize the cause of problems occurring after completion of connection with a remote station. START Adjust send signal power level. Okifax 2200: Technical Function 21 Okifax 2400/2600: Technical Function 57 Has the problem been resolved? YES End of procedure.
Page 81 NO Set PROTECTIVE TONE to ON (for international calling) Okifax 2200: Technical Function 16 Okifax 2400/2600: Technical Function 80 Has the problem been resolved? YES End of procedure. NO Set MH ONLY to ON. Okifax 2200: Technical Function 07 Okifax 2400/2600: Technical Function 75 Has the problem been resolved? YES End of procedure.
Page 82: Rap 07 Auto Reception Problem
Page: 55 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 07 Auto Reception Problem START Is the manual reception OK? NO Does the handset /telephone ring when a call arrives? NO Perform the following Check the handset/telephone set, the line, and the exchange. YES Answer the call.
Page 83 YES End of procedure. NO Replace the line board. Has the problem been resolved? YES End of procedure. NO Contact Technical Support. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 84: Rap 08 Reception Problem
Page: 56 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 08 Reception Problem This section explains how to localize the cause of problems occurring after completion of connection with a remote station. START Adjust the equalizing level. Okifax 2200: Technical Function 22 Okifax 2400/2600: Technical Function 60 Has the problem been resolved? YES End of procedure.
Page 85 NO Set MH ONLY to ON. Okifax 2200: Technical Function 07 Okifax 2400/2600: Technical Function 75 Has the problem been resolved? YES End of procedure. NO Change the HIGH-SPEED MODEM RATE as follows. Okifax 2200: 4800 bps - Technical Function 13 Okifax 2400/2600: 9600 bps - Technical Function 86 Replace the problem unit with a known "good"...
Page 86: Rap 09 Scan Operation Test Failure
Page: 57 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 09 Scan Operation Test Failure NOTE: Set SENSOR CALIBRATION to ON. Okifax 2200: Technical Function 25 Okifax 2400/2600: Technical Function 84 START Perform the Sensor Calibration Adjustment. Does "SCANNING ERROR" appear on LCD while adjusting? YES Check that white plain bond paper of correct size is loaded on the feeder.
Page 87 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 88: Rap 10 Led Test Failure
Page: 58 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 10 LED Test Failure START Perform the LED TEST. Do all of the listed LEDs light? Okifax 2200 ALARM > PHOTO >DARK > NORMAL> LIGHT> AUTO REC Okifax 2400/2600 ALARM > PHOTO > EX.FINE > FINE > STD> LIGHT> NORMAL> DARK >AUTO REC YES End of procedure.
Page 89: Rap 11 Tone Send Test Failure
Page: 59 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 11 Tone Send Test Failure START Is the Line Monitor Volume adjusted so the tone will be audible? Okifax 2200: Technical Function 05 Okifax 2400/2600: Technical Function 10 NO Modify the appropriate Technical Function. YES Is CN3 (Speaker Harness) connected to CN3 of the main control board? YES Replace the main control board.
Page 90: Rap 12 High Speed Modem Test Failure
Page: 60 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 12 High Speed Modem Test Failure START Perform the High Speed Modem Send Test for the transmitter. Perform the High Speed Modem Receive Test for the receiver. If you are in RX mode, go to A. If you are in the TX mode, continue here. Does the modem signal (.14 vac) appear at Pin 1 and 4 of CN7 (network control board)? YES Replace network control board.
Page 91 Has the problem been resolved? YES End of procedure. NO Replace the line board. Has the problem been resolved? YES End of procedure. NO Checking CN5 on the main control board, is -12 vdc present at Pin 14 and +12 vdc present at Pin 15? YES Check the route of these voltages (cable between the network control board and the main control board).
Page 92: Rap 13 Multi-Frequency Send Test Failure
Page: 61 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 13 Multi-frequency Send Test Failure START Detach the phone line from the unit. Remove the right side and rear covers. Set up an oscilloscope as listed below. Set the time / div to .5 ms / division. Set Channel 1 volts / div to .1 volt / division. Perform MF Send Test.
Page 93: Rap 14 Voice Message Test Failure
Page: 62 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 14 Voice Message Test Failure START Perform the Voice Message Test. Has the Monitor Volume been set to LOW or HIGH? Okifax 2200: User Function 05 Okifax 2400/2600: Technical Function 10 NO Set Monitor Volume to LOW or HIGH.
Page 94: Rap 15 No Acoustic Line Monitor
Page: 63 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 15 No Acoustic Line Monitor There are two source routes of the acoustic line monitor. General communication signal DP pulse signal START Has the Monitor Volume been set to LOW or HIGH? Okifax 2200: User Function 05 Okifax 2400/2600: Technical Function 10 NO Set Monitor Volume to LOW or HIGH.
Page 95: Rap 16 Document Does Not Feed
Page: 64 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 16 Document Does Not Feed START Place document(s) on the ADF tray. Does the ADF roller rotate? NO Check that the scan motor is properly connected to CN8 of the printer control board. Is the problem resolved? YES End of procedure.
Page 97: Rap 17 Multiple Document Feeds
Page: 65 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 17 Multiple Document Feeds START Are the leading edges of the documents aligned? NO Align them. YES Is the separation rubber dirty? YES Clean it with water. NO Does the separation rubber assembly return to its original position when pushed? NO Check the ADF spring, the tension arm, and the back-up plate.
Page 98: Rap 18 Document Skews
Page: 66 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 18 Document Skews START Are the document guides set to meet the document width? Are the documents properly loaded along the guides? NO Set the guides to meet the document width. Load the documents properly along the guides. YES Are all of the documents the same width? NO Load ONLY documents of the same width.
Page 99 NO Set them properly. YES Are the feed rollers dirty? YES Clean them. NO Are the feed rollers worn or slippery? YES Replace them. NO Go to the next step. Is the ADF roller or the sub-roller dirty? YES Clean them. NO Replace the following in the listed order ADF Roller Sub-Roller...
Page 100: Rap 19 Document Jams
Page: 67 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 19 Document Jams START Load a document. Does the document feed? NO Perform each of the following until the problem is resolved. 1. Check PC1. Refer to RAP 04. 2. Replace main control board. 3.
Page 101 Corrective Actions For 1, clean surface and photocopy the document. Use the copy for faxing. For 2, use documents of the specified thickness and photocopy the document. Use the copy for faxing. For 3, cut the leading edge(s) to make them even. For 4, use document within length specified.
Page 102: Rap 20 Problems Shown On Lcd Display
Page: 68 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20 Problems Shown On LCD Display NOTE: The Action Items referred to in RAP 20A through RAP 20G are listed at the end of the LCD Problem Charts. Category LCD Message Display Trouble Trouble- shooting...
Page 103: Rap 20A Cover Open
Page: 69 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20A Cover Open START "COVER OPEN" appears on the LCD display. Close the cover (copy stacker). Has the problem been resolved? YES End of procedure. NO Has the fan motor stopped? YES Is the cover open switch connector out of position? YES Connect the cover open switch connector.
Page 104: Rap 20B Printer Alarm 1
Page: 70 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20B Printer Alarm 1 START "PRINTER ALARM 1" appears on LCD display. Power OFF the unit, the power ON. Does "PRINTER ALARM 1" remain on display? NO Refer to Action Item 3. YES Are the connections of the interface cable between the main control board (CN11) and the printer control board (CN10) correctly made? NO Correctly make the connections.
Page 105: Rap 20C Printer Alarm 2
Page: 71 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20C Printer Alarm 2 START "PRINTER ALARM 2" appears on the LCD display. Power OFF the unit, then power ON. Does "PRINTER ALARM 2" remain on the LCD display? Refer to Action Item 5. Refer to Action Item 6.
Page 106: Rap 20D Printer Alarm 3
Page: 72 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20D Printer Alarm 3 START "PRINTER ALARM 3" appears on the LCD display. Open the cover, then close the cover. Has the fan motor stopped? Refer to Action Item 7 YES Is the fan motor connector properly connected to the printer control board? NO Connect the fan motor connector properly.
Page 107: Rap 20E Printer Alarm 4
Page: 73 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20E Printer Alarm 4 START "PRINTER ALARM 4" appears on the LCD display. Power OFF, then power ON. After a short delay, does "PRINTER ALARM 4" appear on the LCD display? YES Remove the fuser assembly for testing (Refer to the Action Items Diagram).
Page 109: Rap 20F Paper Jam
Page: 74 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20F Paper Jam START "REMOVE THE PAPER AND PRESS STOP" appears on the LCD. Is the paper cassette loaded properly? NO Load it properly. YES Is the paper of the correct specified size? Check both the first and second (optional) tray paper sizes. Replace with paper of the correct specified size Reprogram correct size for appropriate cassette.
Page 110: Rap 20G No Paper Cassette
Page: 75 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 20G No Paper Cassette START "NO PAPER REPLACE PAPER" appears on the LCD display. Has the paper cassette been loaded? YES Load recording paper. Refer to Action Item 14. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 111: Action Items For Lcd Display Problems
Page: 76 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis Action Items for LCD Display Problems Number Action 1 Replace printer control board. If the problem persists, replace power supply board. 2 Check power supply voltages, cover open switch, and cover open switch arm. Replace printer control board.
Page 113: Rap 21 Image Problems
Page: 77 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21 Image Problems NOTE: It is recommended that the image drum area and the contact assembly are kept clean. Index to Image Problems Symptom Reference Figure Flowchart Number Poor Print Quality (images are Figure A light or blurred as a whole) Dark Background Density...
Page 115: Rap 21A Poor Print Quality (Images Light Or Blurred
Page: 78 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21A Poor Print Quality (Images Light or Blurred as a Whole) NOTE: If the output is of poor print quality upon receiving a fax, make a local copy before assuming that the unit is defective.
Page 116 NO Replace the power supply board. Has the problem been resolved? YES End of procedure. NO Replace the printer control board. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 117: Rap 21B Dark Background Density
Page: 79 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21B Dark Background Density NOTE: If a received fax has a dark background, make a local copy before assuming that the unit is defective. It is possible that the transmitting facsimile is defective. START Has the image drum been exposed to external light? YES Place the image drum cartridge into the unit and wait about 30 minutes before testing or replacing...
Page 118: Rap 21C Printed Output Is Blank
Page: 80 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21C Printed Output is Blank NOTE: If a fax is received, and the output has black vertical stripes, make a local copy before assuming that the unit is defective. It is possible that the transmitting facsimile is defective. START Is the LED head correctly connected? Check the LED Head connector and connector CN3 on the printer control board.
Page 119: Rap 21D Vertical Black Stripes On Printed Output
Page: 81 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21D Vertical Black Stripes on Printed Output NOTE: If a fax is received, and the output has black vertical stripes, make a local copy before assuming that the unit is defective. It is possible that the transmitting facsimile is defective. START Is the TONER LOW message displayed? YES Add toner.
Page 120: Rap 21E Repetitive Spaced Marks On Printed Output
Page: 82 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21E Repetitive Spaced Marks on Printed Output NOTE: If a fax is received, and the output has repetitive spaced marks a local copy before assuming that the unit is defective. It is possible that the transmitting facsimile is defective. START Measure the distance between marks to identify the problem Distance Between...
Page 121: Rap 21F Vertical White Streaks On Printed Output
Page: 83 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21F Vertical White Streaks on Printed Output NOTE: If a fax is received, and the output has vertical white streaks, make a local copy before assuming that the unit is defective. It is possible that the transmitting facsimile is defective. START Is the LED head dirty? YES Clean the LED head.
Page 122: Rap 21G Areas Missing From Printed Output
Page: 84 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21G Areas Missing From Printed Output NOTE: If a fax is received, and the output has missing print, make a local copy before assuming that the unit is defective. It is possible that the transmitting facsimile is defective. START Check to see if there is a sufficient amount of toner in the image drum cartridge.
Page 124: Rap 21H Poor Fusing
Page: 85 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis RAP 21H Poor Fusing NOTE: If the fusing unit is not functioning, the message PRINTER ALARM 4 will be displayed on the LCD. Refer to RAP 20E. Use RAP 21H when printed output smears when touched. START Is the paper used designed for use in xerographic printers? NO Use paper designed for use in xerographic paper.
Page 125 Page: 86 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6 TESTS General Information NOTE: Before running the tests, the unit MUST be in the idle mode. The operator or service technician can perform the following tests by using the numeric key pad. 1.
Page 126 Page: 87 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.01 Self-Diagnosis General Information The Self-Diagnosis verifies operation of the printer unit, and confirms the presence of Random Access Memory (RAM) and Read-Only Memory (ROM). The ROM Version is also printed. Procedure 1.
Page 127 12. Status of optional RAM card (if installed) 13. Printout of TX and RX Counters Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 128: Sensor Calibration / Scanning Check
Page: 88 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.02 Sensor Calibration / Scanning Check General Information This test has two parts. Sensor Calibration calibrates the contact image sensor (CIS). 1. Okifax 2200 2. Okifax 2400/2600 Scanning Check checks the operation of the automatic document feed system (ADF). 3.
Page 129 5. Load a sheet of white letter size paper in the document feed area. The longer edge MUST be the leading edge. 6. Press LEFT ARROW. The unit will calibrate the contact image sensor and display the sequence of messages listed below. Refer to RAP 09 should sensor calibration fail.
Page 130 Refer to RAP 09 should sensor calibration fail. Sensor Calibration will be automatically set to OFF upon completion of the sensor calibration. ADJUSTING FOR LEVEL ADJUSTING [A3] ADJUST FOR LEVEL RESULT = OK 1: LOCAL TEST? YES ( ¬ ) NO( ® ) 6.
Page 131 Okifax 2400/2600 The Okifax 2400/2600 does not utilize the scanning check (ADF Test). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 132 Page: 89 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.03 LED Test General Information The LED Test verifies the operation of the LEDs on the operator panel. Procedure 1. Press SELECT FUNCTION. 2. Press COPY twice. 3. Press LEFT ARROW twice. 4.
Page 133: Tone Test
Page: 90 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.04 Tone Test General Information The Tone Test allows service technicians to test the frequencies used in handshaking. Procedure Okifax 2200 1. Press SELECT FUNCTION. 2. Press COPY twice. 3. Press LEFT ARROW twice. 4.
Page 135: High-Speed Modem Transmit Test
Page: 91 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.05 High-Speed Modem Transmit Test General Information This test must be run in conjunction with an unit at a remote location. The remote unit must be set up to run the High Speed Modem Receive Test before transmission begins. Procedure Okifax 2200 1.
Page 136 MODEM SEND TEST [ XXXX] YES ( ¬ ) NO ( ® ) XXXX = Frequency 6. Press RIGHT ARROW until desired frequency appears on the LCD display. 7. Press LEFT ARROW. 8. Press LEFT ARROW. The following message will be displayed. MODEM SEND TEST TX / WW / XX YY"...
Page 137: High-Speed Modem Receive Test
Page: 92 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.06 High-Speed Modem Receive Test General Information This test must be run in conjunction with an unit at a remote location. The remote unit must be set up to run the High Speed Modem Transmit Test before transmission begins. Procedure Okifax 2200 1.
Page 138 The following message will be displayed. MODEM REC. TEST RX. / WW / XX YY" ZZZZ WW = Data Rate XX = Communication Duration in minutes YY = Communication Duration in seconds ZZZZ = Error Count 7. Press STOP to end the test 8.
Page 139 Page: 93 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.07 Multi-Frequency Send Test General Information This test is used to verify the operation of the multi-frequency touch-tone signals from the LINE terminal. Procedure 1. Press SELECT FUNCTION. 2. Press COPY twice. 3.
Page 140 Page: 94 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.08 Print Test General Information This tests the printer unit separately from the facsimile device. refer to RAP 14. If the test fails, Procedure 1. Press SELECT FUNCTION. 2. Press COPY twice. 3.
Page 141 Page: 95 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.6.09 Voice Message Test General Information This voice message test verifies the proper operation of the units voice message capability. All languages are tested, regardless of the selected language. The voice message function is used in the TEL/FAX Mode.
Page 142 Page: 96 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.7 REPORTS 2.7.01 General Information Reports can be used to check operations, settings, and activities of the facsimile machine. This section provides the Service Codes used in the Activity Report and information on the Protocol Dump Report.
Page 143: Service Codes List (Activity Report)
Page: 97 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.7.02 Service Codes List (Activity Report) The Service Codes are the same for the Okifax 2200, Okifax 2400, and Okifax 2600. Service Code Type Service Code Group Normal Termination Service Code (in all modes) 0000 Error While Dialing Phase A 1xxx...
Page 144 21A5 Received signal other than the desired signal in response to sending 21B0 Transmitter tried to perform Confidential Transmission but the remote receiver is not capable of Confidential Reception 21B1 Transmitter tried to transmit by Broadcast Initiate Function but the remote fax is not capable of Broadcast 21C0 In Closed Network Setting TSI/CIG/CST is either not received or if...
Page 145 41CE Received negative signal in response to the post command 41DB CTC baud rate mismatched 60A0 Broadcast completed 6803 DCN received in response to NSF/DIS without sending a single picture 68A0 Multiple Polling Reception completed 9080 STOP key was pressed during a transmission 9081 T1 time out 9082...
Page 146 90F3 Recording paper size error 90F4 Cover open 90F5 Interface (I/F) error. Defective interface between the main controller board and the printer interface board. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 147 Page: 98 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.7.03 Protocol Dump General Information The Protocol Dump Report provides the service technician with a tool to analyze the control signals of G3 protocol transmissions and receptions. This report can be generated manually or automatically (Okifax 2200 ONLY).
Page 149: Facsimile Control Field Conversion Table
Page: 99 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis Facsimile Control Field Conversion Table This table shows all facsimile control field (FCF) signals which are needed to analyze the printed protocol dump data. Some signals have two different hexadecimal codes, in accordance with the calling party or called party. The signals are the same for the Okifax 2200, Okifax 2400, and Okifax 2600.
Page 150 PRI-EOP Procedure Interrupt-EOP Disconnect Command Repeat Continue to Correct Response to Continue to Correct End of Retransmission Response to End of Retransmission Facsimile Coded Data Partial Page Signal Partial Page Request Return to Control for Partial Page Receive Not Ready Receive Ready Copyright 1997, Okidata, Division of OKI America, Inc.
Page 151 Page: 100 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.8 RESETS WARNING: Although there is a PRINTER COUNTER RESET available, DO NOT reset the counter. This counter is used to keep track of the total number of printed pages. The Service Bit (Okifax 2200) or the appropriate bit of the Service Parameter (Okifax 2400/2600) must be set to ON before resetting any counters.
Page 152 Page: 101 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.8.01 General Information The following unit counters must periodically be reset. 1. Toner Counter 2. Drum Counter 3. Fuser Counter Viewing the Counters To view the counters (without resetting), follow this procedure. Okifax 2200 1.
Page 153 NEXT ( ¬ / 1-4 ) CLEAR ( ® ) 3. Press LEFT ARROW or number of counter to view. 1 Print 2 Toner 3 Drum 4 Fuser 4. Press SELECT FUNCTION to exit OR Enter the number of another counter to view. Copyright 1997, Okidata, Division of OKI America, Inc.
Page 154: Toner Counter Reset
Page: 102 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.8.02 Toner Counter Reset General Information Reset the Toner Counter whenever a new toner cartridge is installed. Procedure To reset this counter, perform the following actions. NOTE: The Service Bit (Okifax 2200) or the appropriate bit of the Service Parameter (Okifax 2400/2600) must be set to ON to reset this counter.
Page 155 The following message will be displayed. 2: TONER COUNT = XXXXXX NEXT ( ¬ / 1 - 4 ) CLEAR ( ®) 4. Press RIGHT ARROW. The following message will be displayed. 2: TONER COUNT CLEAR? YES ( ¬ ) NO ( ® ) 5.
Page 156: Drum Counter Reset
Page: 103 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.8.03 Drum Counter Reset General Information Reset the Drum Counter whenever image drum cartridge is replaced. Procedure To reset this counter, perform the following actions. NOTE: The Service Bit (Okifax 2200) or the appropriate bit of the Service Parameter (Okifax 2400/2600) must be set to ON to reset this counter.
Page 157 3. Enter "3" from the numeric keypad. The following message will be displayed. 3: DRUM COUNT = XXXXXX NEXT ( ¬ / 1 - 4 ) CLEAR ( ®) 4. Press RIGHT ARROW. The following message will be displayed. 3: DRUM COUNT CLEAR? YES ( ¬...
Page 158: Fuser Counter Reset
Page: 104 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.8.04 Fuser Counter Reset General Information Reset the Fuser Counter whenever the Fuser Unit is replaced. Procedure To reset this counter, perform the following actions. NOTE: The Service Bit (Okifax 2200) or the appropriate bit of the Service Parameter (Okifax 2400/2600) must be set to ON to reset this counter.
Page 159 The following message will be displayed. 4: FUSER COUNT = XXXXXX NEXT ( ¬ / 1 - 4 ) CLEAR ( ®) 4. Press RIGHT ARROW. The following message will be displayed. 4: FUSER COUNT CLEAR? YES ( ¬ ) NO ( ® ) 5.
Page 160 Page: 105 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.8.05 System Reset General Information CAUTION: Performing a System Reset will cause the loss of all programmed user and service data. ALL programmable feature are reset to factory default settings. Print a copy of the reports listed below before resetting the system. These reports provide a record of all programmed features.
Page 161 Press the "2" key: LOCATION DATA CLR. Press the "3" key: CONFIG DATA CLR. Press the "4" key: TX PAGES CLR. Press the "5" key: RX PAGES CLR. Okifax 2400/2600 Press LEFT ARROW: ALL DATA CLR. Press the "2" key: LOCATION DATA CLR. Press the "3"...
Page 162: Technical Function Settings
Page: 106 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.9 TECHNICAL FUNCTION SETTINGS 2.9.01 Accessing the Technical Function Settings In order to access the Technical Function settings, perform the following actions. 1. Press SELECT FUNCTION. 2. Press COPY twice. 3. Press LEFT ARROW. 4.
Page 163 Page: 107 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis List of Technical Functions - Okifax 2200 Name Purpose Default Line Monitor Control Selects the monitoring range. <R> ON Off-Hook to DCN<R>OFF: Off-Hook to DIS Automatic Protocol Reports handshaking and protocol data for each Dump Select communication Automatic MCF...
Page 164 Ignoring the First This function can be selected to compensate for poor phone line quality.<R>This function causes the Okifax 2200 to ignore the first DIS and "listen" for the second DIS. This allows time for line echo to settle so a clear DIS can be recognized. Interval Between Settings: 75 ms or 1.5 seconds.
Page 165 Video FACTORY USE ONLY<R><$!B02> N/A<$!B02> <$ Parameter<$!B02> > MDY / DMY Selects the format of the date displayed on the operator panel and printed on reports.<R>Settings:<R><_><_>MDY: Month/Day/Year<R><_><_>DMY: Day/Month/Year CCITT ECM Enables the use of the CCITT Error Correction Mode. Receive in Memory Enables the Memory RX Function when the following occur.<R><_><_>NO PAPER<R><_><_>COVER...
Page 166 Ring Duration Selects the minimum Ring Detection 120 msec. Detection Time Time.<R>Settings: 10 msec. to 120 msec. (in 10 msec. increments). CML Timing Sets the time from the end of the ring to CML 300 msec. ON.<R>Settings: 00 to 990 msec. (in 10 msec. increments.) Activity Report For security purposes enables/disables the...
Page 167 Page: 108 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis List of Technical Functions - Okifax 2400/2600 Name Specifications Default Message Confirmation Enables (ON) or disables (OFF) the automatic Report (Single printing of the Message Confirmation Report Location) after a single location call. Message Confirmation Enables (ON) or disables (OFF) the automatic Report (Multiple...
Page 168 Distant Station ID Enables (ON) or disables (OFF) printing the distant station ID on reports (Activity and Message Confirmation). This is often used as a security measure. Line Monitor Volume Controls the volume. Settings: OFF LOW or HIGH Buzzer Volume Adjusts the volume of the following: touch tone of each key end of communication buzzer voice request buzzer and off-hook...
Page 169 Verification Stamp Enables (ON) or disables (OFF) printing a circular mark near the bottom of the page when an MCF RTP or PIP is received in response to a page being sent. A printed stamp indicates successful TX. NOTE: If Verification Stamp (Technical Function 18) is set to ON Technical Function 15 - MEMORY transmit will be disabled.
Page 170 No Toner Memory Enables (ON) or disables (OFF) storing Reception received messages in memory when the unit is out of toner. ON: Messages print when toner is supplied or the operator performs the substitutive operation (One Touch Key 24). OFF: Messages print but print quality is not guaranteed.
Page 171 NOT USED NOT USED Copy Split Printing In the copy mode a document longer than the printing length of the recording paper is printed on multiple pages. ON: Split printing occurs. OFF: The part of the document beyond the first recording page will not be printed. RX Split Printing When a received document is longer than the available printing length of the recording paper...
Page 172 Redial Interval Switches the redial interval to meet the 3 min. installed country's regulations. Settings: 0 to 15 minutes (one minute increments). Timeout Timer Defines the interval between completion of 59 sec. dialing and the start of TX or polling RX communication AND the line hold time for a telephone call in ON-HOOK.
Page 173 ON: The fax unit receives all messages in memory reception mode. Print starts at the end of reception and after completion of fuser preheat. OFF: Power Save Mode disabled. Calendar Format Selects the format of the date displayed on the M/D/Y operator panel and printed on reports.
Page 174 MF Attenuator Adjusts the attenuation (dB) for the MF tone 3 dB send signal power level. Settings: 0 to 15 dB (in one dB increments). Voice Attenuator Adjusts the attenuation (dB) for the voice 12 dB message send signal power level. Settings: 0 3 6 9 12 or 15 dB.
Page 175 RS-232-C Mode Specifies the RS-232-C mode. NOTE: This setting is available to the operator ONLY when the optional RS-232-C board is installed in the unit. A.<_>OFF B.<_>Encryption Mode C.<_>Modem MUX Mode: CE / CF Mode <_><_>TX Rate: 9.6 7.2 4.8 or 2.4 kpbs 9.6 kpbs D.<_>Dump Mode Scanner Mode:...
Page 176 Ignoring the first DIS This function can be selected to compensate for poor phone line quality. It causes the unit to ignore the first DIS and "listen" for the second DIS. This allows time for the line echo to settle so a clear DIS can be recognized. Interval between CED Selects the length of the interval between CED 75 ms...
Page 177 Smooth Printing Enables (ON) or disables (OFF) smooth printing. Smooth printing occurs when documents are received in STD or FINE mode. A density of 15.4 line/mm is achieved by generating and printing an extra line of print between two consecutive original lines. Service Parameter The Service Parameter contains 24 bits which 827800...
Page 178 Page: 109 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.9.02 Service Bit / Service Parameter Okifax 2200 (Technical Function 27) General Information The Service Bit enables or disables the following functions. 1. Drum Counter Display 2. Fuser Counter Display 3. Toner Counter Display 4.
Page 179 9. Press LEFT ARROW to store the selected setting and display the next function. 10. Press SELECT FUNCTION to exit. Okifax 2400/2600 (Technical Function 91) General Information The Service Parameter is comprised of 24 bits. Each bit controls one function. Each function has two states (1 or 0). Groups of four bits are controlled by one hexadecimal number.
Page 180 Below is a table for converting decimal to hexadecimal values. This procedure is continued on the next page. 5. Press SELECT FUNCTION. 6. Press COPY twice. 7. Enter "2" from the numeric keypad. 8. Press LEFT ARROW. 9. Enter "91" from the numeric keypad. The following message will be displayed.
Page 181 Page: 110 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis Bit Assignments Table Service Parameter is assigned in 24-bits as listed below. The default setting for the Service Parameter is: 807800.
Page 183 Page: 111 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.10 TEL / FAX AUTOMATIC SWITCHING 2.10.01 General Information The unit can automatically distinguish between voice and fax telephone calls. If the incoming call is a voice call, the unit will play a message asking the caller to wait while it rings to tell the user to pick up the handset.
Page 184 Page: 112 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.11 TOUCH TONE MODE 2.11.01 General Information This mode allows the unit to be controlled from a remote location through a touch-tone keypad (telephone or fax unit). Refer to the Users Guide for further information. Copyright 1997, Okidata, Division of OKI America, Inc.
Page 185 Page: 113 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.12 DIALING PARAMETERS 2.12.01 General Information There are four ways of dialing a number through the fax unit. 1. Numeric Keypad 2. External Telephone 3. One Touch Keys 4. Auto Dial Keys The One Touch and Auto Dial Keys allow the operator to program numbers into the fax machines.
Page 186 Page: 114 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.13 USER FUNCTIONS 2.13.01 General Information There are 25 programmable User Functions in the Okifax 2200. There are 83 programmable User Functions in the Okifax 2400/2600. The operator can program / set these functions to customize the operation of the unit. Refer to the Users Guide for further information.
Page 187 Page: 115 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis 2.13.02 Dual Access Combination Table - Okifax 2400/2600 NOTE: Dual Access is available ONLY with the Okifax 2400 and Okifax 2600 units.
Page 188 O Available X Not Available \ Not Applicable D Available with some limitations Priority of copy set in user/service settings ON: Copy priority. No auto receive. Equivalent of X. OFF: Receive priority. Copy interrupted and transition made to auto receive. In this case, copy operation does not automatically resume after completion of receive operation.
Page 189: General Operation Diagrams
Page: 116 Service Guide OF2200/2400/2600 Chapter 2 Failure Analysis Load from ventura if possible... 2.14 GENERAL OPERATION DIAGRAMS 2.14.01 General Information The following pages are a graphical representation of the access path for the various functions of the facsimile unit. For detailed information on each function, refer to the appropriate Users Documentation or section of this Service Handbook.
Page 190 Document Loading Date & Time / Select Location Broadcast / (Memory TX) Long Document TX Delayed Memory TX Select Group Delayed TX Confidential TX Relay Broadcast Initiate - TX Polling RX Document Not Loaded Document Not Loaded Press SELECT FUNCTION. Printout of MSG in Memory (if present) Confidential MSG Printout (if present) Polling RX...
Page 191 9. Voice Msg Send Test 2. Technical Function Press LEFT ARROW to access functions. Then, enter the function number. Refer to Module 2.9. 3. System Reset Press LEFT ARROW to access resets. Then, enter the reset number. 1. All Data Clear 2.
Page 192 *. Protocol Dump ** Service Bit set ON ** User Program [Access by pressing and holding SELECT FUNCTION during Power ON) Press LEFT ARROW to access programs. Then, enter the program number. 1. One Touch Key Prg 2. Two Digit Auto Dial Prg 3.
Page 193 MF (TONE) or DP (Pulse) Pulse Dial Rate ** Service Bit set ON ** Pulse Make Ratio ** Service Bit set ON ** Pulse Dial Type ** Service Bit set ON ** MF (Tone) Duration ** Service Bit set ON ** PBX Line ** Service Bit set ON ** Access Digit...
Page 195 Page: 117 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.1 MAINTENANCE 3.1.01 General Information This section lists the parts replacement, adjustment, cleaning, and lubrication procedures. Disassembly should not be performed unless absolutely necessary. NEVER perform disassembly on a malfunctioning unit until you have followed the failure analysis procedures in Module Two of this Service Handbook.
Page 196 the correct sequence may result in damaged parts. · Since screws, collars, and other small parts are easily lost, they should be temporarily attached to the original positions. · When handling circuit boards, use extreme care. Integrated circuits (microprocessors, ROM, and RAM) can be destroyed by static electricity. ·...
Page 197: Disassembly/Assembly Procedures
Page: 118 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2 DISASSEMBLY/ASSEMBLY PROCEDURES General Information This section contains the disassembly procedures. Only the removal procedures are explained here. Reverse the procedure for the installation. This Service Handbook lists the disassembly procedures for major components of the unit. Be sure to read all notes, cautions, and warnings, as they contain important information regarding disassembly / assembly.
Page 198: Preliminary Items
Page: 119 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.01 Preliminary Items 1. Press the AC switch and power OFF the unit. 2. Detach the AC power cord. 3. Detach the modular telephone cord. 4. Remove the handset cord (1) and handset (2). 5.
Page 199 Pinion Plate: Sheet P/N 51113110 Cork: Friction Guide: Universal (T) P/N 70026101 Tray: Legal/Universal Paper Option B.2.18 (100 Sheet Capacity) P/N 50105501 Stacker: Universal (Assembly) RSPL B.2.01 Includes the items listed below. P/N N/A Stacker: Universal P/N N/A Sub: Stacker Copyright 1997, Okidata, Division of OKI America, Inc.
Page 200 Page: 120 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.02 Document Stay Guide and Assembly; Rear and Terminal Cap Covers 1. Open the document guide assembly. 2. Remove the two screws from the document guide stay. 3. Remove the document guide stay. 4.
Page 201 P/N N/A Spring: Rack P/N N/A Table: Guide Document P/N N/A Tray: Sub Hopper P/N N/A Screw Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 202: Right Side Cover And Speaker
Page: 121 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.03 Right Side Cover and Speaker CAUTION Do NOT attempt to remove the right side cover until all memory cards have been removed. If the right side cover is removed too quickly, the speaker wires could be damaged. To completely remove the right side cover, you must also remove the speaker.
Page 204 Page: 122 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.04 Network Control Unit 1. Perform procedure 3.2.02. 2. Detach the fan connector from the printer control board. 3. Remove the two screws. 4. Remove the network control unit by pulling it toward you. 5.
Page 205: Left Side Cover Assembly
Page: 123 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.05 Left Side Cover Assembly 1. Perform procedure 3.2.02. 2. Open the document stacker cover and the document table. 3. Detach the two pin connector cable from the main control board. 4.
Page 206 Page: 124 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.06 Cradle Assembly 1. Perform the procedures 3.2.01. 3.2.02. 3.2.05. 2. Remove the two screws from the inner side of the left side cover. 3. Detach the cradle assembly from the three hooks and remove the cradle cover. 4.
Page 207 Page: 125 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.07 Hook Switch Board 1. Perform procedures 3.2.01. 3.2.02. 3.2.05. 3.2.06. 2. Detach the cables and take out the modular jack. 3. Remove the two screws that retain the hook switch board. 4.
Page 208 Page: 126 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.08 Memory Board 1. Perform procedures 3.2.02. 3.2.03. 3.2.08. 2. Remove the three screws (A) that retain the memory board bracket. 3. Detach the memory board with the memory board bracket from the connection board. 4.
Page 209: Control Panel Assembly And Paper Guide (U)
Page: 127 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.09 Control Panel Assembly and Paper Guide (U) 1. Perform procedure 3.2.02. 2. Open the control panel assembly. 3. Remove the two screws that retain the ground cables. 4. Remove the two scanner hinges. 5.
Page 210 P/N N/A Label: Ten-Key 2400/2600 B.2.04 P/N 51013601 Guide: Paper Upper RSPL B.2.16 P/N 53071901 Cover: One-Touch RSPL B.2.03 , 04 P/N 53072011 Sheet: One-Touch (U) 2400/2600 RSPL B.2.04 P/N 50105610 Panel: Control (Assembly) 2600 RSPL B.2.04 Includes all of the items listed below. P/N N/A Label: Ten-Key 2400/2600...
Page 211 Page: 128 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.10 Feed (1) and Pinch Rollers; Tension Arm; ADF Spring and Back Up Plate 1. Perform procedure 3.2.09. 2. Remove the four screws. 3. Remove the two upper releases. 4. Remove the four screws from the support plate. 5.
Page 212 P/N 50218701 Release: Upper RSPL B.2.15 P/N 50406201 Roller: Pinch B.2.15 P/N 50926001 Spring: ADF RSPL B.2.15 P/N 50926601 Spring: Upper Pinch (L) B.2.15 P/N 50926602 Spring: Upper Pinch (R) B.2.15 P/N 51304701 Brush: Static (A) B.2.15 P/N 51304801 Brush: Static (B) B.2.15 P/N 51710601 Bracket: Pinch Roller...
Page 213 Page: 129 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.11 Separation Rubber 1. Power OFF the unit and detach the AC power cord. 2. Open the control panel assembly. 3. Detach the separation rubber by removing it from the two hooks. NOTE: When cleaning, refer to Module 3.4 of this Service Handbook.
Page 214: Cover (U)
Page: 130 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.12 Cover (U) 1. Perform procedure 3.2.09. 2. Remove the two screws. 3. Remove the cover (U). P/N 53071701 Cover: (U) RSPL B.2.10 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 215 Page: 131 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.13 ADF Roller, Sub Roller, and Sensor Roller; Paper Guide (M); Release Springs, and Release Levers 1. Perform procedure 3.2.12. 2. Remove the four screws. 3. Detach the two claws from the left side of the paper guide (M). 4.
Page 216 P/N 51013701 Guide: Paper (M) RSPL B.2.10 P/N N/A Cable: Ground B.2.10 P/N 50218801 Release: Lower RSPL B.2.13 P/N 50406701 Roller: Sub (Assembly) RSPL B.2.13 Includes all of the items listed below. P/N N/A Bearing B.2.13 P/N N/A Roller: Sub B.2.13 P/N N/A Gear: A (Z20)
Page 217 Page: 132 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.14 Verification Stamp, Paper Guide (E), and Feed Roller(2) 1. Perform procedure 3.2.13. 2. Remove the two screws. 3. Remove the paper guide (E). 4. Remove the verification stamp from the scanner frame. 5.
Page 219 Page: 133 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.15 Contact Image Sensor Assembly 1. Perform procedure 3.2.14. 2. Detach the connector and remove the four screws. 3. Cut the tie wrap, then remove the contact image sensor assembly. NOTE: When cleaning, refer to Module 3.4 of this Service...
Page 221: Gear Frame Assembly And Scan Motor
Page: 134 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.16 Gear Frame Assembly and Scan Motor 1. Perform procedure 3.2.13. 2. Remove the three screws. 3. Remove the gear frame assembly. 4. Remove the two mounting screws. 5. Remove the cable from the scan motor, then detach the scan motor from the gear frame assembly. NOTE: When lubricating, refer to Module 3.5 of this Service Handbook.
Page 222 P/N N/A Screw B.2.14 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 223: Pc-1, Pc-2, And Pinch Roller
Page: 135 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.17 PC-1, PC-2, and Pinch Roller NOTE: There are two PC-1 sensors (Doc. Detect & B4 Size) on the OF 2200/2400. There are three PC-1 sensors (Doc. Detect & B4 Size & A3 Size) on the OF 2600. All three products contain one PC-2 sensor (Read Station).
Page 225: Release Guide Assembly And Sub-Cover (Right)
Page: 136 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.18 Release Guide Assembly and Sub-Cover (Right) 1. Perform procedures 3.2.05 3.2.08 3.2.09 2. Detach the release guide assembly from the left and right scanner base. 3. Remove the release guide spring and the release guide assembly. 4.
Page 227: Main Control Board, Second Tray Interface Board
Page: 137 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.19 Main Control Board, Second Tray Interface Board 1. Perform procedures 3.2.03 3.2.08 2. Remove the three screws (A). 3. Lift the main control board, and remove the connectors. 4. Remove the main control board. 5.
Page 229 Page: 138 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.20 Lower Base Assembly 1. Perform procedures 3.2.02 3.2.03 3.2.05 3.2.18 2. Open the stacker cover. 3. Disconnect the two stepper motor connectors CN1, CN2, and the LED head cable from connector CN3 of the printer control board.
Page 231: Stacker Cover And Led Head
Page: 139 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.21 Stacker Cover and LED Head 1. Perform procedures 3.2.03 3.2.05 3.2.19 (except when removing LED Head). 2. Open the copy stacker, by pushing the buttons. 3. Disconnect the flat cable from the PC connector. 4.
Page 233: Feed Guide, Eject Roller, And Fusing Unit
Page: 140 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.22 Manual Feed Guide, Eject Roller, and Fusing Unit Assemblies 1. Perform procedure 3.2.21 2. Detach the two hooks by pressing inward on the retainers, then remove the manual feed guide assembly.
Page 235 Page: 141 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.23 Motor Assembly, Resist Motor, and Main Motor 1. Perform the procedure 3.2.20. 2. Remove the five screws (A), then remove the DFCU bracket. 3. Press upward on the two latches, while removing the motor assembly. 4.
Page 237 Page: 142 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.24 Pressure Roller, Transfer Roller and Gear, Idle Gears, Cover Open Arm, and Reset Levers CAUTION: Do NOT touch the transfer roller! Touching the transfer roller may cause incomplete toner transfer, resulting in faded output.
Page 239 Page: 143 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.25 Registration Roller, Sensor Plates, Damper Cover Arm and Gear 1. Perform procedures 3.2.20, 3.2.24. 2. Detach the one-way clutch gear. 3. Remove the resist roller. 4. Detach the one-way clutch gear and bearing. 5.
Page 240 P/N 51607402 Bearing RSPL B.2.06 , 07 P/N 51607501 Bearing: Registration Roller B.2.06 P/N 53069101 Arm: Stacker Cover Damper RSPL B.2.06 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 241 Page: 144 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.26 Line Board and Network Control Board 1. Perform procedures 3.2.02 3.2.04 2. Remove the connector. 3. Remove the three screws(A) and the ground cable. 4. Remove the line board. 5.
Page 243: Printer Control Board And Fan
Page: 145 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.27 Printer Control Board and Fan 1. Perform procedures 3.2.02 3.2.04 2. Detach the two connectors CN2 and CN3 from the power supply board. 3. Remove the two screws. 4. Disconnect the fan cable from CN7 of the printer control board. 5.
Page 245 Page: 146 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.2.28 Power Supply Board, Cassette Tray Assembly, and Cassette Sensor Plate 1. Perform procedure 3.2.02 3.2.03 3.2.04 3.2.05 3.2.12 3.2.27 2. Remove the screw (A). 3. Lift and remove the AC inlet and plate. 4.
Page 246 P/N 50218501 Cassette: Universal (Assembly) RSPL B.2.01 Includes the items listed below. Cassette: Universal Guide: Universal (R) Guide: Universal (L) Rack N/A Pinion Plate: Sheet P/N 51113110 Cork: Friction Guide: Universal (T) P/N 50516501 Spacer B.2.09 P/N 50926301 Spring: Separation (F) RSPL B.2.09 P/N 51014201 Plate: Base...
Page 247 P/N 50806104 Rubber: Foot B.2.08 P/N N/A Spring: Sheet B.2.08 P/N 53345201 Block: Link Pull RSPL B.2.08 P/N N/A Guide: Cassette (L) B.2.08 P/N N/A Link: Sheet (L) B.2.08 P/N N/A Washer: Universal B.2.08 P/N 50219501 Assembly: Cassette Guide (Right) RSPL B.2.08 Includes the items listed below.
Page 248 Page: 147 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.3 ADJUSTMENTS AND SERVICE SETTINGS 3.3.01 General Information The Okifax 2200/2400/2600 requires one adjustment, the LED Head Drive Time setting. This adjustment is performed by setting positions 1 through 4 of Switch 1. On the Okifax 2200, this switch is located on the main controller board.
Page 249 0 = Switch ON Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 250 Page: 148 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.4 CLEANING 3.4.01 General Information CAUTION: If you use a vacuum cleaner that does not have a toner filter, you may severely damage the vacuum cleaner. Do NOT touch the transfer roller! Touching the transfer roller may cause incomplete toner transfer, resulting in faded output.
Page 251 3. Discard the used pad. 3.4.03 Printer Unit 1. Clean the inside of the unit with a vacuum cleaner designed to handle toner. 2. Be sure to thoroughly vacuum around all sensors. CAUTION: If you use a vacuum cleaner that does not have a toner filter, you may severely damage the vacuum cleaner.
Page 252 Page: 149 Service Guide OF2200/2400/2600 Chapter 3 Disassembly & Maintenance 3.5 LUBRICATION 3.5.01 General Information CAUTION: Do NOT touch the transfer roller! Touching the transfer roller may cause incomplete toner transfer, resulting in faded output. Lubrication should be performed once a year or as necessary. Use Dow Corning Molycoat BR-2 or Molycoat EM-30L or equivalent.
Page 253 Gear on the damper stacker arm 3.2.25 Inside of bearings of shaft assembly 3.2.25 shaft, above the fins 3.2.25 Teeth of the reduction gear 3.2.26 Requires Dow Corning Molycoat "HP-3001" high temperature conductive grease Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 254 Page: 150 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.1 BOARD DIAGRAMS A.1.01 General Information This section describes the characteristics of the major printed circuit board assemblies used in the products. The following areas are covered. · Function · Firmware ·...
Page 255: A.2 Index To Charts
Page: 151 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2 INDEX TO CHARTS...
Page 257 Item Description Board Designation Applicable Appendix A Product Reference Main Control Board MCNT-250 2200 A.2.01 Main Control Board DFCU 2400/2600 A.2.02 Printer Control Board PCNT-250 2200 A.2.03 Printer Control Board DFPU 2400/2600 A.2.04 Network Control Unit 2200/2400/2600 A.2.05 Board Power Supply Unit 2200/2400/2600 A.2.06 Memory Board...
Page 258 Page: 152 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.01 Main Control Board (MCNT-250) Okifax 2200 Function The main control board contains an IC that provides voice answering in the TEL/FAX Mode in accordance with the INPUT/OUTPUT Gate Array and the microprocessor. This board converts parallel send data to serial data, converts serial receive data to parallel data, modulates/demodulates data, and generates multi-frequency signals for tone dialing.
Page 261 Page: 153 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.02 Main Control Board (DFCU) Okifax 2400/2600 Function The main control board contains an IC that provides voice answering in the TEL/FAX Mode in accordance with the INPUT/OUTPUT Gate Array and the microprocessor. This board converts parallel send data to serial data, converts serial receive data to parallel data, modulates/demodulates data, and generates multi-frequency signals for tone dialing.
Page 264 Page: 154 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.03 Printer Control Board (PCNT-250) Okifax 2200 Function The printer control board contains ICs and transistors that drive the registration motor, verification stamp, clutch, and transmit stepper motor, drum motor, and DC fan. This board activates the LED Head in accordance with signals received from the main control board.
Page 267 Page: 155 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.04 Printer Control Board (DFPU) Okifax 2400/2600 Function The printer control board contains ICs and transistors that drive the registration motor, verification stamp, clutch, and transmit stepper motor, drum motor, and DC fan. This board activates the LED Head in accordance with signals received from the main control board.
Page 270: A.2.05 Network Control Unit (Ncu)
Page: 156 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.05 Network Control Unit (NCU) Function This board detects the OFF-HOOK condition, converts received analog data to digital signal levels, generates dial pulses, and detects incoming ring signals when a ring signal of 20 Hz at 25 Vrms is input to line terminals L1 and L2.
Page 272: A.2.06 Power Supply Board (Pwu)
Page: 157 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.06 Power Supply Board (PWU) Function The power supply board converts the AC input voltage into +5 vdc, +/-12 vdc and +38 vdc for use throughout the printer. This board generates the high voltages needed for the electrostatic printing process.
Page 275 Page: 158 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.07 Memory Board (MT-25) Okifax 2200 NOTE: The unit MUST be reprogrammed when this board is replaced. Function The memory board stores system memory data picture memory for ECM send/receive mode, picture memory for memory transmission mode, picture memory for the retransmission of data, and image memory for reception in memory.
Page 278 Page: 159 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.08 Memory Board (DFME) Okifax 2400/2600 NOTE: The unit MUST be reprogrammed when this board is replaced. Function The memory board stores system memory data picture memory for ECM send/receive mode, picture memory for memory transmission mode, picture memory for the retransmission of data, and image memory for reception in memory.
Page 281: A.2.09 Line Interface Board (Line)
Page: 160 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.09 Line Interface Board (LINE) Function This board sends and receives data from the telephone line. Firmware NONE Fuses NONE Jumpers NONE Sensors NONE Switches Ring Volume Adjustment Three Positions: Low, Medium, High Test Points CN 2: Pin 4 + 12 vdc CN 5: Pins 1, 2 - 8 vdc...
Page 283: A.2.10 Connector Board (Cb-250)
Page: 161 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.10 Connector Board (CB-250) Function This board connects the unit to the optional paper tray. Firmware NONE Fuses NONE Jumpers NONE Sensors NONE Switches NONE Test Points NONE Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 284 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 285 Page: 162 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2200 - 1 of 5...
Page 288 Page: 163 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2200 - 2 of 5...
Page 291 Page: 164 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2200 - 3 of 5...
Page 294 Page: 165 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2200 - 4 of 5 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 295 Page: 166 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2200 - 5 of 5 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 296 Page: 167 Service Guide OF2200/2400/2600 Chapter A Board Diagrams A.2.12 Interconnect Diagrams (2400/2600) Okifax 2400/2600 - 1 of 6...
Page 299: Okifax 2400/2600 - 2 Of 6
Page: 168 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2400/2600 - 2 of 6...
Page 302: Okifax 2400/2600 - 3 Of 6
Page: 169 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2400/2600 - 3 of 6...
Page 305: Okifax 2400/2600 - 4 Of 6
Page: 170 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2400/2600 - 4 of 6 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 306: Okifax 2400/2600 - 5 Of 6
Page: 171 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2400/2600 - 5 of 6 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 307: Okifax 2400/2600 - 6 Of 6
Page: 172 Service Guide OF2200/2400/2600 Chapter A Board Diagrams Okifax 2400/2600 - 6 of 6...
Page 310 Page: 173 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.1 ILLUSTRATED PARTS LISTING B.1.01 General Information This appendix will assist you in identifying the assemblies and parts of the units. Once you have used Module Two (Failure Analysis) to find a defective part, you can locate the part number in this section. This appendix is cross-referenced to Section Three (Maintenance) to assist you in servicing the printers.
Page 311: B.1.02 Definitions Of Terms
Page: 174 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.1.02 Definitions of Terms RSPL Okidata recommends that this part/assembly be on hand for servicing. Consumable A consumable is a supply item which has a specified life and needs to be replaced periodically. It is purchased and installed by the end user.
Page 312 ordering to avoid confusion and incorrect parts orders. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 313: B.1.03 Parts Ordering Information
Page: 175 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.1.03 Parts Ordering Information Service Center Reference Guide All authorized Okidata Dealers may order spare parts and consumables for Okidata products. Orders are placed through Okidata's Logistics Department. When a technician has successfully completed a product certification course and the Dealer has become service authorized, an information package will be provided to the Dealer.
Page 314: B.2 Charts
Page: 176 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2 CHARTS Below is an index to the illustrated parts breakdown charts...
Page 315 Description Section Cabinet Assembly (1 of 2) B.2.01 Cabinet Assembly (2 of 2) B.2.02 Control Panel Assembly (Okifax 2200) B.2.03 Control Panel Assembly (Okifax 2400/2600) B.2.04 Printer Assembly (1 of 3) B.2.05 Printer Assembly (2 of 3) B.2.06 Printer Assembly (3 of 3) B.2.07 Base Assembly (1 of 2) B.2.08...
Page 316: Cabinet Assembly (1 Of 2)
Page: 177 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.01 Cabinet Assembly (1 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 319: Cabinet Assembly (2 Of 2)
Page: 178 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.02 Cabinet Assembly (2 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 321 Okidata P/N Description Comments Disassembly Oki-J P/N Refer to B.1.02 Procedure 53071801 Cover: IC Card RSPL 3.2.03 2PP4136-1008 P001 53071211 Cover: Side (Right) RSPL 3.2.03 1PP4136-1004 2200/2400 P011 53071201 Cover: Side (Right) RSPL 3.2.03 1PP4136-1004 2600 P001 57001401 Speaker RSPL 3.2.03 4YB3527-1025 P001...
Page 322: Control Panel Assembly (Okifax 2200)
Page: 179 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.03 Control Panel Assembly (Okifax 2200) Part numbers are subject to change. Refer to Section B.1.01 for finding current information...
Page 324 Okidata P/N Description Comments Refer Disassembly Oki-J P/N to B.1.02 Procedure 50105601 Panel: Control RSPL Inc. all 3.2.09 4YA4136-1002G2 (Assembly) 2200 items shown Cover: Expanded (B) Inc. in 1 3.2.09 2PP4014-4800P0 2200/2400 53071901 Cover: One-Touch RSPL Inc. in 1 3.2.09 3PB4014-4777P0 53072001 Sheet: One-Touch...
Page 325: Control Panel Assembly (Okifax 2400/2600)
Page: 180 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.04 Control Panel Assembly (Okifax 2400/2600) Part numbers are subject to change. Refer to Section B.1.01 for finding current information...
Page 327 Item Okidata P/N Description Comments Disassembly Oki-J P/N Refer to B.1.02 Procedure 50105611 Panel: Control RSPL Inc. all items 3.2.09 4YA4136-1002 (Assembly) 2400 shown G101 50105610 Panel: Control RSPL Inc. all items 3.2.09 4YA4136-1002 (Assembly) 2600 shown G001 Cover: Expanded (B) Inc.
Page 328: Printer Assembly (1 Of 3)
Page: 181 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.05 Printer Assembly (1 of 3) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 330 Item Okidata P/N Oki-J Description Comments Disassembly Refer to Procedure B.1.02 56116901 Kit: Image Drum Consumable 3.2.01 4YA4083-6300G020 52106701 Kit: Toner Cartridge Consumable 3.2.01 4YA4083-6400G020 53069002 Cover: Face Down RSPL Inc. 45 - 3.2.01 , 2PA4083-6160G002 Stacker (Assembly) 3.2.21 Cover: Stacker Inc.
Page 332: Printer Assembly (2 Of 3)
Page: 182 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.06 Printer Assembly (2 of 3) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 334 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 51011001 Guide: Manual Feed RSPL 3.2.22 2PA4083-613 Assembly 51010903 Strip: Anti-Static 3.2.22 4PB4083-318 2P003 53342801 Roller: Eject RSPL 3.2.22 2PA4083-612 Assembly 50217501 Unit: Fuser 120V RSPL 3.2.22 2YX4083-610 (Assembly) 56511302 Motor: Registration...
Page 335 51010701 Plate: Sensor (Inlet) RSPL 3.2.25 4PP4083-608 51010801 Plate: Sensor RSPL 3.2.25 4PP4083-608 (Outlet) 50405501 Sensor: Toner RSPL 3.2.25 4PP4083-608 53069101 Arm: Stacker Cover RSPL 3.2.25 4PP4083-619 Damper 51229401 Gear: Stacker Cover RSPL 3.2.25 4PB4083-619 Damper 51607402 Bearing RSPL 3.2.24 4PP4083-602 50219601 Assembly: Hopping...
Page 336: Printer Assembly (3 Of 3)
Page: 183 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.07 Printer Assembly (3 of 3) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 338 Item Okidata P/N Oki-J Description Comments Disassembly Refer to B.1.02 Procedure 51607402 Bearing RSPL 3.2.24 , 4PP4083-6022P2 3.2.25 53342601 Roller: Transfer RSPL 3.2.24 4YB4083-6040P1 51229001 Gear: Transfer Roller RSPL 3.2.24 4PP4083-6042P1 50406901 Roller: Pressure RSPL 3.2.24 3PB4122-1244P001 50926401 Spring: Pressure 3.2.24 4PP4122-1273P001 Roller Bias...
Page 339: Base Assembly (1 Of 2)
Page: 184 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.08 Base Assembly (1 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 341 Item Okidata P/N Oki-J Description Comments Disassembly Refer to B.1.02 Procedure 55073501 PCB: NCU-U RSPL 3.2.04 , 3.2.26 4YU3528-1017G00 55073401 PCB: Line-JU RSPL 3.2.04 4YU3528-1008G00 3.2.26 Screw 3.2.04 4PB4013-3102P00 3.2.26 50106701 Package: Shelf 3.2.04 2PP4122-1148P00 56511201 RSPL 3.2.27 3PB4076-5290P00 55075301 PCB: PCNT-250 RSPL 3.2.27...
Page 342 50219501 Assembly: Cassette RSPL Inc. 2 - 8 3.2.28 2PA4122-1313G00 Guide (Right) Guide: Cassette (R) Inc. in 46 3.2.28 1PP4122-1163P00 Lever: Cassette Lock Inc. in 45 46 3.2.28 4PP4122-1184P00 Spring: Lock Inc. in 45 46 3.2.28 4PP4122-1185P00 50806104 Rubber: Foot Inc.
Page 343: Base Assembly (2 Of 2)
Page: 185 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.09 Base Assembly (2 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 345 Item Okidata P/N Oki-J Description Comments Disassembly Refer to B.1.02 Procedure 53071301 Cover: Sub (R) RSPL 3.2.18 1PP4136-1005P001 51011401 Plate: Paper Supply RSPL 3.2.25 4PP4083-6082P1 Sensor 51011501 Plate: Cassette RSPL 3.2.25 3PP4083-6154P1 Sensor Cassette: Universal Inc. in 13 of p. B-8 3.2.28 1PP4122-1165P001 10 *...
Page 346 51710201 Insulator 3.2.28 2PB4122-1145P001 51710301 Insulator (S) 3.2.28 3PB4122-1271P001 50516501 Spacer 3.2.28 4PB4122-1245P001 56730001 Assembly: Contact RSPL 3.2.28 3PA4083-6090G1 56413401 Unit: Power Supply RSPL 3.2.28 4YB4049-1820P001 (120V) Screw 3.2.28 +P(SW+2W)4-8-HHC Screw 4PB4013-3102P002 Spring 3.2.28 4PP4083-6228P001 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 347: Scan Assembly (1 Of 2)
Page: 186 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.10 Scan Assembly (1 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 349 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 70027001 RS232 Interface Kit Option 4YA4135-1014G0 50219001 Base: Scanner (L) 2PP4122-1190P0 50218901 Base: Scanner (R) 2PP4122-1189P0 50806201 Stay: Document RSPL 3.2.02 3PP4122-1159P0 Guide Screw 3.2.02 4PP4083-2500P0 55075201 PCB: ME 250 2200 RSPL 3.2.08 4YA4134-1005G0...
Page 350 51013701 Guide: Paper (M) RSPL 3.2.13 1PP4122-1091P0 Cable: Ground 3.2.13 4PP3529-5115P0 50806501 Tie: Wire (Goes on RSPL 3.2.13 4LP-1466 Paper Guide M) 51013501 Guide: Paper (E) RSPL 3.2.14 1PP3527-5225P0 2200/2400 51013502 Guide: Paper (E) RSPL 3.2.14 1PP3527-5225P0 2600 50927701 Spring: Release RSPL 3.2.18 4PP4122-1290P1...
Page 351: Scan Assembly (2 Of 2)
Page: 187 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.11 Scan Assembly (2 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 353 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 51710701 Edge Saddle 3.2.19 4PB3527-5800P 55075901 N/A PCB: CB -250 2200 3.2.19 55076202 N/A PCB: DFCB-2 3.2.19 2400/2600 Screw 3.2.19 4PP4013-3102P 55076001 N/A PCB: MT-25 2200 3.2.19 55076102 N/A PCB: 3.2.19 DFCU/MCNT-350...
Page 354: Scan Unit (1 Of 3)
Page: 188 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.12 Scan Unit (1 of 3) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 356 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 50219301 Assembly: Scanner RSPL Inc. 33 37 39 3PA4122-1315 Frame G001 Plate: Ground (B) Inc. in 52 4PP4122-1117 P001 Frame: Scanner Inc. in 52 1PP4122-1106 P001 Plate: Ground (A) Inc.
Page 357 Gear: Z21 Inc. in 11 3.2.10 , 14 4PP4122-1099 P001 Washer: Inc. in 11 3.2.10 , 13 , 4PB4013-3501 Compression P003 50707201 Pad: Verification RSPL Not shown 3.2.14 4YB3522-1298 Stamp 2400/2600 P0001 50708412 Ink: Verification RSPL Not shown 3.2.14 4YB3512-1881 Stamp 2400/2600 50708301 Stamp: Verification...
Page 358: Scan Unit (2 Of 3)
Page: 189 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.13 Scan Unit (2 of 3) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 360 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 50407201 Roller: Sensor RSPL Inc. 2 - 5 45 3.2.13 2PA4122-1131 Assembly and 49 G001 Roller: Sensor Inc. in 1 3.2.13 2PB4122-1092 P001 Gear: Z21 Inc. in 1 3.2.13 4PP4122-1099 P001...
Page 361 Shaft: ADF Inc. in 18 3.2.13 3PP4122-1110 P001 Roller: ADF Feed Inc. in 18 3.2.13 4PB4122-1093 P001 Gear: (Z28) Inc. in 18 3.2.13 4PP3527-5029 P001 Clutch Inc. in 18 3.2.13 4YB4122-1152 P001 50218801 Release: Lower RSPL 3.2.13 4PB4122-1112 P001 50407401 Sensor: PC2 RSPL Inc.
Page 362: Scan Unit (3 Of 3)
Page: 190 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.14 Scan Unit (3 of 3) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 364 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 50407502 Sensor: Image (B4) RSPL Inc. 7 - 10 46 3.2.15 3YX4122-1137G0 Assembly 2200/2400 and 48 50407501 Sensor: Image (A3) RSPL Inc. 7 - 10 46 3.2.15 3YX4122-1137G0 Assembly 2600 and 48 Sensor: B4...
Page 365 Gear: Idle (Z30) Inc. in 26 3.2.16 4PP4122-1102P0 Gear: (Z19/52) Inc. in 26 3.2.16 4PP4122-1103P0 56511501 Motor: Scan 2200 RSPL Inc. in 26 3.2.16 4YB4122-1182P0 56511401 Motor: Scan RSPL Inc. in 26 3.2.16 4YB4122-1181P0 2400/2600 N/A + P (SW) 3-6 Screw Inc.
Page 366: B.2.15 Upper Paper Guide Assembly (1 Of 2)
Page: 191 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.15 Upper Paper Guide Assembly (1 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 368 Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 50406201 Roller: Pinch 3.2.10 4PP3529-5045P0 51113001 Shaft: Pinch Roller 3.2.10 4PP4122-1118P0 50926601 Spring: Upper Pinch 3.2.10 4PP4122-1089P0 50926602 Spring: Upper Pinch 3.2.10 4PP4122-1089P0 51710601 Bracket: Pinch Roller 3.2.10 4PP4122-1120P0 53339201 Plate: Support...
Page 369 50926001 Spring: ADF RSPL 3.2.10 4PP3527-5244P0 53061201 Arm: ADF Tension RSPL 3.2.10 4PP3527-5221P1 50218701 Release : Upper RSPL 3.2.10 4PB4122-1105P0 51304801 Brush: Static (B) 3.2.10 4PB4122-1162P0 53339801 Plate: ADF Back-Up RSPL 3.2.10 4PP3527-5153P1 51304701 Brush: Static (A) 3.2.10 4PB4122-1161P0 Screw 3.2.10 4PB4013-3102P0 50219201...
Page 370: B.2.16 Upper Paper Guide Assembly (2 Of 2)
Page: 192 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.16 Upper Paper Guide Assembly (2 of 2) Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 372 Item Okidata P/N Oki-J Description Comments Refer to Disassembly B.1.02 Procedure 51013601 Guide: Paper Upper RSPL 3.2.09 1PP4122-1090P00 50926101 Spring: Sub Pinch RSPL 3.2.10 4PP3527-5165P00 53339501 Rubber: ADF RSPL Inc. 19 - 21 3.2.11 4PA3527-5266G1 Separation (Assembly) Rubber: Separation Inc. in 18 3.2.11 4PP3527-5249P00 N/A NITTO NO.
Page 373: B.2.17 Cables
Page: 193 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.17 Cables Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 375 Item Okidata Description Comments Disassembly Oki-J P/N Refer to B.1.02 Procedure 70027001 RS232 Interface Kit Option Inc. 4A 4YA4135-1014 G002 Cable: SIO-DFCU Option Inc. in 4 4YS3512-1688P 56629601 Cable: 4YS4111-2926P NCU-MT25/DFCU (15 Pin) 57001401 Speaker RSPL 3.2.03 4YB3527-1025P 56629701 C a b l e : F l a t 4YS4111-4378P (PT25-MT25) 2200...
Page 376 56630301 Cable: Hook Switch 3.2.05 4YS4111-2932P MT-25/DFCU 56629501 Cable: Modular-NCU / 4YS4011-4565P 56630501 Cable: 4YS4111-2918P CIS-MT25/DFCU 56630602 Cable: PC1 4YS4111-2917P Size-MT25/DFCU 2200/2400 56630601 Cable: PC1 4YS4111-2917P Size-MT25/DFCU 2600 56630701 Cable: 4YS4111-2923P OPE-MT25/DFCU 56630801 Cable: NCU-Line (8 4YS4111-2920P Pin) 56630901 Cable: Hook Switch 4YS4111-2921P NCU / TEL 56631001...
Page 377: B.2.18 Options
Page: 194 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.18 Options Part numbers are subject to change. Refer to Section B.1.01 for finding current information. Item Okidata P/N Description Comments Disassembly Oki-J P/N Refer to B.1.02 Procedure 70026101 Tray: Option 3.2.01 4YA4083-6250G Legal/Universal...
Page 378 70027001 RS232 Interface Kit Option 4YA4135-1014G Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 379: B.2.19 Packaging
Page: 195 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.19 Packaging Part numbers are subject to change. Refer to Section B.1.01 for finding current information.
Page 381 Item Okidata P/N Description Comments Disassembly Oki-J P/N Refer to B.1.02 Procedure 53557121 Sheet: Top 4PP4025-3117P2 Cardboard 53574701 Tray: Accessory 3PP4136-1031P0 53574801 Foam: Packaging Inc. 4 5 6 and 7 3PP4136-1030P0 (Set) Left Cushion Top Right Cushion Top Left Cushion Bottom Right Cushion Bottom Poly Bag...
Page 382: B.2.20 Consumables
Page: 196 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.20 Consumables Part numbers are subject to change. Refer to Section B.1.01 for finding current information. Item Okidata P/N Description Comments Refer to Disassembly Oki-J P/N B.1.02 Procedure 52106701 N/A Kit: Toner Cartridge Consumable 3.2.01...
Page 383 56116901 N/A Kit: Image Drum Consumable 3.2.01 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 384: B.2.21 Documentation
Page: 197 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts B.2.21 Documentation Part numbers are subject to change. Refer to Section B.1.01 for finding current information * To order Marketing Literature, complete an Okidata Marketing Literature Order Form. Fax the completed form to Okidata Marketing Communications.
Page 385 58302502 Installation Document I n st r uct i o ns f o r Second Tray N/A N/A Oki f ax Marketi n g Document Literature N/A N/A Okidata Marketing Document Li t erature Order Form Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 386 Page: 198 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts Illustrated Parts Listing for the Okifax UST-500 Optional Second Paper Tray Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 387 Page: 199 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts...
Page 389 Page: 200 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts...
Page 390 UST500 Sec.1 OKI Parts Number ODA Parts Description Number 2PP4122-1196P001 51015301 PLATE, Upper 4PB4013-3102P002 Screw 1PP4122-1242P001 53072401 COVER, Rear (ST) 3PB4012-2902P001 PLATE, Model Name 1PA4122-1252G00 MECHANICAL UNIT 2PP4122-1208P001 Part of # 8 GUIDE, Sheet (I) 1PP4122-1211P001 Part of # 8 GUIDE, SHEET (O) 2PA4122-1251G00 51014801...
Page 391 Page: 201 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts...
Page 392 UST500 Sec.2 OKI Parts Number ODA Parts Description Number 3PA4122-1258G00 Part of # 49 SUB ROLLER ASSEMBLY 4PB4013-3501P002 Part of # 49 WASHER, Compression 4PP3512-3729P001 Part of # 49 GEAR, Roller Feed Top 4PP3526-3071P001 Part of # 49 BUSHING, Metal 4PB4122-1201P001 Part of # 49 SUB ROLLER (ST)
Page 393 2YU5003-6144G00 55076301 PCB (DTRY) 4PP4122-1217P001 51500301 BLOCK, Pull 4PP4122-1194P005 50927305 SPRING, Cassette Lock 4PP4122-1184P001 Part of # 37 LEVER, Cassette Lock & 44 4PP4122-1228P001 Part of # 37 SPRING, Lock & 44 4PP4122-1236P002 50927402 SPRING, Release 4PP4122-1195P001 Part of # 37 BRACKET, Release 1PP4122-1193P001 Part of # 37...
Page 394 3PA4122-1257G00 50407801 HOPPING ROLLER ASSEMBLY 2PA4122-1253G00 BEAM, MAIN ASSEMBLY 4PP4122-1309P001 Part of # 37 PLATE, Earth (LI) & 44 4PP4122-1308P001 Part of # 48 PLATE, Earth (HP) 4YS4011-1714P001 Part of # 48 Cable, Earth Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 395 Page: 202 Service Guide OF2200/2400/2600 Chapter B Illustrated Parts UST500...
Page 396 Sec.3 OKI Parts Number ODA Parts Description Number 2PP4122-1212P001 Part of PLATE, Sheet Cassette 4PP4122-1219P001 Part of CORK, Friction Cassette 3PP4122-1210P001 Part of GUIDE (T) Cassette 3PP4122-1232P001 Part of LEVEL, Lock (2) Cassette 4PP4122-1229G00 Part of LEVER, Lock (1) Cassette 4PB4013-3501P003 Part of WASHER, Compression...
Page 398 Page: 203 Service Guide OF2200/2400/2600 Chapter C Installation of Options C.1 OVERVIEW C.1.01 Options Available · Memory Expansion Cards: - 1 MByte: 70025301 (64 pages) - 2 MByte: 70026801 (128 pages) - 3 MByte: 70026901 (256 pages) · UST-500 (Second Paper Cassette Unit): 70026601 (Okifax 2200/2400/2600) ·...
Page 399: C.2 Option Installation
Page: 204 Service Guide OF2200/2400/2600 Chapter C Installation of Options C.2 OPTION INSTALLATION C.2.01 Memory Expansion Cards 1. Turn the AC power switch OFF and detach the AC power cord. 2. Raise the document table. 3. Open the memory card cover by pulling it toward you. 4.
Page 401: C.2.02 Ust-500 (Second Paper Cassette Unit)
Page: 205 Service Guide OF2200/2400/2600 Chapter C Installation of Options C.2.02 UST-500 (Second Paper Cassette Unit) The second cassette unit comes with a second front cover and facsimile connector cable. 1. Turn the facsimile power switch OFF and remove the AC power cord. NOTE: Unplug the AC power cord from the power outlet first and then from the facsimile.
Page 402 4. Install the second front cover on the facsimile by inserting the hooks of the second front cover into the slots of the facsimile. Make sure that you push the second front cover onto the facsimile until you hear the "click".
Page 403 the facsimile transceiver main unit. CAUTION: The Okifax facsimile unit weighs approximately 36 pounds. To avoid injury, request assistance before attempting to lift the facsimile machine. 8. Remove the shipping tape from the second paper cassette unit. 9. Remove the connector cover on the right side of the facsimile and connect the facsimile to the second paper cassette unit with the connection cable included with the UST-500.
Page 404 TO REMOVE THE CONNECTOR COVER (a) Insert the tip of a flat screwdriver (-) between the connector cover and the facsimile cover, and gently pry the linking portions of the connector cover on the right and left in order to expose the connector. CAUTION: Do not rotate the screwdriver, since this can cause the cover to become scratched.
Page 405 Connect the power cord to the power outlet and the facsimile, and turn the facsimile power switch ON. Your second paper cassette unit is now ready to be used. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material.
Page 406: Ust-500 Testing Procedure
Page: 206 Service Guide OF2200/2400/2600 Chapter C Installation of Options UST-500 Testing Procedure In order to test the UST-500 for proper operation, you should make a copy of a document. Okifax 2200 When making a copy of a document, the Okifax 2200 automatically selects the paper tray with the correct size paper installed.
Page 407: C.2.03 Sio-45 Board (Rs232-C Interface)
Page: 207 Service Guide OF2200/2400/2600 Chapter C Installation of Options C.2.03 SIO-45 Board (RS232-C Interface) 1. Turn the AC power switch OFF and detach the AC power cord. 2. Disconnect the line cord and the telephone cord from the two modular jacks of the fax. 3.
Page 408 7. Secure the SIO-45 board assembly into the two slit sections of the base plate. 8. Connect the attached cable into the connector CN4 on the DFCU (MCNT) board. 9. Assemble to right side cover, the rear cover, and the cords by following these directions in reverse order.
Page 409: C.3 Telephone Answering Device (Tad) Interface
Page: 208 Service Guide OF2200/2400/2600 Chapter C Installation of Options C.3 TELEPHONE ANSWERING DEVICE (TAD) INTERFACE (Pertains to the Okifax 2200 only) C.3.01 General Information The Telephone Answering Device (TAD) Interface allows Okifax units to share the same phone line with a telephone answering device.
Page 410 If the remote caller decides to leave a voice message, the Okifax will attempt automatic reception when the caller had completed their message. This gives the remote caller an opportunity to manually send a fax whether or not they decide to leave a voice message. NOTE: If the answering device does not answer an incoming call within 35 seconds, the Okifax unit will begin automatic reception.
